Round Hexagonal Octagonal Carbon Steel Fin Tube Clamps SGCC FB Galvanized Surface

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	SGCC FB

Payment & Shipping Terms:

Minimum Order Quantity:	3000 sets
Price:	0.8-2.0 USD
Packaging Details:	Carton
Delivery Time:	5-10 days
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets/day

Contact Now Chat Now

Detailed Product Description

Product:	Fin Tube Support --- Fin Tube Clamps / Pipe Hoop	Material:	Carbon Steel
Grade:	SGCC FB	Surface Treat:	Galvanized
Shape:	Round / Hexagonal / Octagonal	Size:	O.D. 60.3×I.D. 27×Width 30×THK.0.8 MM
Fin Type:	L / KL / G Embedded Fin Tubes, Extruded Fin Tubes	Packing:	Carton
Highlight:	Octagonal fin tube clamp , Carbon Steel fin tube clamp , SGCC Fin Tube Clamps

Round Hexagonal Octagonal Carbon Steel Fin Tube Clamps SGCC FB Galvanized Surface

Product Specifications

Attribute	Value
Product	Fin Tube Support — Fin Tube Clamps / Pipe Hoop
Material	Carbon Steel
Grade	SGCC FB
Surface Treatment	Galvanized
Shape	Round / Hexagonal / Octagonal
Size	O.D. 60.3×I.D. 27×Width 30×THK.0.8 MM
Fin Type	L / KL / G Embedded Fin Tubes, Extruded Fin Tubes
Packing	Carton

Product Overview

Fin tube clamps, also known as fin tube bands, pipe hoops, or tube straps, are mechanical fasteners designed to secure finned tubes in heat exchangers, condensers, and other thermal systems. These carbon steel clamps with SGCC FB grade and galvanized surface treatment provide essential structural support, prevent vibration, and ensure proper tube alignment.

Compatible Fin Tube Types

Suitable for aluminum fin tubes, extruded fin tubes, L/LL/KL fin tubes, and most commonly for G-base fin tubes.

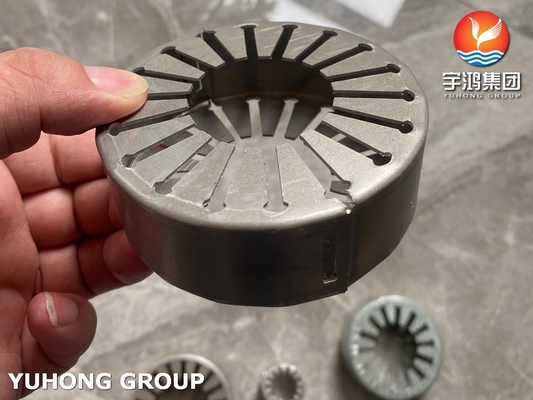

Carbon steel fin tube clamps showing round and hexagonal shapes

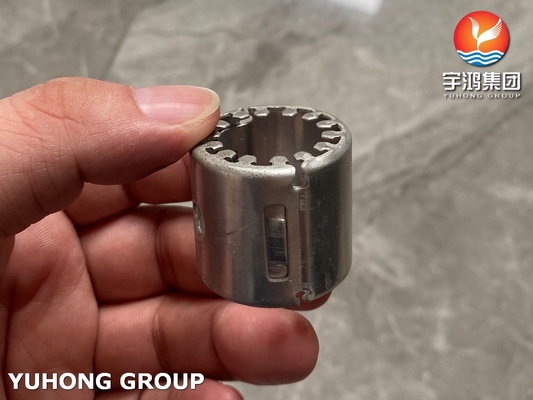

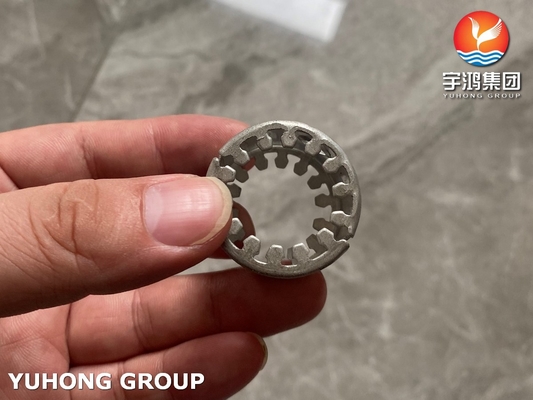

Close-up view of galvanized fin tube clamps

Standard Specifications

Item	Fin Tube Applicable Specifications	Pipe Hoop Applicable Specifications
1	Base Tube O.D. <18MM; Fin Tube O.D.≈30MM	33×18×30×0.8MM
2	Base Tube O.D. <17MM; Fin Tube O.D.≈39MM	43×17×30×0.8MM
3	Base Tube O.D. <27MM; Fin Tube O.D.≈51MM	56.5×27×30×0.8MM
4	Base Tube O.D. <27MM; Fin Tube O.D.≈53MM	58.7×27×30×0.8MM
5	Base Tube O.D. <27MM; Fin Tube O.D.≈55MM	60.3×27×30×0.8MM
6	Base Tube O.D. <27MM; Fin Tube O.D.≈57MM	63.5×27×30×0.8MM
7	Base Tube O.D. <32MM; Fin Tube O.D.≈59MM	65×32×30×0.8MM
8	Base Tube O.D. <27MM; Fin Tube O.D.≈60MM	66.5×27×30×0.8MM
9	Base Tube O.D. <34MM; Fin Tube O.D.≈63MM	69.5×34×30×0.8MM
10	Base Tube O.D. <42MM; Fin Tube O.D.≈70MM	72×42×30×0.8MM

Key Advantages

Secure Attachment: Ensures tubes remain firmly in place, preventing movement or misalignment
Vibration Reduction: Minimizes wear and tear caused by vibrations, extending system lifespan
Easy Installation: Designed for quick assembly, reducing maintenance downtime

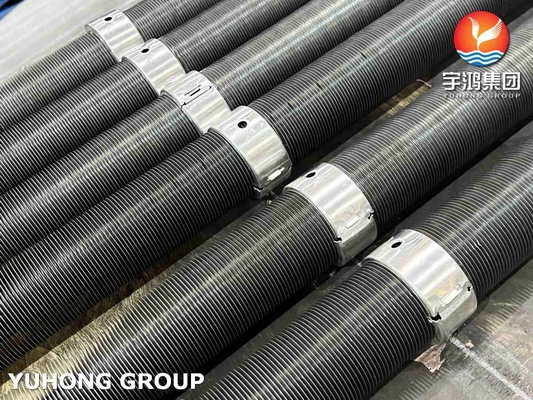

Fin tube clamps installed in an industrial heat exchanger system

Installation Guidelines

Proper sizing is critical for a tight fit without damaging fins or tubes
Install at regular intervals along tube length for uniform support
Select appropriate material for high-temperature or corrosive environments

Industrial Applications

Fin tube clamps are essential components in power generation, HVAC, refrigeration, and chemical processing industries. They are widely used in air-cooled heat exchangers, condensers, and other systems utilizing finned tubes.

Fin tube clamps in use within a large-scale industrial facility
