| Brand Name: | YUHONG |
| Model Number: | SGCC FB |
| MOQ: | 3000 sets |
| Price: | 0.8-2.0 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets/day |
| Attribute | Value |
|---|---|
| Product | Fin Tube Support — Pipe Hoop |
| Material | Carbon Steel |
| Grade | SGCC FB |
| Size | O.D. 60.3×I.D. 27×Width 30×THK.0.8 MM |
| Surface Treatment | Galvanized |
| Shape | Round / Hexagonal / Octagonal |
| Fin Type | L / KL / G Embedded Fin Tubes, Extruded Fin Tubes |
| Packing | Carton |

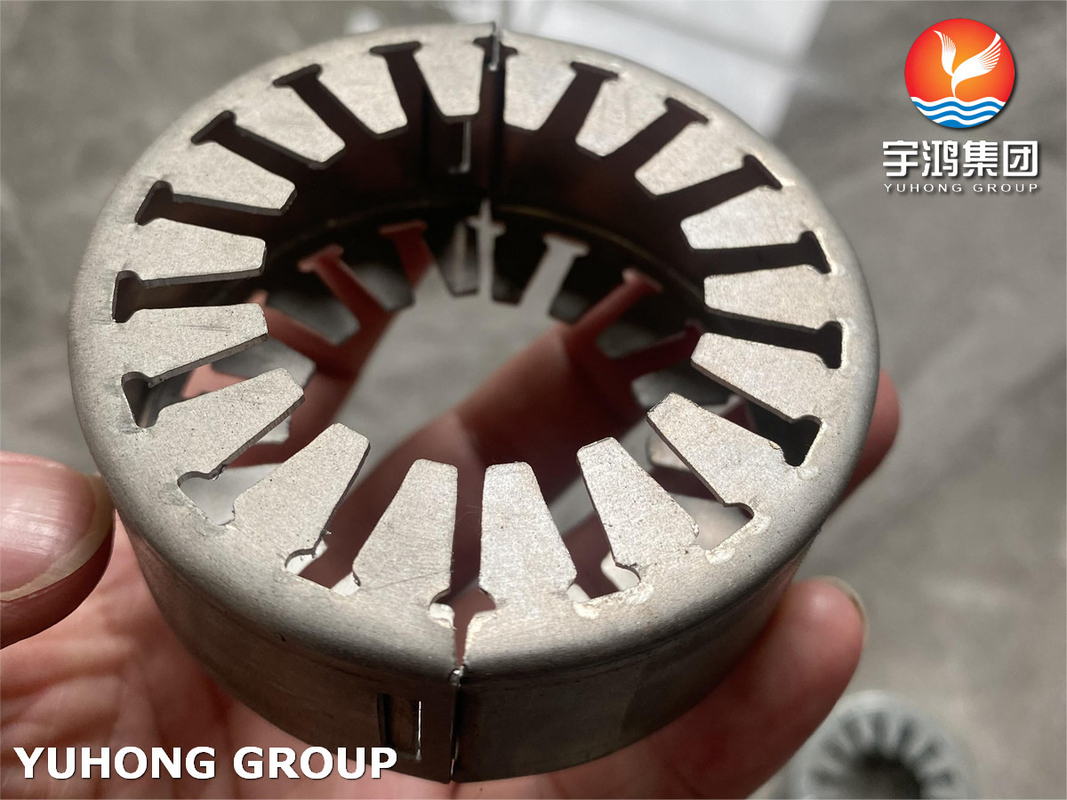

The isolation ring (pipe hoop) is designed for aluminum fin tubes, extruded fin tubes, L/LL/KL fin tubes, and most commonly for G-base fin tubes. These components are essential for maintaining stability and performance in heat transfer systems by ensuring efficient heat exchange and reducing the risk of damage.
Materials: Aluminum, Galvanized carbon steel, Stainless steel

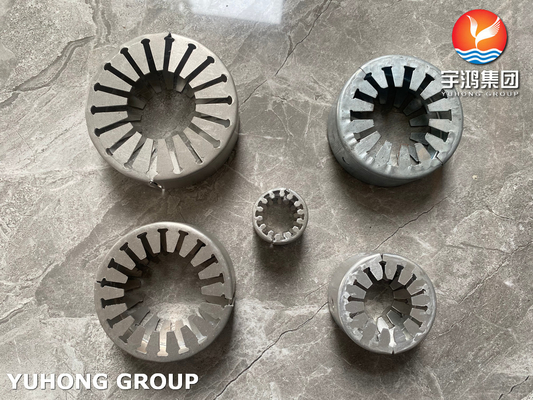

Shapes: Round, Hexagonal, Octagonal
| Item | Fin Tube Applicable Specifications | Pipe Hoop Applicable Specifications |
|---|---|---|
| 1 | Base Tube O.D. <18MM; Fin Tube O.D.≈30MM | 33×18×30×0.8MM |
| 2 | Base Tube O.D. <17MM; Fin Tube O.D.≈39MM | 43×17×30×0.8MM |
| 3 | Base Tube O.D. <27MM; Fin Tube O.D.≈51MM | 56.5×27×30×0.8MM |
| 4 | Base Tube O.D. <27MM; Fin Tube O.D.≈53MM | 58.7×27×30×0.8MM |
| 5 | Base Tube O.D. <27MM; Fin Tube O.D.≈55MM | 60.3×27×30×0.8MM |
| 6 | Base Tube O.D. <27MM; Fin Tube O.D.≈57MM | 63.5×27×30×0.8MM |
| 7 | Base Tube O.D. <32MM; Fin Tube O.D.≈59MM | 65×32×30×0.8MM |
| 8 | Base Tube O.D. <27MM; Fin Tube O.D.≈60MM | 66.5×27×30×0.8MM |
| 9 | Base Tube O.D. <34MM; Fin Tube O.D.≈63MM | 69.5×34×30×0.8MM |
| 10 | Base Tube O.D. <42MM; Fin Tube O.D.≈70MM | 72×42×30×0.8MM |
