| Brand Name: | Yuhong |
| Model Number: | TP304,TP316L |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |

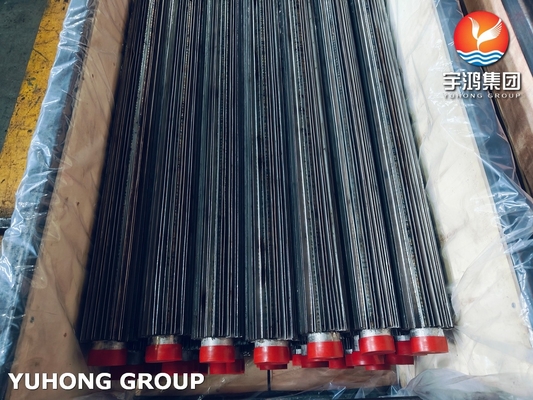

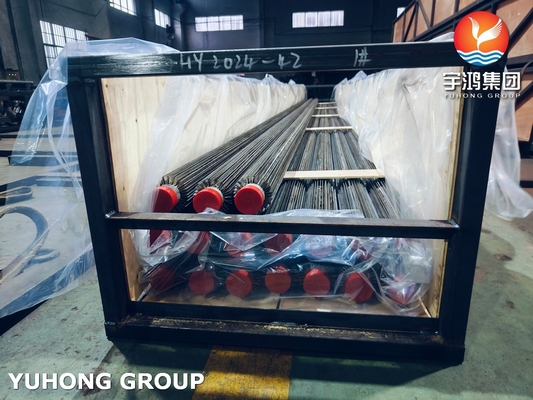

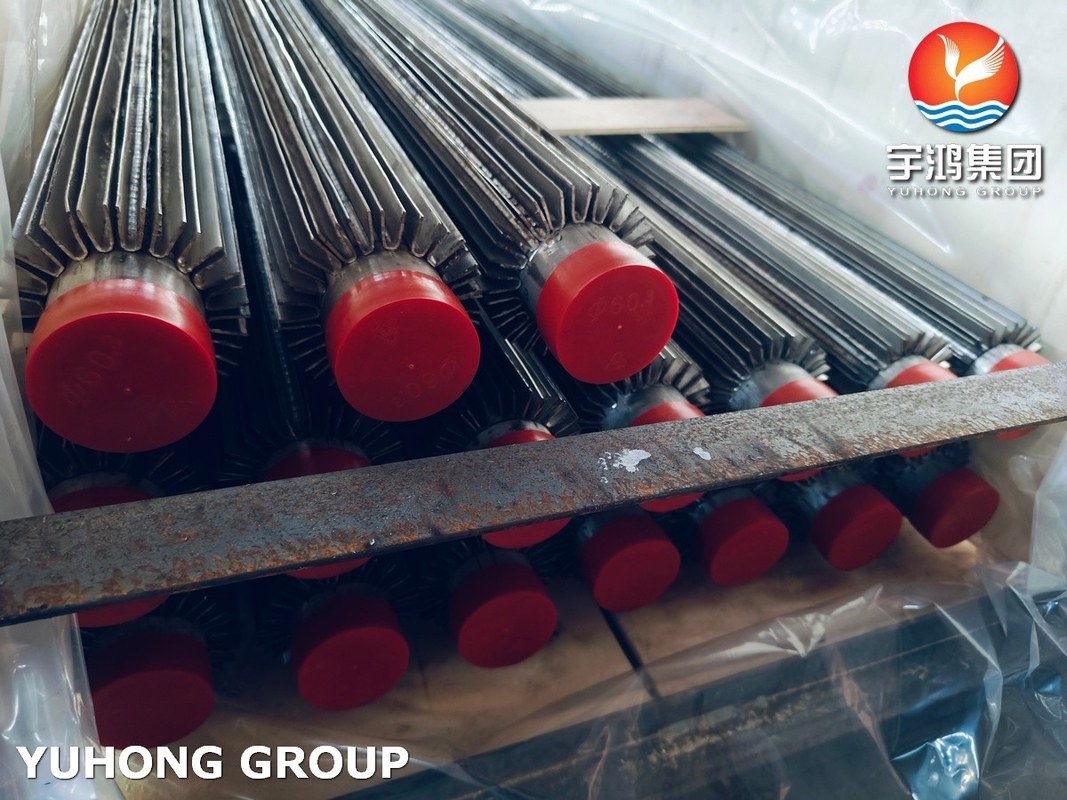

TP316L ASTM A213 Longitudinal Finned Pipe with SS316L Fins designed specifically for oil cooler applications, offering superior heat transfer efficiency and corrosion resistance in demanding environments.
| Attribute | Value |
|---|---|
| Base Tube Material | TP304, TP316L |
| Fin Material | SS304, SS316L |
| Fin Thickness | 1.23mm |
| Fin Connection | Welding |
| Fin Height | 15.875mm |
| Application | Furnace, Oil and Gas |
| Property | Base Tube (ASTM A213 TP316L) | Fin Material (SS316L) |
|---|---|---|
| Outer Diameter (OD) | 15.88 mm - 50.8 mm | Customizable |
| Wall Thickness | 1.5 mm - 4.0 mm | - |
| Fin Thickness | - | 1.5 mm - 3.5 mm |
| Fin Height | - | 10 mm - 40 mm |
| Fin Attachment | Welded or Mechanically Bonded | |
| Element | ASTM A213 TP316L (Base Tube) | SS316L (Fin Material) |
|---|---|---|
| Carbon (C) | ≤ 0.03% | ≤ 0.03% |
| Manganese (Mn) | 2.00% (max) | 2.00% (max) |
| Phosphorus (P) | ≤ 0.045% | ≤ 0.045% |
| Sulfur (S) | ≤ 0.030% | ≤ 0.030% |
| Chromium (Cr) | 16.00 - 18.00% | 16.00 - 18.00% |
| Nickel (Ni) | 10.00 - 14.00% | 10.00 - 14.00% |
| Molybdenum (Mo) | 2.00 - 3.00% | 2.00 - 3.00% |
