| Brand Name: | YUHONG |
| Model Number: | L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube |
| MOQ: | 1 PC |
| Price: | 1 - 10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Tons/Month |
| Base Tube Material | TP304 |
|---|---|
| Base Tube Standard | ASTM A249, ASME SA249 |
| Type | Wound, L type, LL Type, KL Type |
| Application | Air cooler, Cooling Tower, Heat Exchanger, Condenser |
| Fin type | L Type Fin Tube, LL Type Fin Tube, KLM Fin Tube |
| Fin Material | Aluminum, Copper, Stainless Steel, Carbon Steel |
Grade TP304 is a widely used austenitic stainless steel known for its excellent corrosion resistance, formability, and weldability. As part of the 300 series of stainless steels, its composition of chromium and nickel provides outstanding performance characteristics.

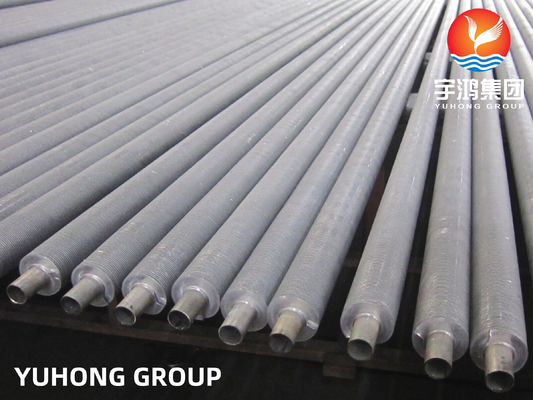

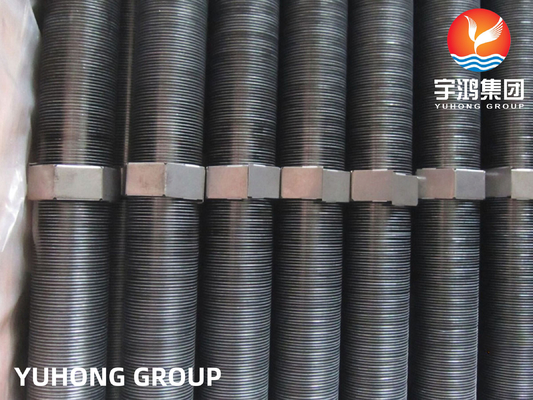

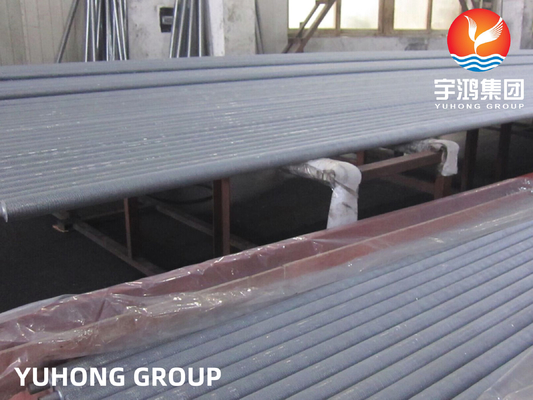

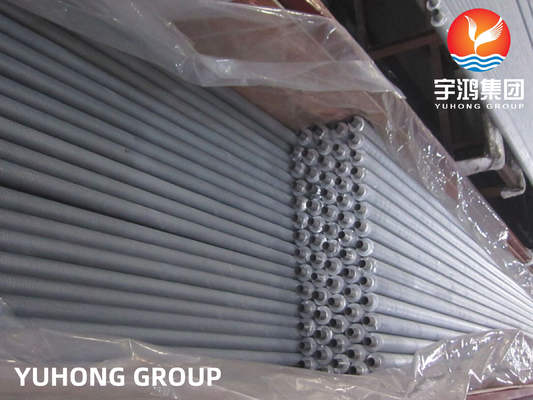

The Wound L Type Fin Tube ASTM A249 TP304 combines Grade TP304 stainless steel tubing with efficient L type fins for superior heat transfer in demanding applications.
| Type | Description | Base tube O.D. (mm) | Fin pitch | Fin height | Fin thick |
|---|---|---|---|---|---|
| Wound | L / KL / LL Type Fin Tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| Grade | Cr | Ni | C | Mn | P | S | Si | N |
|---|---|---|---|---|---|---|---|---|
| SA179 | 18.0-20.0% | 8.0-10.5% | ≤ 0.08% | ≤ 2.00% | ≤ 0.045% | ≤ 0.030% | ≤ 0.75% | ≤ 0.10% |
| Tensile Strength | 515 MPa (75,000 psi) minimum |
|---|---|
| Yield Strength | 205 MPa (30,000 psi) minimum |
| Elongation | 40% minimum in 50 mm |
| Hardness | ≤ 90 HRB |
Heat Exchangers:
Air Coolers:
Food and Beverage Industry:
