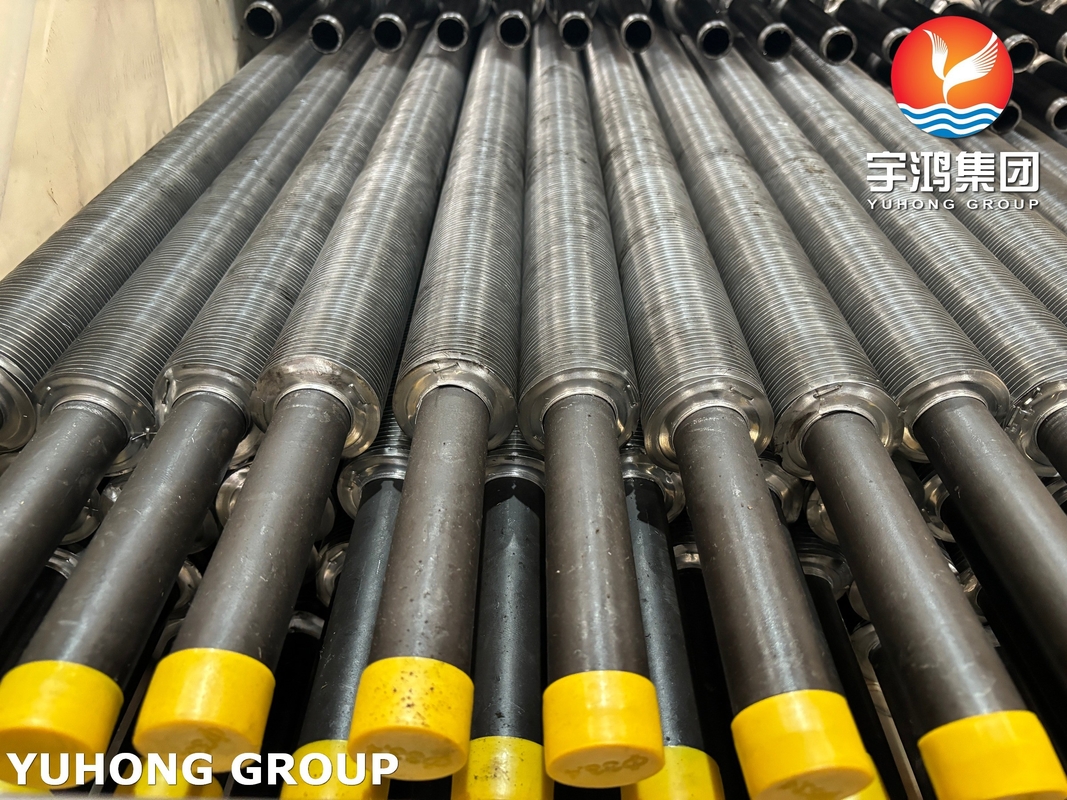

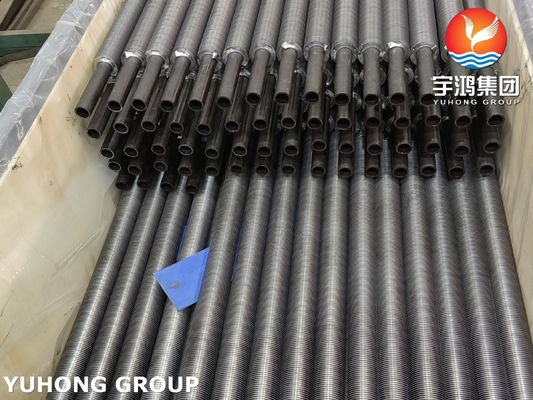

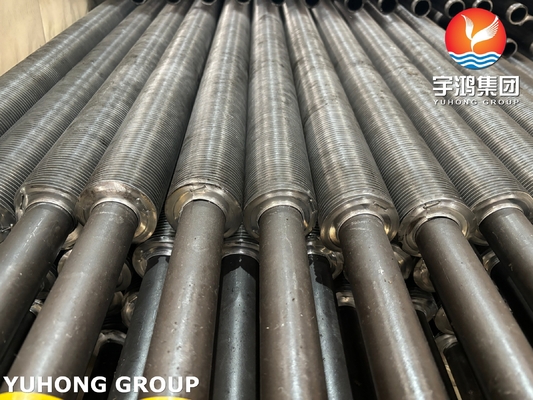

HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM

Product Details:

Place of Origin:	China
Brand Name:	Yuhong
Certification:	DNV, BV, PED, LR, ABS, TS, CCS
Model Number:	ASTM A179

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7-45DAYS
Payment Terms:	L/C, T/T

Contact Now Chat Now

Detailed Product Description

Material:	A179	Fin Material:	Al1060, Al1100
Fin Type:	G Type, Embedded	Fin Tube Test:	HT/ET
Fin Thk:	0.4mm	FPI:	9-13
Highlight:	HVAC stainless steel finned tube , ODM stainless steel finned tube , HVAC tube fins

HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM

Product Specifications

Attribute	Value
Material	A179
Fin Material	Al1060, Al1100
Fin Type	G Type, Embedded
Fin tube test	HT/ET
Fin thk	0.4mm
FPI	9-13

Key Features

Base Tube Material: ASTM A179 Carbon Steel, offering excellent thermal conductivity and mechanical properties.
Fin Material: AL1060 Aluminum, known for its high thermal conductivity, lightweight, and corrosion resistance.
Fin Type: L-Type Wound Fins, mechanically wound for strong attachment and optimized heat transfer.
Application: Designed for HVAC systems, ensuring efficient heat exchange in air conditioning and ventilation applications.

Technical Specifications

Property	Base Tube (ASTM A179)	Fin (AL1060)
Outer Diameter (OD)	15.88 mm - 50.8 mm	Customizable based on design
Wall Thickness	1.5 mm - 4.0 mm	-
Fin Thickness	-	0.3 mm - 0.5 mm
Fin Pitch	-	3 - 5 fins per inch
Fin Attachment	Mechanically wound (L-type)

Chemical Composition

Element	ASTM A179 (Base Tube)	AL1060 (Fin)
Carbon (C)	0.06 - 0.18%	≤ 0.03%
Manganese (Mn)	0.27 - 0.63%	≤ 0.03%
Phosphorus (P)	≤ 0.035%	-
Sulfur (S)	≤ 0.035%	-
Aluminum (Al)	-	≥ 99.6%

Mechanical Properties

Property	ASTM A179 (Base Tube)	AL1060 (Fin)
Tensile Strength	≥ 325 MPa	60 - 100 MPa
Yield Strength	≥ 180 MPa	30 - 50 MPa
Elongation	≥ 35%	≥ 25%

Advantages

High Thermal Efficiency: AL1060 aluminum fins ensure excellent heat dissipation and energy transfer.
Corrosion Resistance: AL1060 fins resist oxidation in humid HVAC environments.
Durable Design: L-type wound fins provide robust mechanical attachment and durability under thermal cycling.
Lightweight: Aluminum fins reduce overall weight, improving installation and operational efficiency.

Applications

HVAC Systems: Heat exchangers for air conditioning and ventilation.
Refrigeration Units: Enhancing thermal performance in cooling systems.
Air Handling Units: Optimizing heat exchange for industrial and commercial applications.
