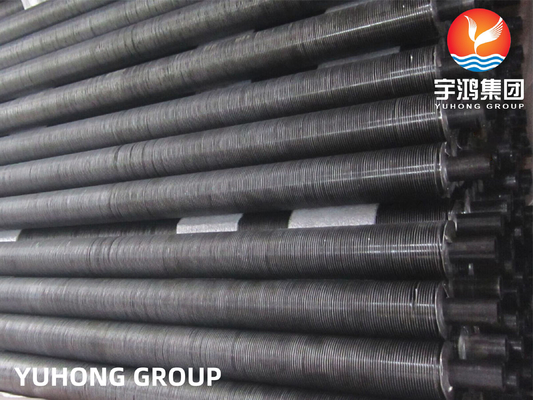

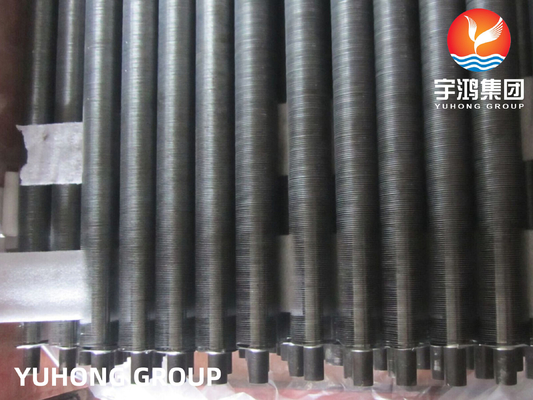

Monel 400 1/2" Copper Fin Tube Embedded ASME SB163 NO4400 LL Type

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Delivery Time:	5 - 90 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material:	Monel 400	Base Tube Standard:	ASME SB163 , ASTM B163
Type:	Wound, L Type, LL Type, KL Type	Application:	Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube	Fin Material:	Aluminum , Copper , Stainless Steel , Carbon Steel
Highlight:	Monel 1 2 copper fin tube , NO4400 1 2 copper fin tube , NO4400 embedded fin tube

Monel 400 1/2" Copper Fin Tube Embedded ASME SB163 NO4400 LL Type

Product Overview

Monel 400 ASME SB163 NO4400 Al 1060 Wound Fin Tube designed for air coolers and heat exchangers. This nickel-copper alloy (approximately 67% Ni and 23% Cu) offers exceptional corrosion resistance and mechanical properties across diverse environments.

Technical Specifications

Attribute	Value
Base Tube Material	Monel 400
Base Tube Standard	ASME SB163, ASTM B163
Type	Wound, L type, LL Type, KL Type
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	L Type Fin Tube, LL Type Fin Tube, KLM Fin Tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Dimensions

Type	Base tube O.D. (mm)	Fin pitch	Fin height	Fin thick
Wound	16-63	2.1-5	<17	~0.4

Chemical Composition

Grade	Ni	Cu	Fe	Mn	Si	C	S
Monel 400	63.0% min	28.0-34.0%	2.5% max	2.0% max	0.5% max	0.3% max	0.024% max

Mechanical Properties

Property	Value
Tensile Strength	550-700 MPa (80,000-100,000 psi)
Yield Strength	240-345 MPa (35,000-50,000 psi)
Elongation	35% minimum in 50 mm
Hardness	65-75 HRB (Rockwell Hardness B)

Key Features

Enhanced Heat Transfer: Aluminum fins significantly increase surface area for improved heat transfer rates
Corrosion Resistance: Outstanding performance in marine and chemical environments
Mechanical Bonding: Wound fin design ensures secure attachment for efficient heat transfer
High Thermal Conductivity: Aluminum fins optimize heat exchanger efficiency
Durability: Monel 400 base provides exceptional resistance to mechanical stress

Applications

Marine and Offshore: Heat exchangers for seawater cooling and desalination plants
Chemical Processing: Equipment for acidic/alkaline environments and refinery applications
Power Generation: Plant coolers where corrosion resistance is critical
Aerospace and Defense: Heat exchangers requiring high temperature and corrosion resistance
