Welded Wound L Embedded Fin Tube For Heat Exchangers AL1060 ASTM A249 TP304

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASTM A249

Payment & Shipping Terms:

Minimum Order Quantity:	Depend the size of finned tubes
Price:	1-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Delivery Time:	30-60 days
Payment Terms:	L/C, T/T
Supply Ability:	1000 tons/month

Contact Now Chat Now

Detailed Product Description

Type:	Wound L Fin Tubes	Base Tubes:	ASTM A249 TP304
Fins:	AL1060	Working Temperature:	230℃
Use:	Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc	Packing:	Ply-wooden Case With Iron Frame
Highlight:	Welded Wound embedded fin tube , AL1060 embedded fin tube , TP304 fin tubes for heat exchangers

Welded Wound L Embedded Fin Tube For Heat Exchangers AL1060 ASTM A249 TP304

Product Specifications

Attribute	Value
Type	Wound L Fin Tubes
Base tubes	ASTM A249 TP304
Fins	AL1060
Working temperature	230℃
Use	Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air cooler, etc
Packing	Ply-wooden Case With Iron Frame

Product Description

ASTM A249 covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from austenitic steels with various grades intended for use as boiler, superheater, heat exchanger, or condenser tubes.

ASTM A249 TP304 tubes are essential for applications requiring excellent corrosion resistance and high-temperature strength. Their composition and mechanical properties make them suitable for critical components in boilers, superheaters, heat exchangers, and condensers. The material's hygienic properties also make it ideal for use in the food, beverage, and pharmaceutical industries.

Chemical Composition (%) max

Grade	C	Mn	P	S	Si	Cr	Ni
TP304	0.08	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
TP304	75ksi (515 MPa)	30ksi (205 MPa)	35%

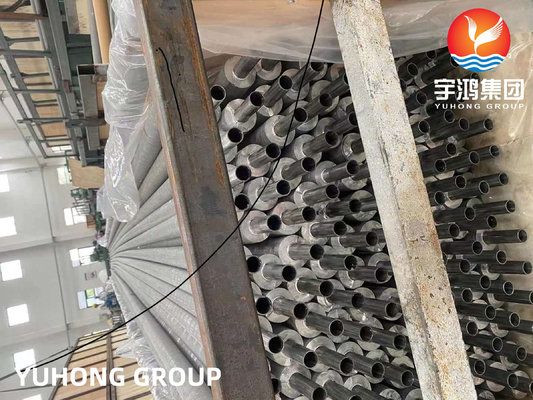

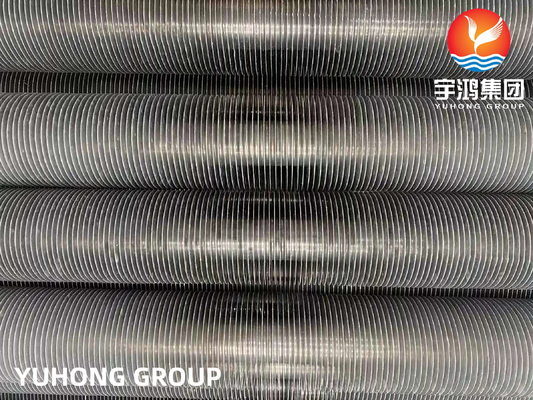

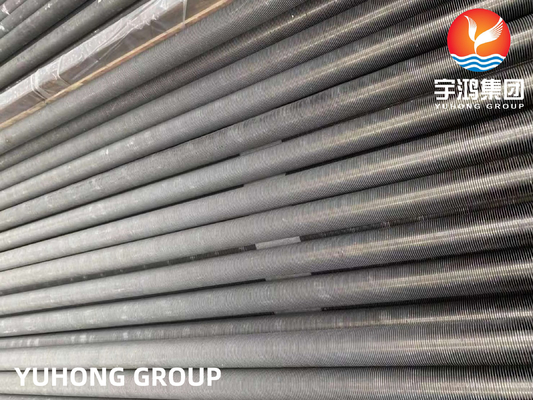

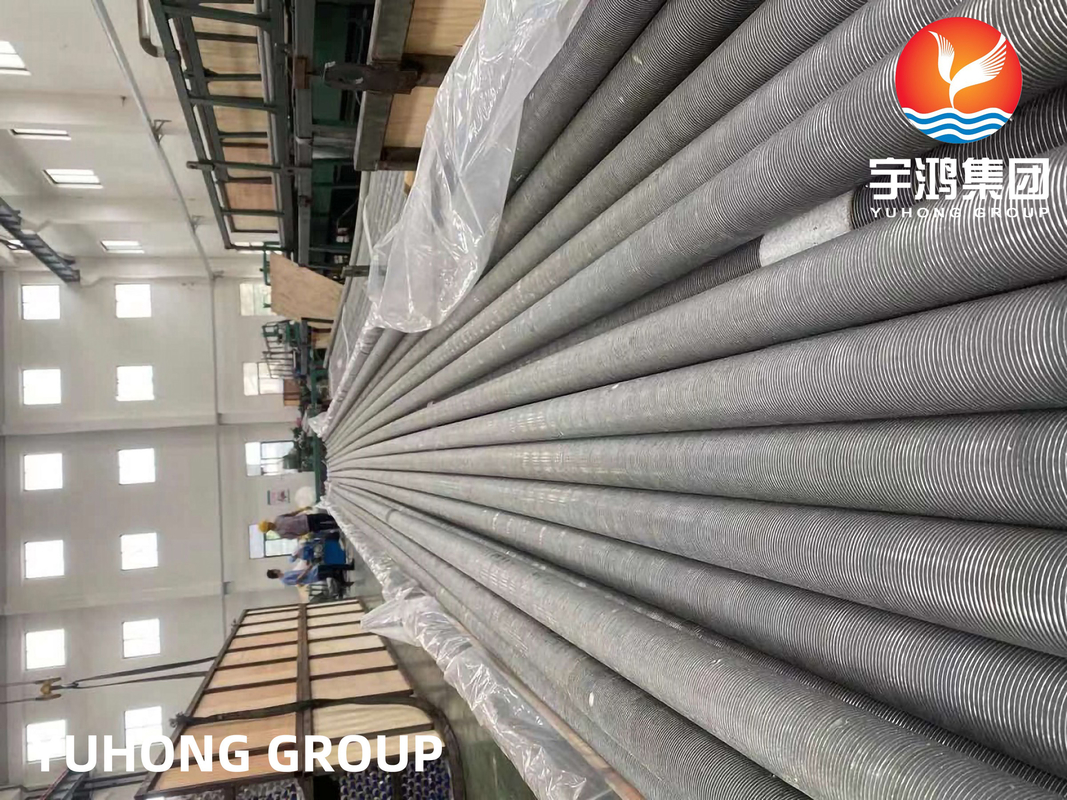

Wound fin tubes are a type of heat exchanger tube that features fins wrapped around the outer surface of the tube. The fins are typically made from materials like aluminum or copper and are wound in a helical or spiral pattern. This design increases the surface area of the tube, enhancing its ability to transfer heat between the fluid inside the tube and the surrounding environment.

Available Materials

Base tubes: carbon steel, copper, alloy, stainless steel
Fins: copper, aluminum 1060/1070, aluminum alloy 6063/6061

Categories of Wound Finned Tubes

L-fin tubes
LL-fin tubes
KL-fin tubes

Key Advantages

Trapezoidal section formed by rolling of L-shaped finned tube matches heat flow density distribution
Eliminates contact thermal resistance caused by gaps between fins
Compact design allows for more efficient heat exchanger configurations
Welded stainless steel base tubes provide robust construction resistant to mechanical damage

Applications

Wound L-type fin tubes are used in heat exchangers for air cooling or heating fluids such as air, water, oil, or gas. They are commonly found in industries such as oil & gas, power generation, marine, and HVAC&R.

Diesel Charge Air Coolers / Oil Coolers / Hydrogen Coolers
Waste Heat Recovery
Driers
Air Conditioning / Air Heaters
Generator Coolers
Steam Condensers

Wound L-fin tubes are crucial components in various heat exchange applications, offering enhanced thermal performance and durability. The L-shaped fin design provides a larger surface area, significantly improving heat transfer efficiency. Their design and material selection are tailored to meet specific operational requirements, making them indispensable in industries ranging from power generation to chemical processing.
