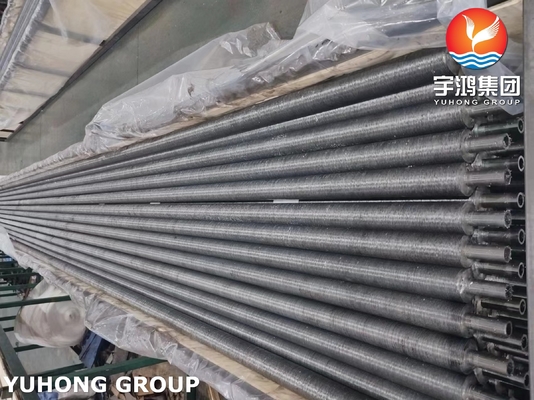

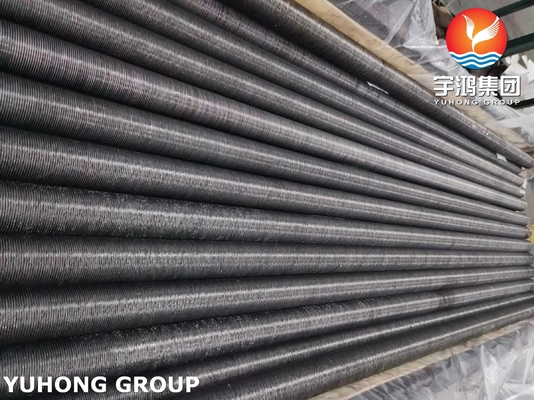

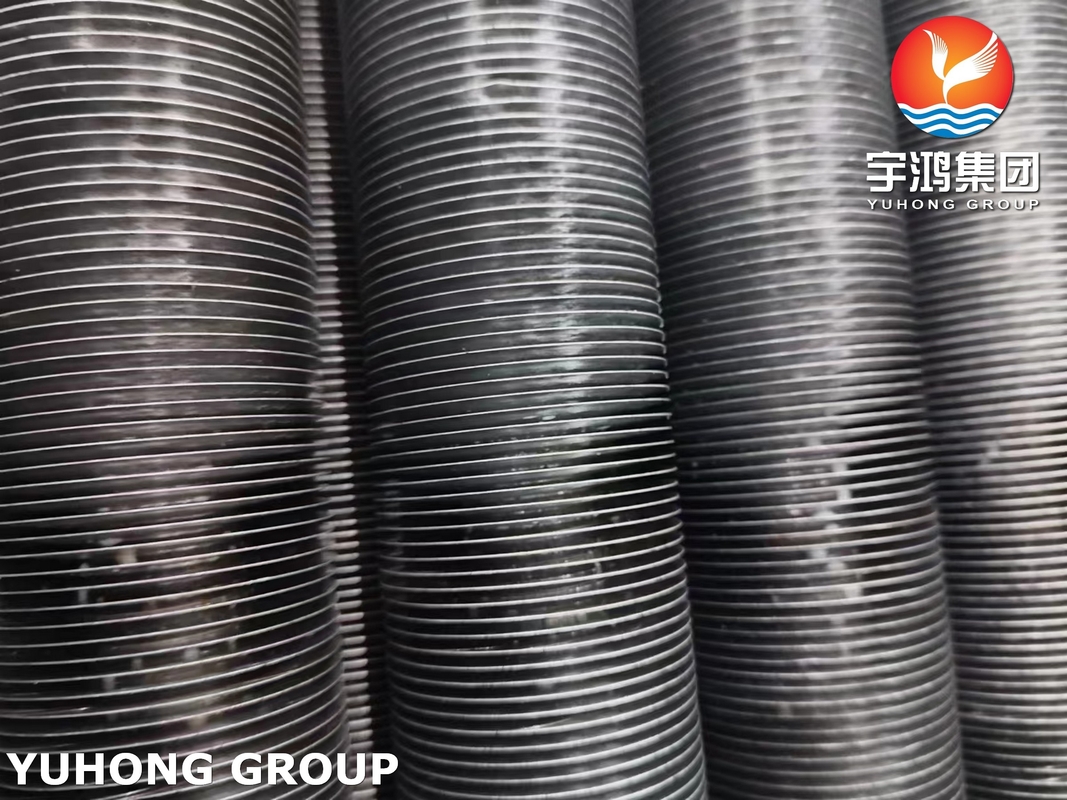

ASME SA179 Carbon Steel L-Type Fin Tubes With Al1060 Aluminum Strip For Heat Exchanger

Product Details:

Place of Origin:	China
Brand Name:	Yuhong
Certification:	DNV, BV, PED, LR, ABS, TS, CCS
Model Number:	ASTM A179

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7-45DAYS
Payment Terms:	L/C,T/T

Contact Now Chat Now

Detailed Product Description

Material:	A179	Fin Material:	Alumunium AL1060
Fin Height:	15.875mm	Fin Thk.:	0.4mm
FPI:	9-13	Application:	Heat Exchanger
Highlight:	OEM finned copper tube , 15mm finned copper tube , 15mm finned tubing copper

ASME SA179 Carbon Steel L-Type Fin Tubes With Al1060 Aluminum Strip For Heat Exchanger

Product Overview

The ASTM A179 / ASME SA179 Carbon Steel L-Type Fin Tubes with Al1060 Aluminum Strip are engineered for heat exchanger applications, delivering exceptional thermal efficiency and corrosion resistance. These tubes combine carbon steel for structural integrity with aluminum fins for optimal heat transfer, creating a cost-effective and durable solution for industrial cooling systems.

Technical Specifications

Chemical Composition

Base Tube: ASTM A179 Carbon Steel

Element	Composition
Carbon (C)	≤ 0.06%
Manganese (Mn)	0.27% - 0.63%
Phosphorus (P)	≤ 0.035%
Sulfur (S)	≤ 0.035%

Fin Material: Al1060 Aluminum

Element	Composition
Aluminum (Al)	≥ 99.0%
Iron (Fe)	≤ 0.35%
Copper (Cu)	≤ 0.05%
Silicon (Si)	≤ 0.25%

Performance Advantages

High heat transfer efficiency with L-type fin design
Excellent corrosion resistance from Al1060 aluminum
Durable construction withstands high-pressure conditions
Energy efficient design reduces operational costs
Cost-effective solution for industrial applications

Typical Applications

Industrial air cooling systems
Chemical processing heat exchangers
Petrochemical plant equipment
Industrial condensers
Large-scale HVAC systems

The ASTM A179 Carbon Steel L-Type Fin Tube with Al1060 Aluminum Strip delivers exceptional performance in heat exchanger applications, combining high thermal efficiency with mechanical durability for demanding industrial environments.
