Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1

Product Details:

Place of Origin:	China,Korea
Brand Name:	YUHONG
Certification:	ASME, PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	Embedded G type fin tube

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1--10000 USD

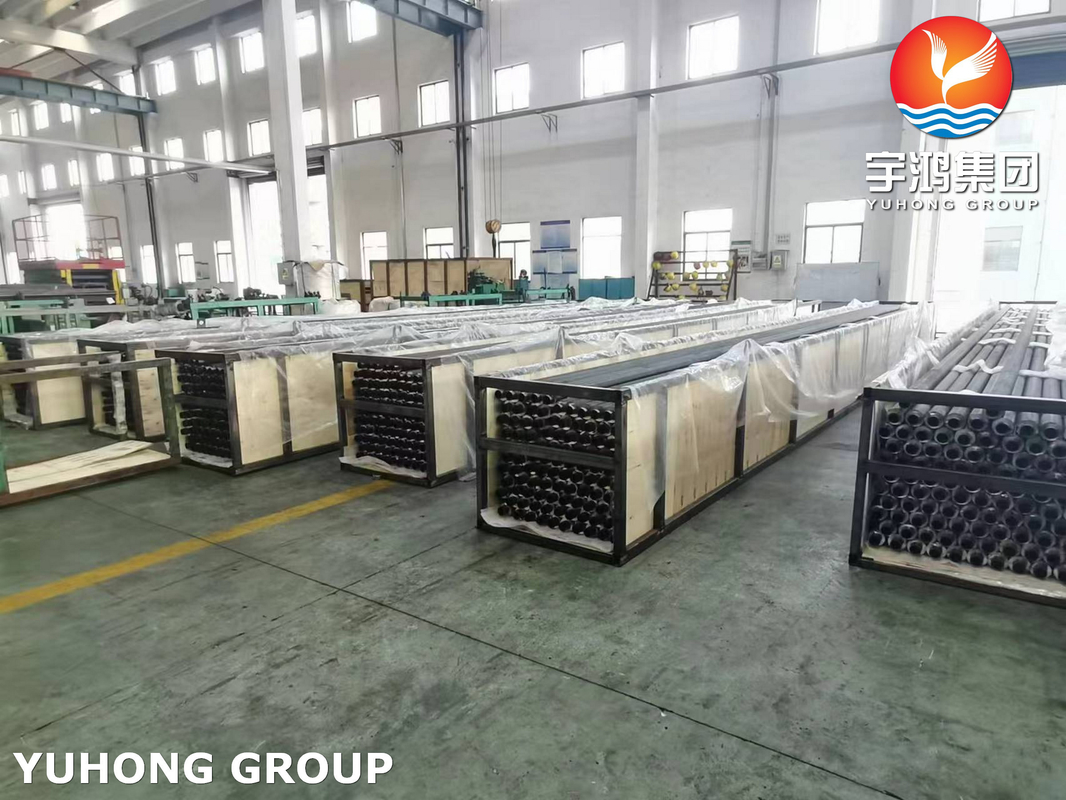

Packaging Details:	Ply wooden case
Delivery Time:	5---75 days
Payment Terms:	L/C, T/T
Supply Ability:	10000 tons/month

Contact Now Chat Now

Detailed Product Description

Base Tube Material:	A179, SA179 , SA179N, SA179KN, A192, SA192, A1, C , A214 , SA214	Base Tube Standard:	ASTM A178, ASME SA178, ASTM A179, ASME SA179, ASTM A192, ASTM A210, ASME SA210, ASTM A214, ASME SA214
Fin Material Grade:	Aluminum 1050, 1060, 1100 , 6061, 6063	Applicable:	Air Coolering , Cooling Tower , Heat Exchanger
Testing:	Pressure Test, Firmness Test, Pulling Test	Length:	Max.: 34m/pc
Highlight:	extruded G Type Finned Tube , ASME G Type Finned Tube , extruded spiral fin tube

Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1

Product Specifications

Attribute	Value
Base Tube Material	A179, SA179, SA179N, SA179KN, A192, SA192, A1, C, A214, SA214
Base Tube Standard	ASTM A178, ASME SA178, ASTM A179, ASME SA179, ASTM A192, ASTM A210, ASME SA210, ASTM A214, ASME SA214
Fin Material Grade	Aluminum 1050, 1060, 1100, 6061, 6063
Applications	Air Cooling, Cooling Tower, Heat Exchanger
Testing	Pressure Test, Firmness Test, Pulling Test
Length	Max.: 34m/pc

Yuhong Holding Group brings over 35 years of expertise in manufacturing steel pipes, tubes, and fin tubes for petrochemical, oil refinery, furnace, heating, boiler, heat exchanger, and air cooler applications. Our YUHONG brand products are exported to over 85 countries worldwide and have earned an excellent market reputation.

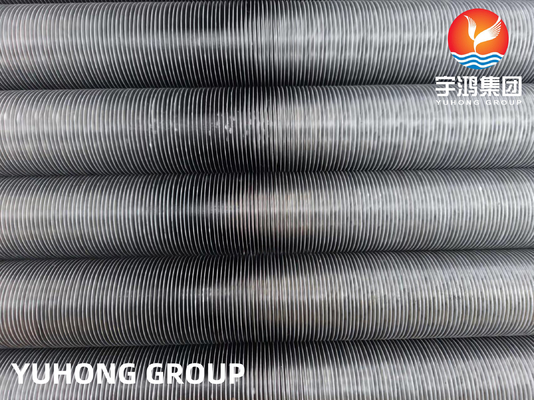

Embedded G Fin Tube Features

Also known as G type Finned Tube, providing perfect fin-to-tube connection
Manufactured by grooving tubes and inserting fins into helical grooves
Creates integral bond between fin and tube for superior durability
Ideal for high temperature applications and thermal cycling
Suitable for applications requiring regular fin-side cleaning

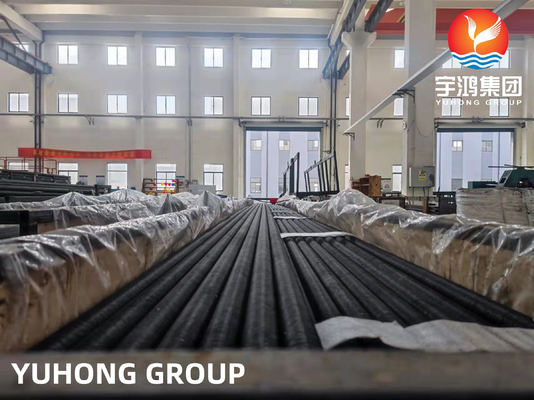

Manufacturing Capabilities

20,000 square meters production facility
10 dedicated finning machines for Embedded G type fin tubes
Daily extrusion capacity of 1800 meters
Strategic location near Shanghai Port (2 hours drive)

Technical Specifications

ASME SA210 Gr.A-1 Chemical Composition (%)
C ≤0.27 | Si ≤0.10
Mn ≤0.93 | P ≤0.035
S ≤0.035 | Cr /
Ni / | Mo /

ASME SA210 Tensile Test ASTM A370-20
Tensile Strength: ≥415 Mpa
Yield Strength: ≥255 Mpa
Elongation: ≥22%

Quality Assurance

Chemical Composition Analysis
Mechanical Properties Testing
Hydrostatic Test
Pressure Test
Boroscopic Inspection
Firmness Test

Applications

Heat exchangers for power plants (electric, nuclear, thermal, geothermal)
Steam condensate systems
Chemical and petrochemical industry
Food processing plants and refrigeration technology
Industrial applications (steel mills, incinerators, gas compression facilities)
