| Brand Name: | YUHONG |
| Model Number: | G Fin tube , Embedded Fin tube , Embedded G type fin tube |
| MOQ: | 1 PC |
| Price: | 1 - 10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Tons/Month |
| Attribute | Value |
|---|---|
| Base Tube Material Grade | SA179 |
| Base Tube Material Standard | ASME SA179, ASTM A179 |
| Type | Straight Tube, U bend Tube, Coil Tube |
| Application | Air cooler, Cooling Tower, Heat Exchanger, Condenser |
| Fin type | G Fin tube, Embedded Fin tube, Embedded G type fin tube |
| Fin Material | Aluminum, Copper, Stainless Steel, Carbon Steel |

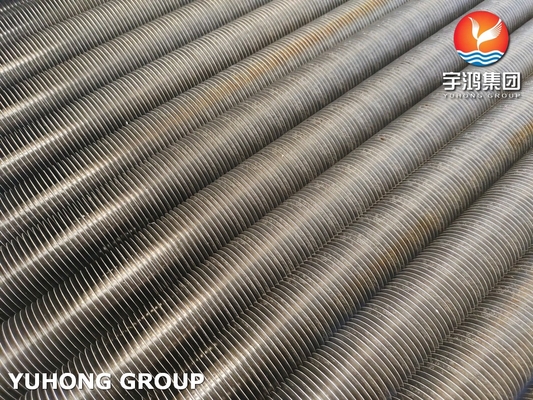

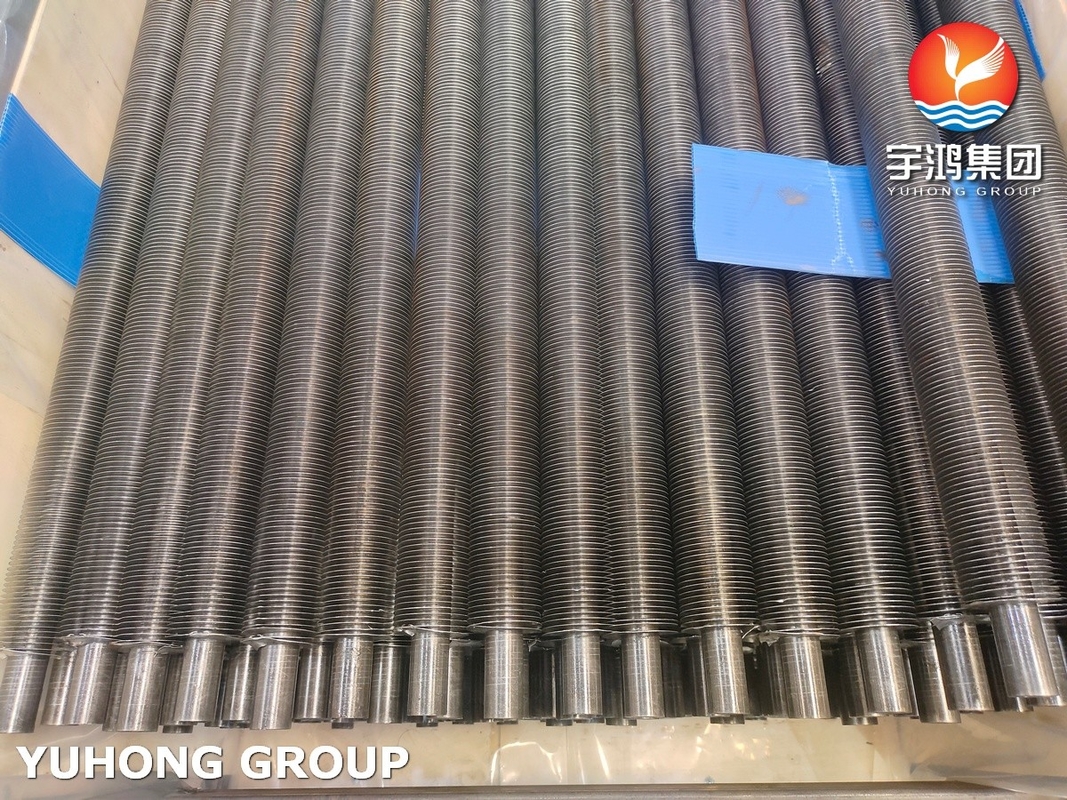

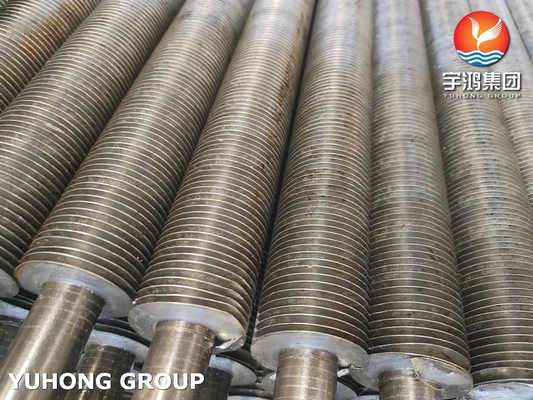

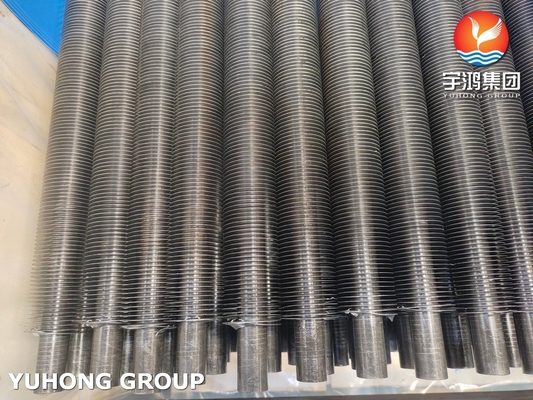

The ASME SA179 Embedded G Fin Tube is a high-performance heat transfer component designed for maximum efficiency in industrial applications. The base tube is constructed from ASME SA179 carbon steel, renowned for its superior heat transfer properties and mechanical strength.
The innovative Embedded G Fin design is mechanically bonded into the tube surface, significantly enhancing heat transfer while ensuring durable structural integrity. This design incorporates corrosion resistance features to protect the base tube from environmental degradation, offering long-term reliability and resistance to thermal stress.
| Grade | C | Mn | P | S |
|---|---|---|---|---|
| SA179 | 0.06-0.18% | 0.27-0.63% | 0.035% max | 0.035% max |
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|
| SA179 | ≥ 180 MPa (26 ksi) | ≥ 325 MPa (47 ksi) | Variable based on diameter | Typically ≤ 72 HRB |
