TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	G Fin tube , Embedded Fin tube , Stainless Steel Embedded G Type Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD

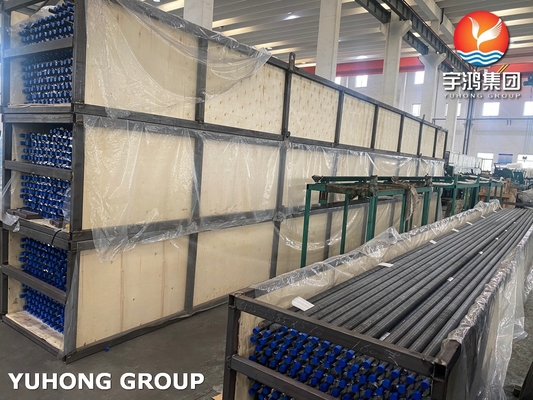

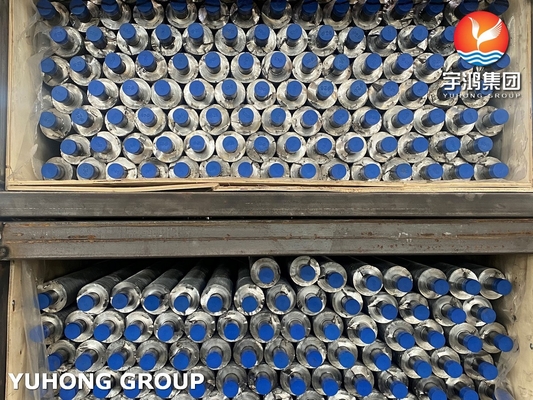

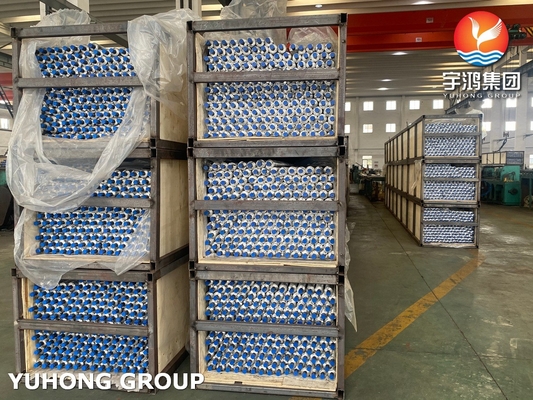

Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material Grade:	TP316, TP316L , TP316H, SUS316, SUS316L, 1.4404	Base Tube Material Standard:	ASTM A213, ASME SA213, JIS G3459, GOST 9941
Type:	Straight Tube , U Bend Tube , Coil Tube	Application:	Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type:	G Fin Tube , Embedded Fin Tube , Embedded G Type Fin Tube	Fin Material:	Aluminum , Copper
Testing:	Firmness Test, Pull Test
Highlight:	TP316L G Type Finned Tube , Seamless G Type Finned Tube , Oil Refinery micro fin coil

TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling

Product Overview

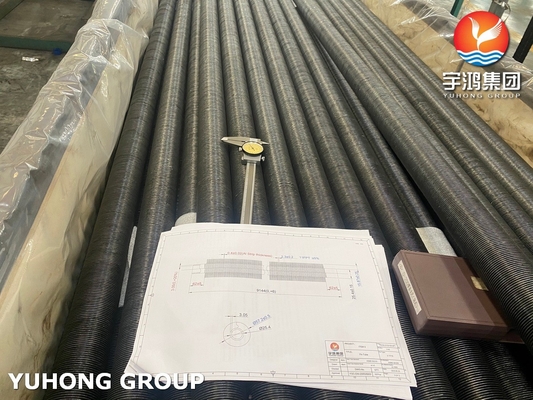

Embedded G Fin Tube, Stainless Steel Seamless Tube ASTM A213 TP316L with Aluminum 1060, designed specifically for oil refinery cooling applications. Features a fin strip wound into a machined groove and securely locked into place by back filling with base tube material for maximum heat transfer at high tube metal temperatures.

Key Specifications

Attribute	Value
Base Tube Material Grade	TP316, TP316L, TP316H, SUS316, SUS316L, 1.4404
Base Tube Material Standard	ASTM A213, ASME SA213, JIS G3459, GOST 9941
Type	Straight Tube, U bend Tube, Coil Tube
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type	G Fin tube, Embedded Fin tube, Embedded G Type Fin Tube
Fin Material	Aluminum, Copper
Testing	Firmness Test, Pull Test

Fin Tube Specifications

Type	Description	Base tube O.D. (mm)	Fin pitch (mm)	Fin height (mm)	Fin thickness (mm)
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6~10	<17	0.2-0.4
Low fin tube	T-type fin tube	10-38	0.6~2	<1.6	~0.3
Bamboo tube	Corrugated tube	16-51	8.0~30	<2.5	/

Material Composition

ASME SA213 TP316L Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Mo
≤0.035	≤1.0	≤2.0	≤0.045	≤0.03	16.0~18.0	10.0~14.0	2.0~3.0

ASME SA213 TP316L Tensile Test ASTM A370-20

Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥515	≥205	≥35

Testing Equipment

Hydraulic test lines up to 40MPa
Under water pneumatic test
Computer controlled microscope
Penetration Test
Ultrasonic thickness gauge
Fin Firmness Test equipment
Other specialized testing equipment

Applications

Dry Kiln
Steam systems
Refineries
Energy plants
Reactors
Heat exchangers
Gas Station air cooling
Cooling towers
Waste equipment
