| Brand Name: | YUHONG |
| Model Number: | Monel 400 Fin tube , Copper Nickel Fin Tube |
| MOQ: | 1PC |
| Price: | 1--10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 tons/month |
| Attribute | Value |
|---|---|
| Base Tube Standard | ASTM B163, ASME SB163, ASTM B165, ASME SB165 |
| Base Tube Grade | Monel 400, Alloy 400, UNS NO4400, 2.4360 |
| Fin Material | ASME SB208 GR. 1060, GR.1100 |

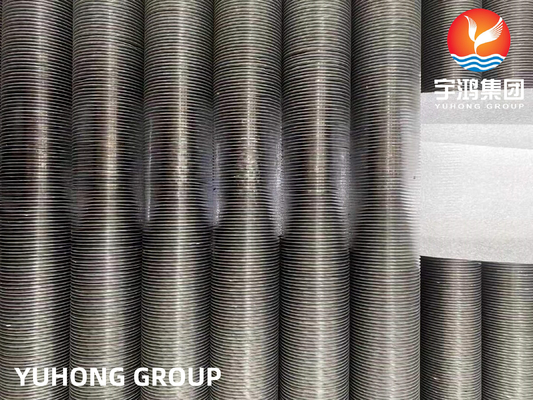

| Fin Type | Embedded G Type Fin tube |
| Testing | Pressure Testing, Firmness testing, Pulling Testing |
| Application | Air cooler, Cooling Tower, Oil refining |
| C | MN | P | S | Si | Cr | Ni | Cu | Al | Fe |
|---|---|---|---|---|---|---|---|---|---|
| .25max | 1.5 max | - | .01 max | .5 max | - | 63.0 min | 27-33 | 2.30-3.15 | 2.5 max |
| Product Form | Specification |
|---|---|
| Monel 400 Sheet/Plate | QQ N 286 |
| Monel 400 Round Bar | ASME SB-865 AMS 4676 QQ N 286 |
| Monel 400 Pipe | B165 |
| Monel 400 Tube | B163, B165 |
| Monel 400 Fittings | B366 |
| Monel 400 Forgings | QQ N 286 AMS 4676 |
| Type | Description | Base Tube O.D. (mm) | Fin Pitch (mm) | Fin Height (mm) | Fin Thickness (mm) |
|---|---|---|---|---|---|
| Embedded | G-type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
| Low fin tube | T-type fin tube | 10-38 | 0.6-2 | <1.6 | ~0.3 |
