Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM

Product Details:

Place of Origin:	China, Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Embedded G Type Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	10-1000 USD/PC
Packaging Details:	STEEL FRAME CASE
Delivery Time:	20-90 DAYS
Payment Terms:	L/C,T/T
Supply Ability:	10000 TONS PER MONTH

Contact Now Chat Now

Detailed Product Description

Base Tube Material Grade:	SA179	Base Tube Material Standard:	ASME SA179, ASTM A179
Fin Material:	Aluminum, Carbon Steel	Max. Working Temperature:	750 °F（400 °C）
Bare Tube Diameter(MM):	16 - 63 Mm	Fin Pitch(MM):	2.1 - 5 Mm
Fin Height(MM):	<17 Mm	Fin Thick(MM):	~0.4 Mm
Highlight:	HVAC G Type Finned Tube , ODM G Type Finned Tube , ODM tube and fin coil

Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM

Product Specifications

Attribute	Value
Base Tube Material Grade	SA179
Base Tube Material Standard	ASME SA179, ASTM A179
Fin Material	Aluminum, Carbon Steel
Max. Working Temperature	750 °F (400 °C)
Bare Tube Diameter (MM)	16 - 63 mm
Fin Pitch (MM)	2.1 - 5 mm
Fin Height (MM)	<17 mm
Fin Thickness (MM)	~0.4 mm

Product Description

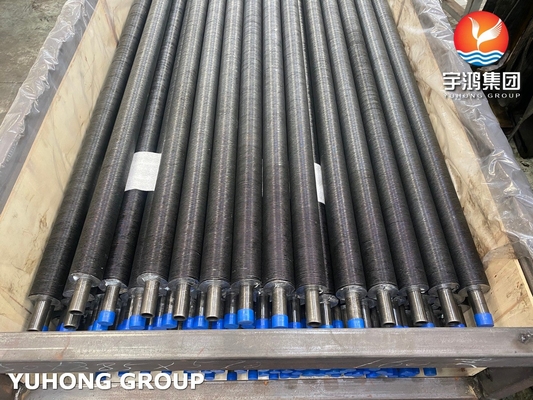

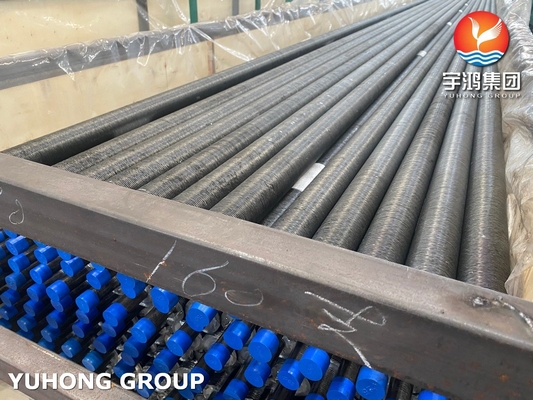

The ASME SA179 Embedded G Fin Tube is a high-performance heat transfer component engineered for superior thermal efficiency. The base tube is constructed from ASME SA179 carbon steel, known for its excellent heat transfer properties and mechanical strength.

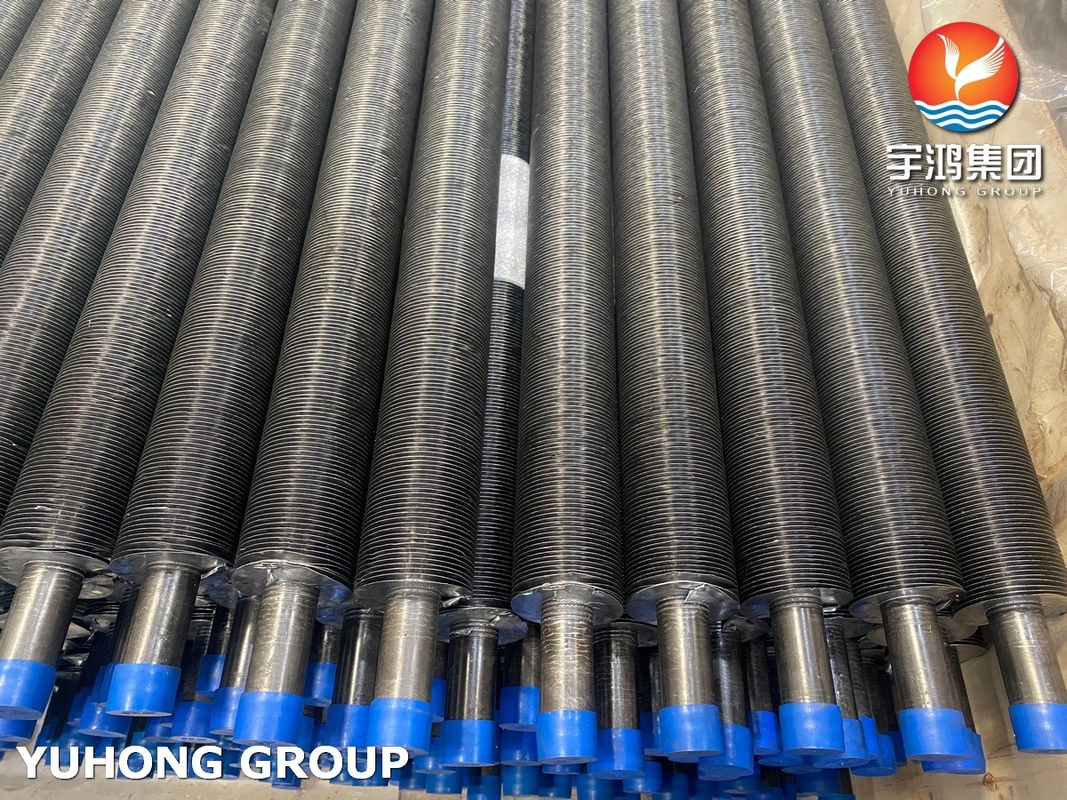

The fin strip is precision-wound into machined grooves on the tube surface and securely locked in place by back filling with base tube material. This innovative design delivers exceptional heat transfer efficiency at elevated tube metal temperatures.

Maximum Working Temperature: 750°F (400°C)

Fin Materials: Aluminum, Copper, Carbon Steel

Chemical Composition

Grade	C	Mn	P	S
SA179	0.06-0.18%	0.27-0.63%	0.035% max	0.035% max

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
SA179	≥ 180 MPa (26 ksi)	≥ 325 MPa (47 ksi)	Variable based on diameter	Typically ≤ 72 HRB

Industrial Applications

Power Generation: Used in heat exchangers for steam generation and cooling systems in power plants, enhancing overall efficiency and output.
Petrochemical Industry: Essential for refineries and chemical processing plants requiring high thermal efficiency and durability in corrosive environments.
HVAC Systems: Maximizes heat exchange in condenser and evaporator coils for improved energy efficiency in air conditioning and refrigeration units.
Oil and Gas Industry: Provides reliable performance in heat exchangers exposed to harsh marine conditions on offshore platforms.
Natural Gas Processing: Maintains process efficiency and reduces energy costs in high-performance heat exchangers.
