Embedded AL1060 Aluminum 1060 G Type Finned Tube ASTM A179 For Heat Exchanger

Product Details:

Place of Origin:	China
Brand Name:	YuHong
Certification:	ABS, BV, ISO, ASTM, SGS
Model Number:	Embedded Finned Tubes ASTM 179 with Al1060 Fins

Payment & Shipping Terms:

Minimum Order Quantity:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Delivery Time:	35-60 Days (Depend on Customer's Requirements)
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	According to Clients' requirements

Contact Now Chat Now

Detailed Product Description

Product Name:	Embedded Finned Tube / G Finned Tube	Base Tube Specification&Material:	ASTM A179
Fin Material:	Aluminum1060	Fin Height:	＜17mm
Fin Thickness:	~0.4mm	Base Tube OD:	16~63mm
Fin Pitch:	2.1~5mm	Application:	Chemical Equipment Heat Exchanger, Heat Exchanger, Air Cooler, Condensers, Evaporators...
Highlight:	AL1060 G Type Finned Tube , Embedded G Type Finned Tube , Aluminum 1060 tube finning

Embedded AL1060 Aluminum 1060 G Type Finned Tube ASTM A179 For Heat Exchanger

Product Specifications

Attribute	Value
Product Name	Embedded Finned Tube / G Finned Tube
Base Tube Specification & Material	ASTM A179
Fin material	Aluminum1060
Fin Height	<17mm
Fin Thickness	~0.4mm
Base Tube OD	16~63mm
Fin Pitch	2.1~5mm
Application	Chemical Equipment Heat Exchanger, Heat Exchanger, Air Cooler, Condensers, Evaporators

Product Overview

ASTM A179 refers to a standard specification for seamless cold-drawn low-carbon steel tubes used in heat exchangers, condensers, and similar heat transfer applications. These tubes are known for their excellent thermal conductivity and mechanical properties.

When combined with AL1060 fins, the product becomes an embedded finned tube, which is a type of heat exchanger tube designed to enhance heat transfer efficiency.

Component Breakdown

ASTM A179 Tube:

Material: Low-carbon steel
Properties: High thermal conductivity, good corrosion resistance, and excellent mechanical strength
Application: Commonly used in heat exchangers, condensers, and boilers

AL1060 Fins:

Material: Aluminum alloy 1060 (99.6% aluminum)
Properties: High thermal conductivity, excellent corrosion resistance, and lightweight
Application: Fins are attached to the tube to increase the surface area for better heat transfer

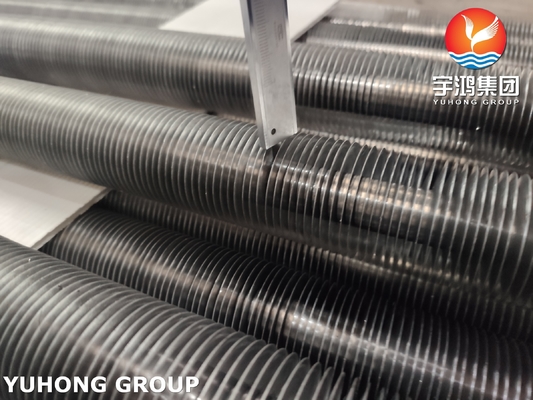

Embedded Finned Tubes Construction:

The fin strip is wound into a groove pre-cut on the tube surface
Fins are secured through a rolling process that locks them into the groove
The fins (AL1060) are embedded onto the outer surface of the ASTM A179 tube
Purpose: Increases effective surface area for improved heat transfer efficiency

Key Features

High Heat Transfer Efficiency: Combination of steel tubes and aluminum fins maximizes heat exchange
Corrosion Resistance: AL1060 fins provide excellent resistance to harsh environments
Durability: ASTM A179 tubes offer mechanical strength with long-term performance

Material Composition

Element	Composition (%)
Carbon (C)	0.06 - 0.18
Manganese (Mn)	0.27 - 0.63
Phosphorus (P)	0.035 max
Sulfur (S)	0.035 max
Silicon (Si)	0.10 min

Mechanical Properties

Property	Value
Tensile Strength (min)	325 MPa (47,000 psi)
Yield Strength (min)	180 MPa (26,000 psi)
Elongation (min)	35% (in 2 inches)
Hardness (max)	72 HRB (Rockwell B)

Typical Applications

Air Coolers and Heaters: Used in industrial air cooling and heating systems
Condensers: Suitable for refrigeration systems and power plant steam condensation
Evaporators: Used in HVAC systems, refrigeration, and industrial processes
HVAC Heat Exchangers: Efficient heat transfer for heating, ventilation, and air conditioning
Waste Heat Recovery Units: Reclaim heat in chemical plants and power generation facilities
Petrochemical Processes: Maintain process temperatures for chemical reactions
