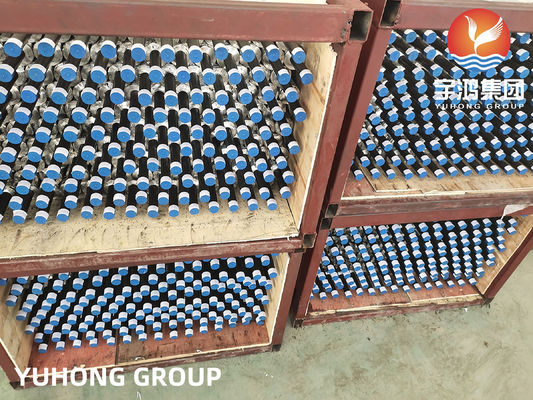

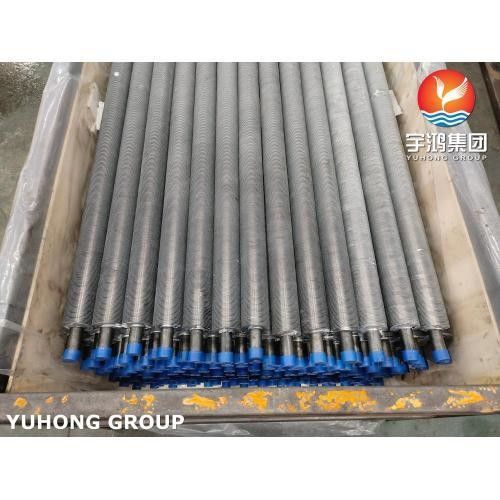

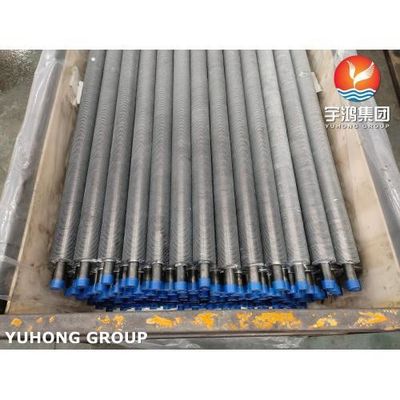

ASTM A179 with Aluminum 1060 Carbon Steel Extruded Fin Tubes For Air Cooler

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Payment Terms:	L/C,T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material Grade:	A179	Base Tube Material Standard:	ASTM A179, ASME SA179
Type:	Straight Tube , U Bend Tube , Coil Tube	Application:	Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type:	Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube	Fin Material:	Aluminum , Copper , Stainless Steel , Carbon Steel
Highlight:	industrial Extruded Fin Tube , Desalination plants Extruded Fin Tube , Desalination fin tube products

ASTM A179 with Aluminum 1060 Carbon Steel Extruded Fin Tubes For Air Cooler

Product Description

ASTM A179 with Aluminum 1060 Carbon Steel Extruded Fin Tubes are specialized heat exchange elements designed for optimal thermal performance. These tubes feature extruded fins from the outer surface, created by sliding the base tube inside an outer copper or aluminum tube and passing through an automatic extrusion machine. The extrusion process creates fins at precise heights and thicknesses, significantly increasing the surface area of the base tube to enhance heat exchange efficiency in various industrial applications.

Chemical Composition of ASTM A179 / ASME SA179

C	Mn	P	S
0.06-0.18	0.27-0.63	≤0.035	≤0.035

Mechanical Properties of ASTM A179 / ASME SA179

Property	Value
Tensile Strength, MPa	325 min
Yield Strength, MPa	180 min
Elongation, %	35 min
Hardness, HRB	72 max

Industrial Applications

Condenser and Evaporator systems
Desalination and Fertilization plants
Petrochemical Industries
Paper and Pulp Plants
Building and Construction Industries
Food Processing Industry
Heat Exchangers and Power Plants
Oil and Gas Plants
