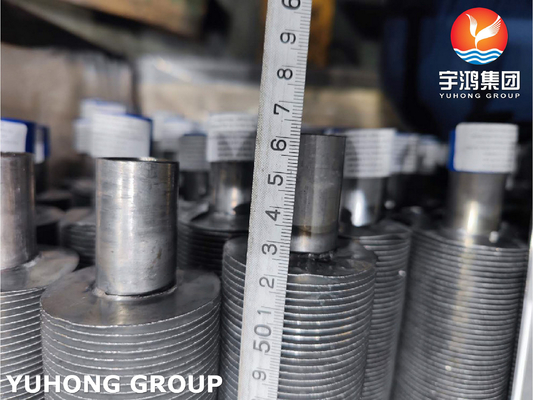

ASTM B163 Incoloy NO8825 Extruded Fin Tube For Heat Exchanger

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Payment Terms:	L/C,T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material Grade:	UNS NO8825 , Incoloy 825 , Alloy 825	Base Tube Material Standard:	ASTM B163 , ASME SB163
Type:	Straight Tube , U Bend Tube , Coil Tube	Application:	Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type:	Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube	Fin Material:	Aluminum , Copper , Stainless Steel , Carbon Steel
Highlight:	ASTM B163 aluminium finned tubes , Incoloy 825 aluminium finned tubes , Incoloy 825 extruded fin

ASTM B163 Incoloy NO8825 Extruded Fin Tube For Heat Exchanger

Product Description

Extruded fin tubes with a base tube made of ASTM B163 Incoloy are specialized components designed for high-performance heat transfer applications. Incoloy, a family of nickel-chromium-based superalloys, provides excellent resistance to oxidation, corrosion, and high-temperature environments.

Key Advantages

High Thermal Efficiency

Improved Heat Transfer: The extruded fins increase the surface area, enhancing heat transfer efficiency
Effective Bonding: The extrusion process ensures strong bonding between aluminum fins and Incoloy base tube

Durability and Longevity

Excellent corrosion and oxidation resistance for harsh environments
Robust construction maintains mechanical integrity under stress

Versatility

Suitable for petrochemical, power generation, chemical processing, oil and gas, marine applications
High-temperature capability for extreme operating conditions

Construction Features

Extrusion process creates strong mechanical bond between aluminum fins and Incoloy base tube
Enhanced surface area improves heat transfer efficiency

Technical Specifications

Type	Description	Base Tube OD (mm)	Fin Pitch (mm)	Fin Height (mm)	Fin Thickness (mm)
Extruded	Single Metal Combined Metal	8-51	1.6-10	<17	0.2-0.4
Low Fin tube	T-type fin tube	10-38	0.6-2	<1.6	~0.3
Bamboo tube	Corrugated tube	16-51	8-30	<2.5	/

Material Specifications

STANDARD: Incoloy 825
WERKSTOFF NR.: 2.4858
UNS: N08825
JIS: NCF 825

BS: NA 16
GOST: ЭП703
AFNOR: NFE30C20DUM
EN: NiCr21Mo

Chemical Composition

Element	% Content
Ni	38.0-46.0
Cr	19.5-23.5
Mo	2.5-3.5
Cu	1.5-3.0
Ti	0.6-1.2
Fe	22.0 min (~33%)

Mechanical Properties

Property	Value
Density	8.14 g/cm³
Melting Point	1400 °C (2550 °F)
Tensile Strength	80,000 Psi / 550 MPa
Yield Strength (0.2% Offset)	32,000 Psi / 220 MPa
Elongation	30%

Applications

Petrochemical and Refinery Industry
Power Generation
Chemical Processing
Oil and Gas Industry
Marine Applications
High-Temperature Furnaces
