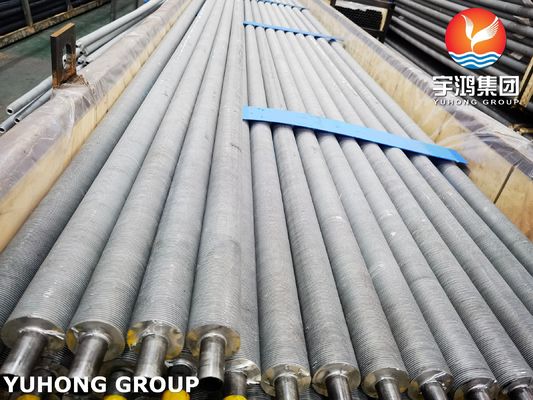

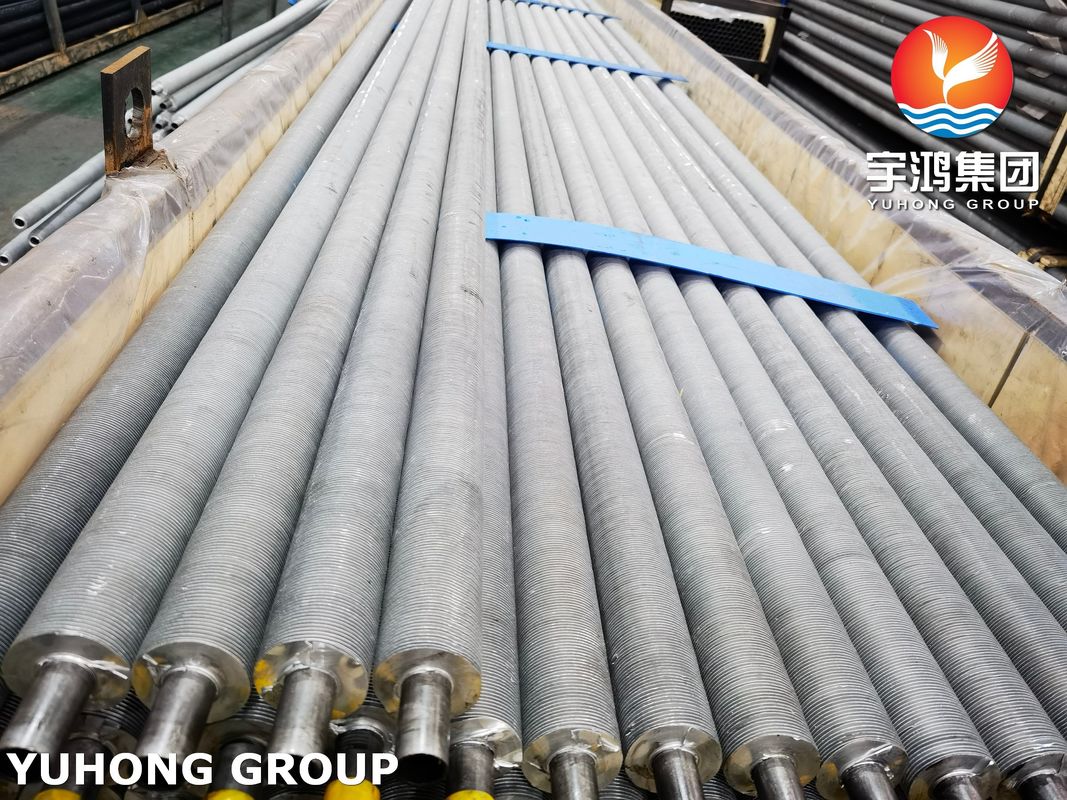

ASTM A179 Low-Carbon Steel Extruded Fin Tube For Air Cooled Heat Exchanger

Product Details:

Place of Origin:	China
Brand Name:	YuHong
Certification:	ISO, ABS, BV, ISO, ASTM, SGS
Model Number:	ASTM 179

Payment & Shipping Terms:

Minimum Order Quantity:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Delivery Time:	35-60 Days (Depend on Customer's Requirements)
Payment Terms:	T/T,L/C AT SIGHT
Supply Ability:	According to Clients' requirements

Contact Now Chat Now

Detailed Product Description

Product Name:	Extruded Finned Tube	Base Tube Specification&Material:	ASTM A179
Fin Material:	ASTM B221 AL-1060	Fin Height:	＜17mm
Fin Thickness:	0.2~0.4mm	Base Tube OD:	8~51mm
Fin Pitch:	1.6~10mm	Application:	Heat Exchangers For Power Plants, Steam Condensate Systems...
Highlight:	A179 Extruded Fin Tube , ODM Extruded Fin Tube , ODM crimped fin tube

ASTM A179 Low-Carbon Steel Extruded Fin Tube For Air Cooled Heat Exchanger

Product Overview

An extruded finned tube is a high-performance heat exchanger component with fins mechanically extruded from the tube wall. This process creates a strong metallurgical bond between the fins and tube, resulting in superior heat transfer characteristics.

Key Advantages

Enhanced heat transfer: AL1060 aluminum fins provide excellent thermal conductivity
Durable construction: Metallurgical bond ensures structural integrity under high temperatures
Corrosion resistant: Aluminum fins offer protection in demanding environments
Space efficient: Compact design maximizes surface area in limited spaces

ASTM A179 Material Properties

Chemical Composition: Low carbon steel (0.06-0.18% C) with excellent weldability and formability

Mechanical Properties: Minimum tensile strength of 325 MPa and yield strength of 180 MPa

Industrial Applications

Air-cooled heat exchangers in power generation and petrochemical plants
Oil and hydraulic coolers for industrial machinery
Gas-to-gas heat exchangers in waste heat recovery systems
Evaporators and condensers in refrigeration applications
Process heat exchangers in chemical processing and oil refining
