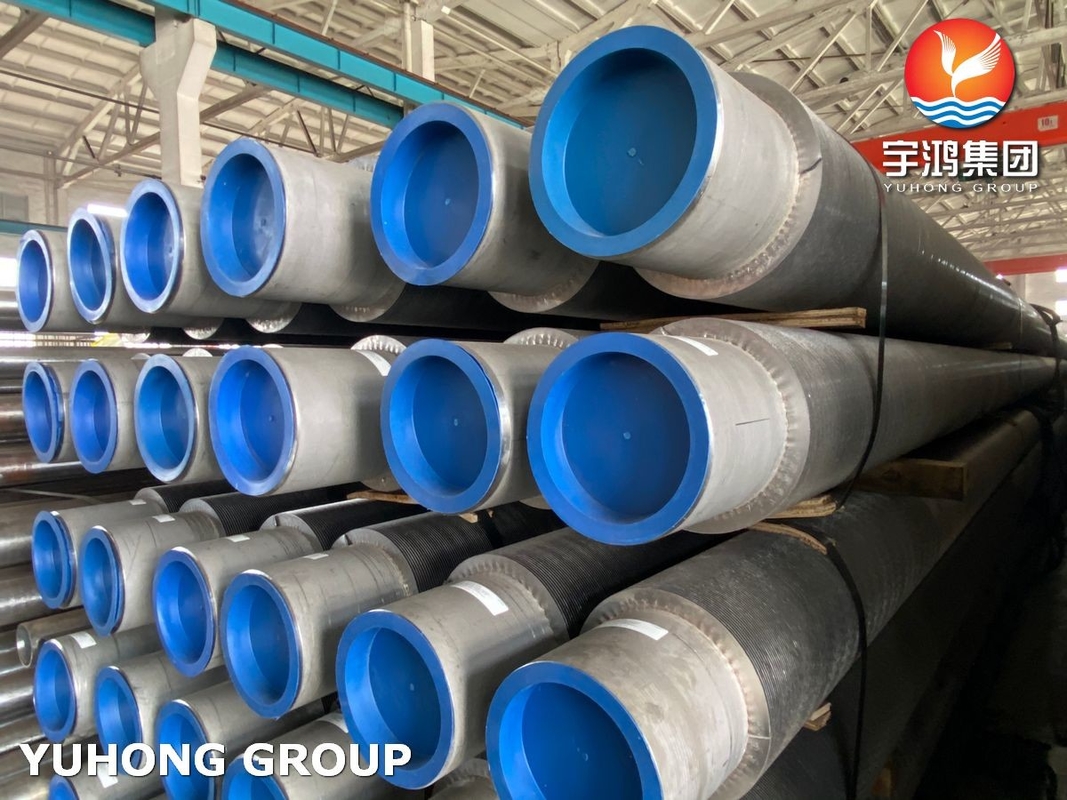

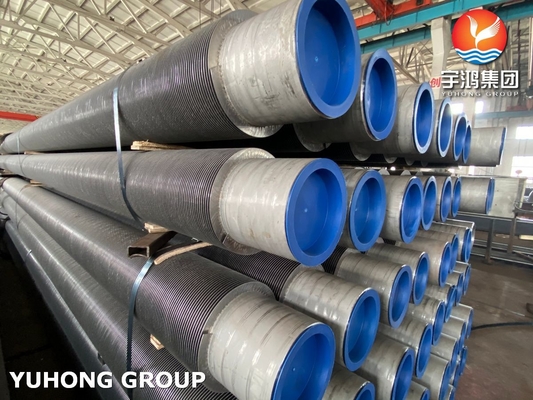

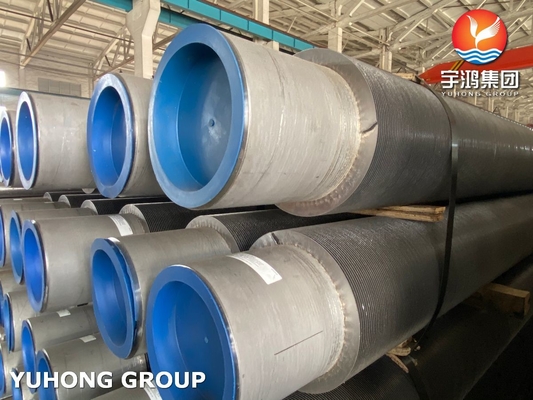

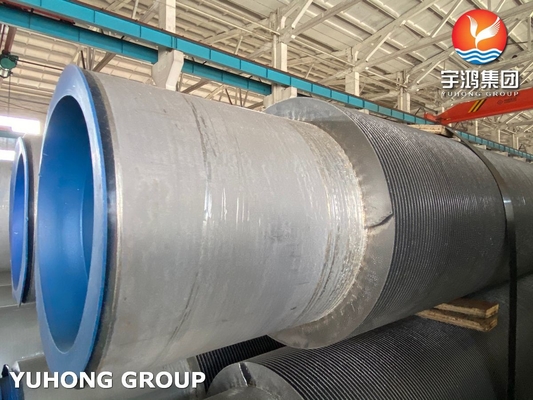

TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240

Product Details:

Place of Origin:	China,Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	High Frequency Weld Fin Tube, Welding fin tube, Fin Tube, Finned Tube, Solid Fin tube, HFW fin tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply - Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Payment Terms:	L/C , T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material Standard:	ASTM A213, ASME SA213 , ASTM A249 , ASME SA249 , ASTM A312, ASME SA312 , ASTM A376, ASME SA376	Base Tube Material Grade:	TP304, TP304L, TP304H, TP310, TP310H, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H,
Type:	Straight Tube , U Bend Tube , Coil Tube , Snake Tube	Application:	Furnace Tube, Tube Coil , Radiate Tube , Convenction Tube , Fired Heater
Welding Type:	High Frequency Welding	Fin Material:	Carbon Steel , Stainless Steel , Alloy Steel
Highlight:	SS304 fin tube air cooler , Serrated fin tube air cooler , Serrated tube and fin

TP304 SS304 Serrated Fin Tube Air Cooler Stainless Steel ASTM A240

Product Specifications

Attribute	Value
Base Tube Material Standard	ASTM A213, ASME SA213, ASTM A249, ASME SA249, ASTM A312, ASME SA312, ASTM A376, ASME SA376
Base Tube Material Grade	TP304, TP304L, TP304H, TP310, TP310H, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H
Type	Straight Tube, U bend Tube, Coil Tube, Snake Tube
Application	Furnace Tube, Tube Coil, Radiate Tube, Convenction Tube, Fired Heater
Welding Type	High Frequency Welding
Fin Material	Carbon Steel, Stainless Steel, Alloy Steel

Product Description

High Frequency Welding Fin Tube (HFW Fin Tube), also called solid type fin tube, uses steel or stainless steel strip or steel round bar directly welded on the pipe/tube surface. This type of fin tube significantly improves heat transfer efficiency compared to bare tubes. Due to the tight welding of fins to the base pipe/tube, these finned tubes are ideal for vibrating conditions.

Available Types

Serrated Fin Tube
Flat Fin Tube
Studded Fin Tube

Technical Specifications

Base Tube / Core Tube O.D: 15.88 - 325mm
Fin Height: 6 - 50.8mm
Fin Thickness: 0.8 - 3.0mm
Fin Pitch: Customizable to customer requirements
End Options: Plain Ends / Beveled Ends
No Fin Area on Both Sides: Customizable per customer request

ASME SA312 TP304 Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Mo	Ti	Nb	Cu	Al	V	Co	Fe	Result
≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	18.0~20.0	8.0~11.0	/	/	/	/	/	/	/	/

ASME SA312 TP304 Tensile Test ASTM A370-20

Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥515	≥205	≥35

Manufacturer Advantages

Yuhong Group operates a 20,000 square meter workshop with 4 finning machines for high frequency welding fin tubes, achieving a daily extrusion capacity of 700m. Our facility is conveniently located less than 2 hours from Shanghai Port, ensuring efficient transportation. Our high rigidity studded tubes perform reliably under extreme temperature and pressure conditions.

Applications

Air Cooler
Charge Air Chiller
Condenser
Evaporator
Fluid Cooler
Gas Cooler
Oil Cooler
Radiator
Refrigeration
Steam to Air Heat Exchanger
Superheater
