HVAC Evaporator Crimped Fin Tube SS409 Stainless Steel SA213 T9

Product Details:

Place of Origin:	China,Korea
Brand Name:	YUHONG
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	U bend Fin tube , Solid Fin tube, HFW Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Delivery Time:	5---75 days
Payment Terms:	L/C, T/T
Supply Ability:	10000 tons/month

Contact Now Chat Now

Detailed Product Description

Brand:	YUHONG	Standard:	ASTM A213, ASME SA213 , ASTM A199, ASME SA199, ASTM A335, ASME SA335
Base Tube Material Grade:	SA178, SA179, SA192, A-1, C, SA214, T1, T11, T12, T22, T5, T9, T91	Application:	Boiler, Furnace, Fired Heater, Evaporator ,HVAC Systems
Fin Type:	Solid U Bend Fin Tube , HFW Fin Tube	NDT:	Hydrostatic Test, PT
Highlight:	SA213 T9 crimped fin tube , HVAC crimped fin tube , Evaporator tube fins

HVAC Evaporator Crimped Fin Tube SS409 Stainless Steel SA213 T9

Product Specifications

Attribute	Value
Brand	YUHONG
Standard	ASTM A213, ASME SA213, ASTM A199, ASME SA199, ASTM A335, ASME SA335
Base Tube Material Grade	SA178, SA179, SA192, A-1, C, SA214, T1, T11, T12, T22, T5, T9, T91
Application	Boiler, Furnace, Fired Heater, Evaporator, HVAC systems
Fin Type	Solid U Bend Fin Tube, HFW Fin Tube
NDT	Hydrostatic Test, PT

Product Description

Yuhong Group's Welded Helical Solid Finned Tubes are manufactured by helically wrapping fin strip on edge around the tube circumference and continuously welding the fin strip to the tube. The fin strip is held under tension and confined laterally as it is formed around the tube, ensuring forceful contact with the tube surface.

A continuous weld is applied at the point where the fin strip first begins to bend around the tube diameter using Yuhong Group's unique gas metal arc welding (GMAW) process. This creates the strongest fin-to-tube attachment in the industry, with excellent heat transfer characteristics, low fin-side pressure drop, and minimal change in grain microstructure.

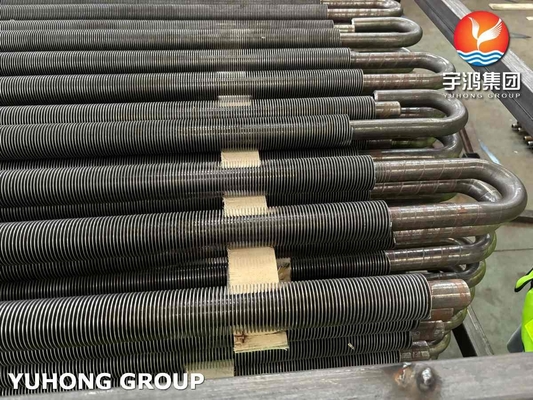

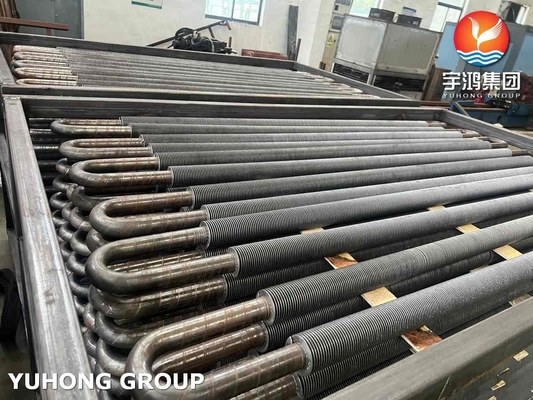

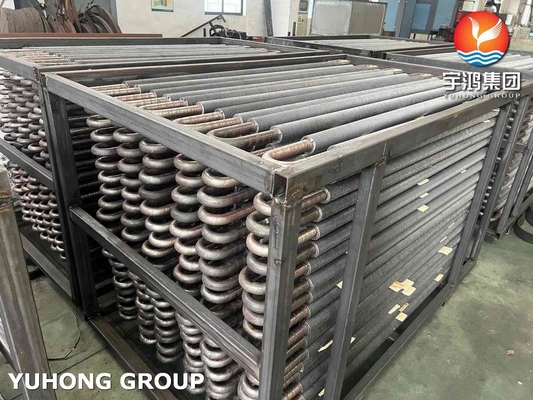

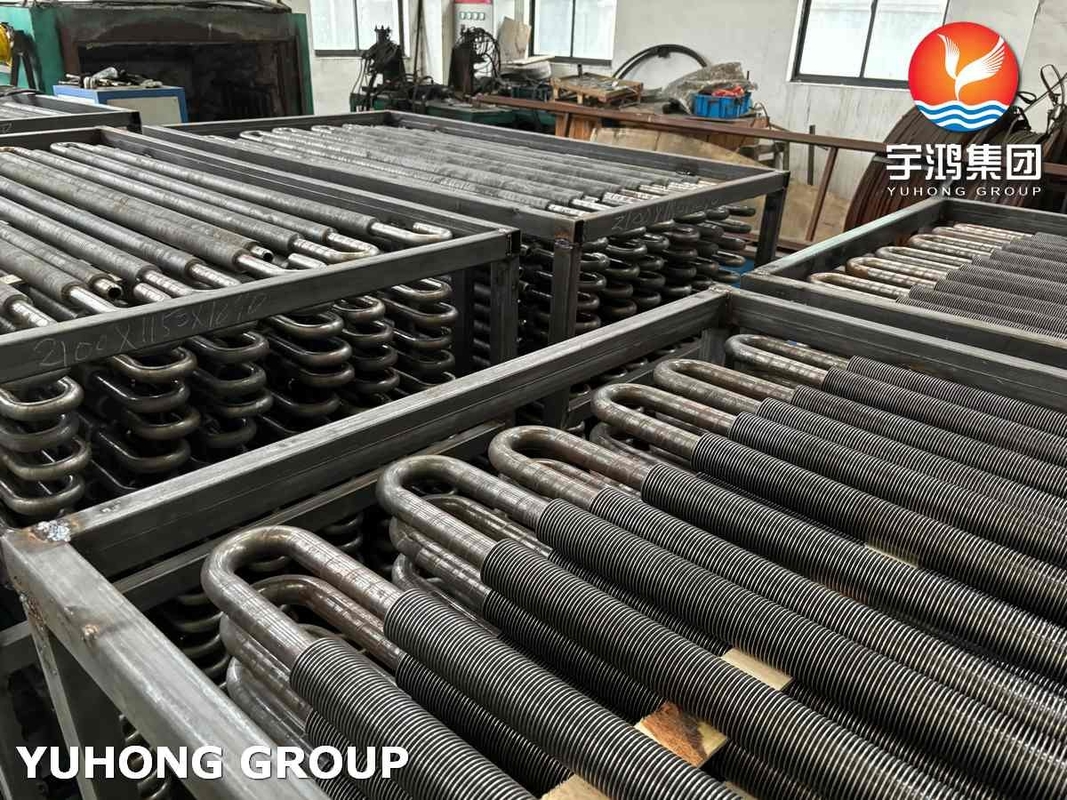

U-bend fin tube is a type of heat exchanger tube bent into a U-shape to increase surface area for heat transfer. The tube is typically lined with fins to further enhance heat transfer capabilities, making it ideal for HVAC systems, refrigeration units, and industrial process equipment.

Material Grades Available

SA178-A

SA213-T1

SA333-Gr.1

SA213

TP316L

A789-S31803

SB111-C70600

SB338-GR.1

SB163

NO2200

ASTM A213/ASME SA213 Chemical Composition and Mechanical Properties

Chemical Composition%	Mechanical Properties
Grade: T2 C: 0.10~0.20 Si: 0.10~0.30 Mn: 0.30~0.61 P, S Max: 0.025 Cr: 0.50~0.81 Mo: 0.44~0.65 Ni Max: - V: - Al Max: -	T. S: ≥ 415MPa Y. P: ≥ 205MPa Elongation: ≥ 30% Hardness: 163HBW(85HRB)

ASTM A213/ASME SA213 Tolerance

Outside Diameter	OD Tolerance	WT Tolerance	Ovality Tolerance	Cut Length Tolerance
OD≤ 12, 7 mm	± 0, 13 mm	± 15 %	-	+ 3, 18 mm, - 0 mm
12, 7 mm < OD ≤ 38, 1 mm	± 0, 13 mm	± 10 %	max, 1, 65 mm	+ 3, 18 mm, - 0 mm
38, 1 mm < OD ≤ 88, 9 mm	± 0, 25 mm	± 10 %	max, 2, 41 mm	+ 4, 76 mm, - 0 mm
