11Cr Welding Finned Heating Pipe ASTM A355 GR P9 For Copper Pipe ODM

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Serrated, Helical Serrated

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material Grade:	GR.P5 , GR. P9 , GR. P91 , GR. P92 , GR. P2 , GR. P22 , GR. P12 , GR. P11 , GR. P1	Base Tube Material Standard:	ASTM A355 , ASME SA355
Type:	Serrated , Helical Serrated	Application:	Furnace Tube, Tube Coil , Radiate Tube , Convenction Tube , Fired Heater
Fin Type:	Serrated Fins	Fin Material:	Carbon Steel , Stainless Steel , Alloy Steel
Highlight:	11Cr finned heating pipe , GR P9 finned heating pipe , ODM heat fins for copper pipe

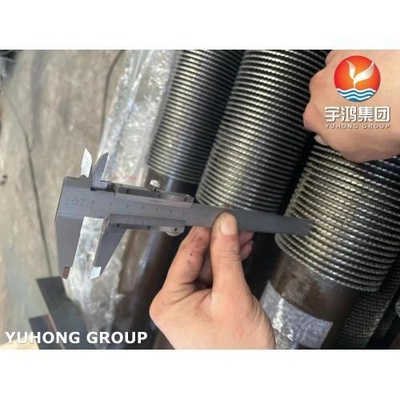

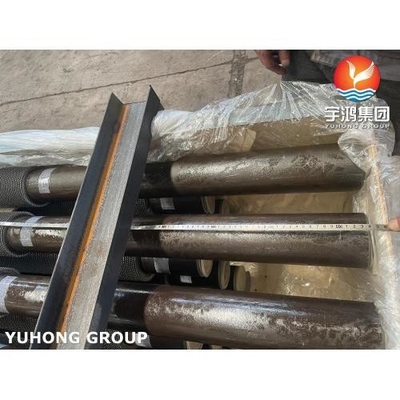

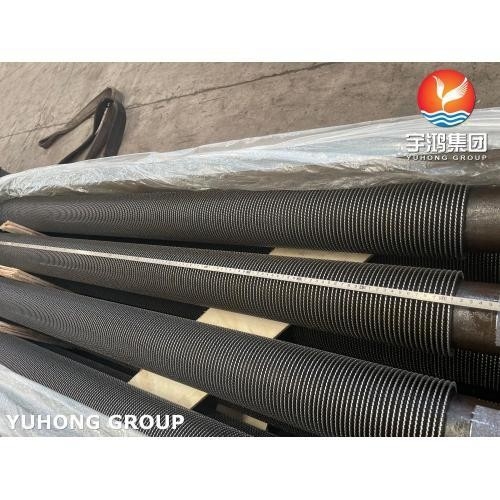

11Cr Welding Finned Heating Pipe ASTM A355 GR P9 For Copper Pipe ODM

Product Specifications

Attribute	Value
Base Tube Material Grade	GR.P5, GR. P9, GR. P91, GR. P92, GR. P2, GR. P22, GR. P12, GR. P11, GR. P1
Base Tube Material Standard	ASTM A355, ASME SA355
Type	Serrated, Helical Serrated
Application	Furnace Tube, Tube Coil, Radiate Tube, Convenction Tube, Fired Heater
Fin Type	Serrated Fins
Fin Material	Carbon Steel, Stainless Steel, Alloy Steel

Product Overview

Welding fin tubes, specifically the helical serrated type with a base tube made of ASTM A335 Grade P9, are advanced heat transfer components designed for high-efficiency applications in demanding environments. This configuration combines the mechanical strength and heat resistance of the base tube with the enhanced heat transfer properties provided by the serrated fins.

Material Properties & Chemical Composition

ASTM A335 Grade P9: This chromium-molybdenum alloy steel offers excellent high-temperature strength, corrosion resistance, and oxidation resistance, making it ideal for high-pressure and high-temperature environments.

Property	Value
Tensile Strength, min.	415 MPa--60 ksi
Yield Strength, min.	205 MPa--30 ksi
Elongation	30%

Element	Composition
C	0.05-0.15
Mn	0.3-0.6
P	0.025 max
S	0.025 max
Si	0.5-1
Cr	1-1.5
Mo	0.44-0.65

Construction Features

Welded Fin Attachment: The fins are welded to the base tube, ensuring a robust and durable bond that can withstand thermal cycling and mechanical stresses.
Helical Serration: The helical arrangement of the fins provides uniform heat distribution and promotes efficient heat transfer.

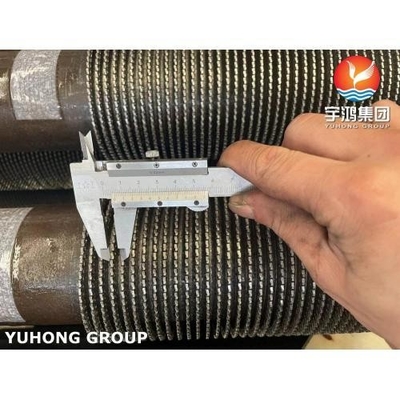

Serrated Fins: The fins are serrated and helically wound around the base tube, increasing surface area and enhancing heat transfer efficiency through boundary layer disruption.

Key Advantages

High Thermal Efficiency: Enhanced heat transfer through increased surface area and turbulent flow promotion
Durability and Longevity: Excellent high-temperature performance and corrosion resistance
Versatility: Suitable for various industrial applications including power generation and petrochemical processing

Industrial Applications

Power Generation
Petrochemical and Refinery Industry
Chemical Processing
Oil and Gas Industry
Industrial Furnaces and Ovens
Renewable Energy
