| Brand Name: | YUHONG |
| Model Number: | Serrated, Helical Serrated |
| MOQ: | 1 PC |
| Price: | 1 - 10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Tons/Month |
| Attribute | Value |
|---|---|
| Base Tube Material Grade | SA192 |
| Base Tube Material Standard | ASME SA192, ASTM A192 |
| Type | Serrated, Helical Serrated |
| Application | Furnace Tube, Tube Coil, Radiate Tube, Convenction Tube, Fired Heater |
| Fin Type | Serrated Fins |
| Fin Material | Carbon Steel, Stainless Steel, Alloy Steel |

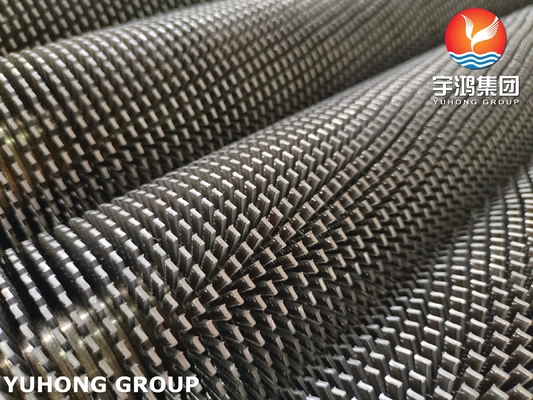

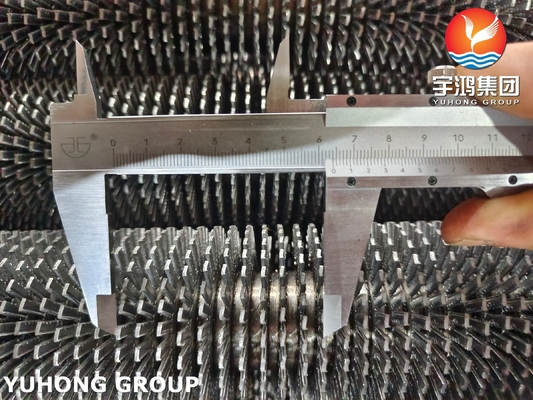

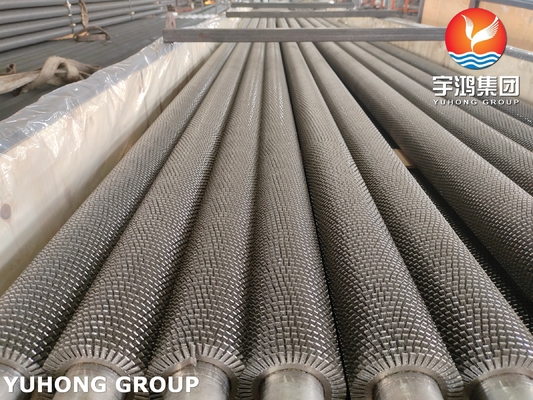

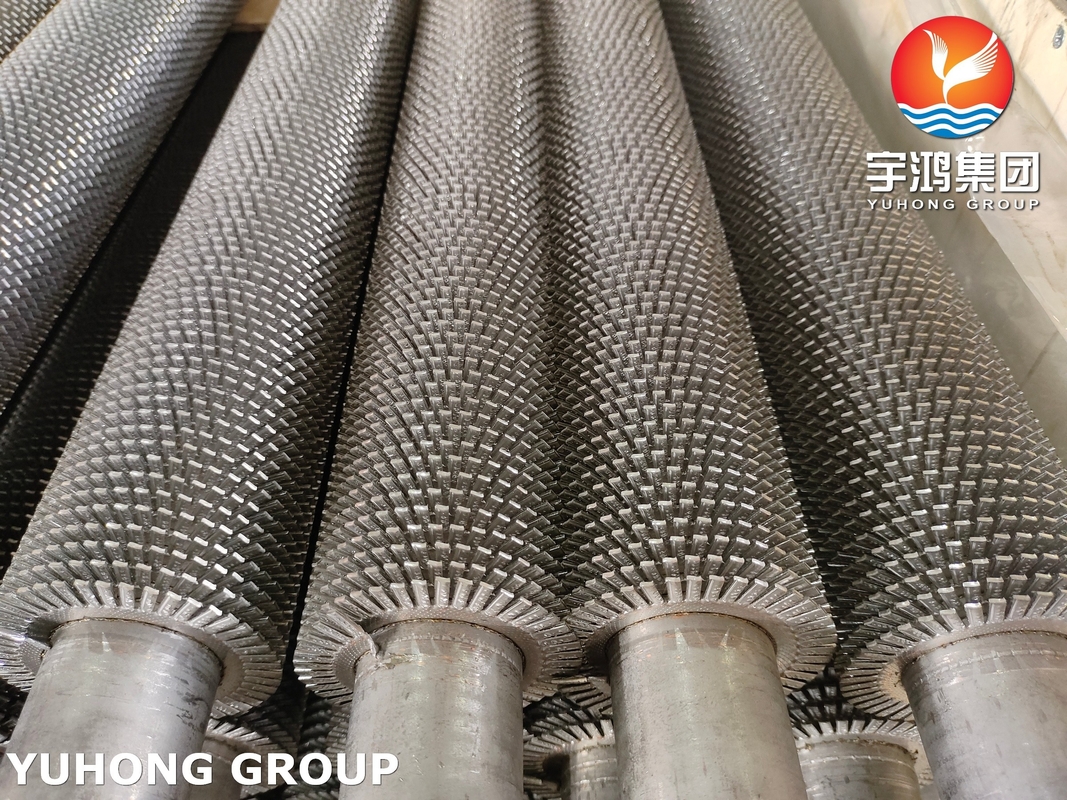

The ASME SA192 Serrated Type Welding Fin Tube is manufactured from carbon steel according to ASME SA192 standard, designed for seamless carbon steel boiler and superheater tubes in high-pressure applications. The serrated fins increase surface area for improved heat exchange efficiency, particularly valuable in space-constrained applications requiring enhanced heat transfer.
| Grade | C | Mn | P | S | Si |
|---|---|---|---|---|---|
| ASME SA192 | 0.06 - 0.18% | 0.27 - 0.63% | 0.035% | 0.035% | 0.10% (typical, not specified) |
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|
| ASME SA192 | Min. 325 MPa (47,100 psi) | Min. 180 MPa (26,100 psi) | Min. 35% (in 2 inches) | Typically ≤ 85 HRB |
