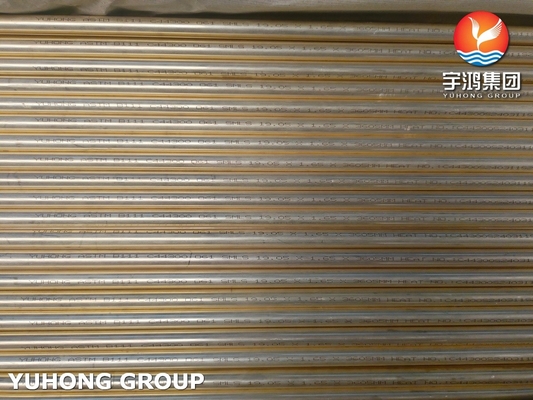

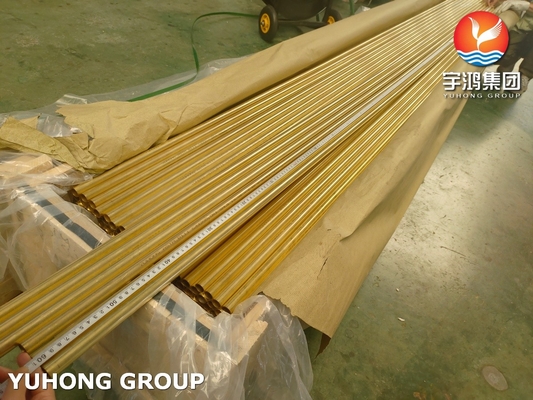

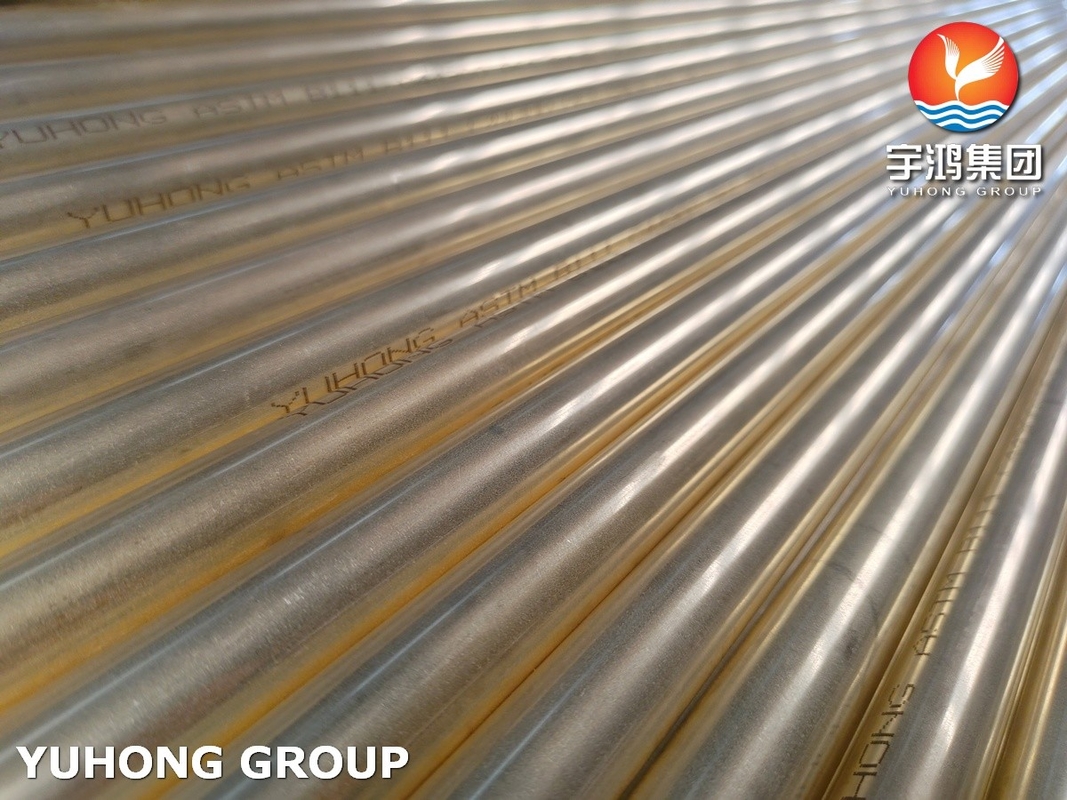

ASTM B111 C44300 Copper Tubes For Condensers

ASTM B111 C44300 Copper Tubes For Condensers

  • ASTM B111 C44300 Copper Tubes For Condensers
  • ASTM B111 C44300 Copper Tubes For Condensers
  • ASTM B111 C44300 Copper Tubes For Condensers
  • ASTM B111 C44300 Copper Tubes For Condensers
ASTM B111 C44300 Copper Tubes For Condensers
Product Details:
Place of Origin: China , Korea
Brand Name: YUHONG
Certification: ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number: Seamless Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 1 - 10000 USD

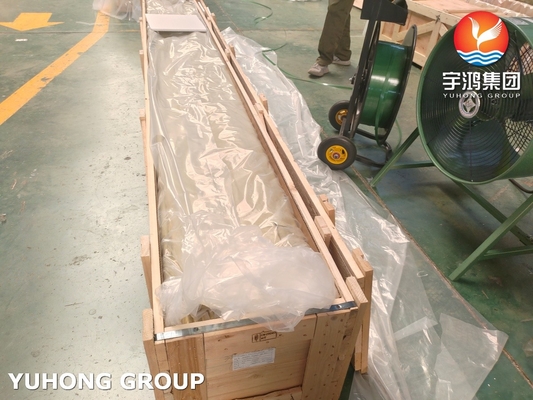

Packaging Details: Ply-Wooden Case + Iron Frame
Delivery Time: 5 - 60 Days
Payment Terms: L/C,T/T
Supply Ability: 10000 Tons/Month
Contact Now Chat Now
Detailed Product Description
Material: C44300 Standard: ASTM B111 , ASME SB111
Ends: PE , BE Application: Heat Exchangers, Condensers, Coolers, Etc.
Highlight:

C44300 carbon steel heat exchanger tubes

,

SA 179 carbon steel heat exchanger tubes

,

ODM sa 179 tube

ASTM B111 C44300 Copper Tubes For Condensers
Product Specifications
In condenser systems, the core function of ASTM B111 C44300 copper tubes is to facilitate efficient heat transfer in highly corrosive environments. The aluminum (approximately 0.8-1.2%) and arsenic (approximately 0.02-0.06%) in its composition create a unique protective mechanism: aluminum forms a dense aluminum oxide film on the tube surface, significantly enhancing resistance to seawater corrosion and erosion, while arsenic addition effectively inhibits dezincification, extending the service life of the tubes. Meanwhile, the material retains the excellent thermal conductivity of brass, enabling rapid transfer of latent heat during condensation and significantly improving heat exchange efficiency. Particularly in coastal power plants or marine systems, C44300 tubes provide long-term resistance to corrosion from seawater, marine atmospheres, and contaminated water, making them an irreplaceable key material for condenser tube bundles.
Product Description

The ASTM B111 C44300 O61 Copper Alloy Steel Heat Exchanger Tube is manufactured to meet strict quality standards for condenser and heat exchanger applications. This specification ensures material consistency, mechanical performance, and dimensional accuracy for reliable heat transfer systems.

The C44300 designation represents a copper-silicon alloy (90-10 copper-silicon) known for its excellent corrosion resistance and thermal conductivity. The O61 temper indicates an annealed condition, providing optimal formability and stress relief for manufacturing processes.

Chemical Composition
Grade Cu Zn Sn As
ASTM B111 C44300 70-73% 27-29% 0.8-1.2% 0.02-0.06%
Mechanical Properties
Grade Temper Yield Strength Tensile Strength Elongation
ASTM B111 C44300 O61 (annealed) 105 MPa (15 ksi) 275 MPa (40 ksi) ≥ 35%
Industrial Applications
  • Marine heat exchangers and condensers
  • Cooling systems for industrial equipment
  • Air conditioning and refrigeration systems
  • Power plant cooling systems
  • Desalination and chemical processing plants
  • Oil and lubrication coolers
  • Evaporators and condensers in various industries
ASTM B111 C44300 Copper Tubes For Condensers 0
