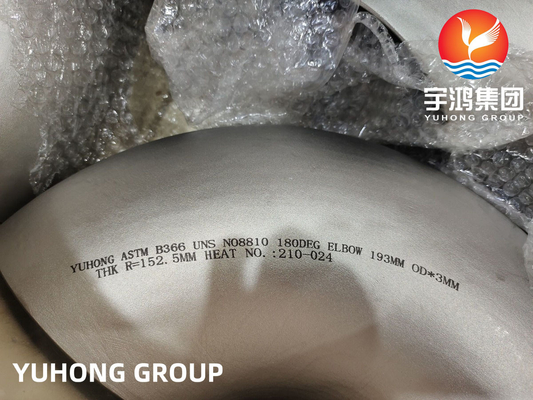

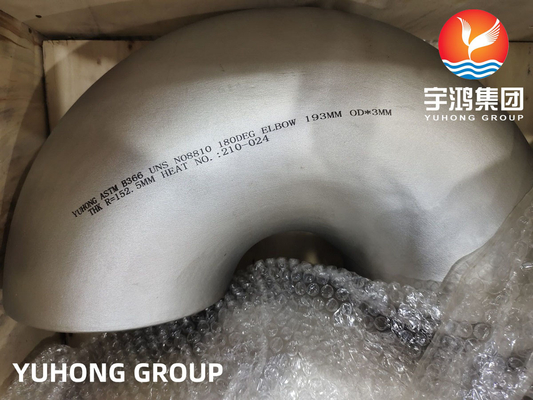

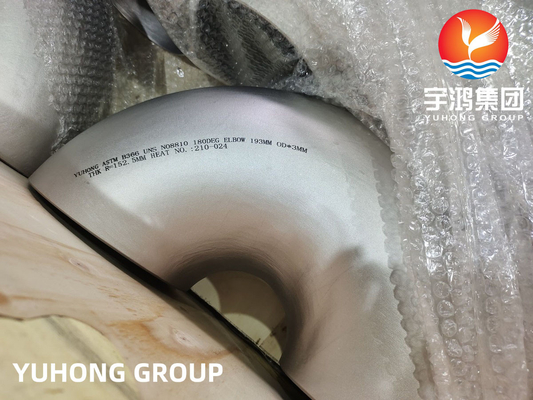

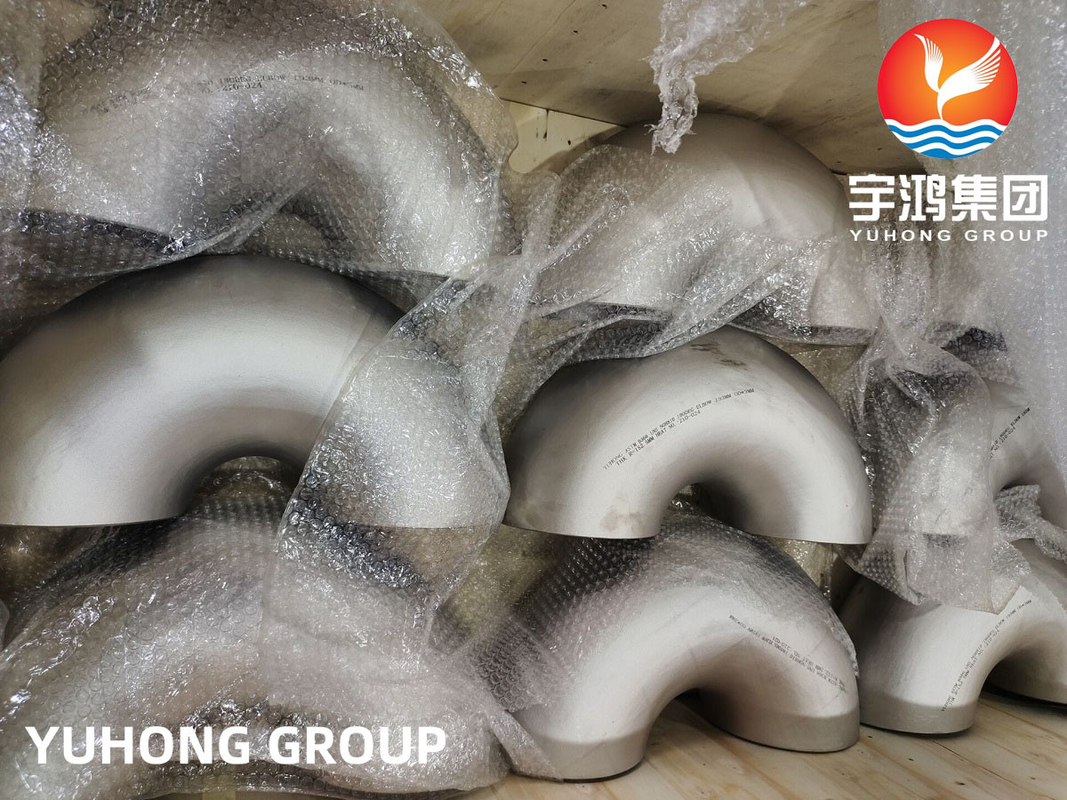

ASTM B366 Incoloy Elbow In Chemical Processing

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	180 DEG. ELBOW

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Delivery Time:	5 - 90 Days
Payment Terms:	L/C,T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Material:	INCOLOY 800H, NO8810	Standard:	ASTM B366
Radius:	LR ( Long Radius ) , SR ( Short Radius )	Testing:	UT , PT , PMI
Size:	1/2 Inch - 98 Inch	Application:	Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section
Highlight:	ASTM B366 steel bend pipe , Short Radius steel bend pipe , Incoloy 800H return bend pipe

ASTM B366 Incoloy Elbow In Chemical Processing

Product Description

ASTM B366 is a specification for nickel-iron-chromium alloy fittings, including elbow butt weld fittings, made from Incoloy 800H material. Incoloy 800H is a high-temperature alloy that offers excellent resistance to oxidation, carburization, and other forms of high-temperature corrosion.

These fittings are commonly used in demanding applications such as chemical processing, heat treating, and power generation due to their superior performance in extreme conditions.

Common Types

90-degree long radius elbow: Provides smoother flow and reduces pressure drop in piping systems
90-degree short radius elbow: Compact design ideal for tight spaces
45-degree long radius elbow: Allows gradual direction change when 90-degree turns aren't possible
45-degree short radius elbow: Space-saving design that reduces pressure drop

Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min
800H	0.05 - 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min
800HT	0.06 - 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 - 3.00	22.00 min

Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi - 75,000, MPa - 520	Psi - 30,000, MPa - 205
825	8.14 g/cm3	1400 °C (2550 °F)	Psi - 80,000, MPa - 550	Psi - 32,000, MPa - 220

Industrial Applications

Chemical Processing
Petrochemical Industry
Power Generation
Oil and Gas Industry
Pharmaceutical Industry
Food Processing Industry
