| Brand Name: | YUHONG |
| Model Number: | Extruded Fin tube , Aluminum Extruded Fin tube |
| MOQ: | 1 PC |
| Price: | 1 - 10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Tons/Month |
| Attribute | Value |
|---|---|
| Base Tube Material Grade | TP304 |
| Base Tube Material Standard | ASME SA269, ASTM A269 |
| Type | Straight Tube, U bend Tube, Coil Tube |
| Application | Air cooler, Cooling Tower, Heat Exchanger, Condenser |
| Fin type | Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube |
| Fin Material | Aluminum, Copper, Stainless Steel, Carbon Steel |

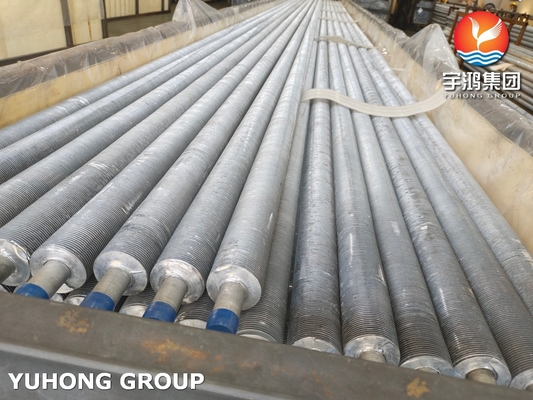

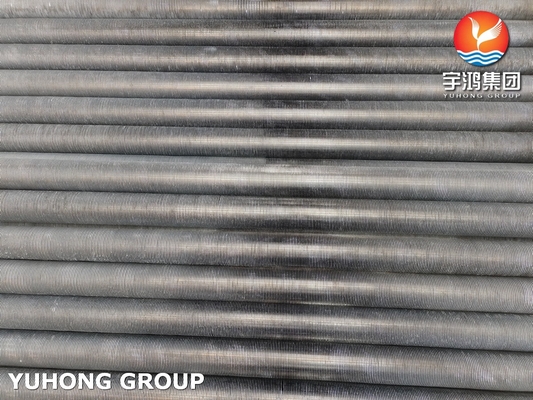

The ASTM A269 TP304 Extruded Fin Tube is a high-efficiency heat transfer component made from austenitic stainless steel. The TP304 grade offers excellent corrosion resistance and mechanical properties, while the extruded fin design significantly enhances heat transfer surface area for demanding applications.
The integrally formed extruded fin design creates a strong bond with the tube material, maximizing heat transfer efficiency. This construction provides high resistance to oxidation and thermal stress, making it ideal for high-temperature environments.
| Grade | C | Ni | Mn | Si | P | S |
|---|---|---|---|---|---|---|
| TP304 | 0.08% max | 8.0-11.0% | 2.0% max | 1.0% max | 0.045% max | 0.030% max |
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|
| TP304 | ≥ 515 MPa (75 ksi) | ≥ 205 MPa (30 ksi) | ≥ 35% in 50 mm | Typically ≤ 90 HRB |
