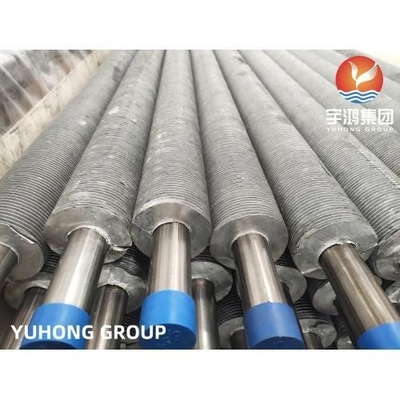

Bulk SA249 TP304 Aluminum Fin And Tube Heat Exchangers Extrusions

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material Grade:	TP304	Base Tube Material Standard:	ASTM A249, ASME SA249
Type:	Straight Tube , U Bend Tube , Coil Tube	Application:	Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type:	Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube	Fin Material:	Aluminum , Copper , Stainless Steel , Carbon Steel
Highlight:	Bulk fin and tube heat exchangers , fin and tube heat exchangers Extrusions , Bulk finned aluminum extrusions

Bulk SA249 TP304 Aluminum Fin And Tube Heat Exchangers Extrusions

Product Overview

Extruded Fin Tube, ASME SA249 TP304 Finned Tube designed for optimal heat transfer in exchangers and air coolers. Manufactured to meet rigorous ASTM A249 and ASME SA249 standards for superior performance and durability.

Key Specifications

Base Tube Material Grade	TP304
Material Standard	ASTM A249, ASME SA249
Tube Types	Straight Tube, U Bend Tube, Coil Tube
Primary Applications	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Types	Extruded Fin tube, Aluminum Extruded Fin tube
Fin Materials	Aluminum, Copper, Stainless Steel, Carbon Steel

Technical Description

ASME SA249 TP304 specifies welded austenitic steel tubes for heat exchangers, boilers, and condensers. The TP304 stainless steel grade offers exceptional corrosion resistance and high-temperature strength, making it ideal for demanding industrial applications.

Finned tubes feature external fins that significantly increase surface area, enhancing heat transfer efficiency between internal fluids and external environments. Our extruded fin tubes are precision-engineered for maximum thermal performance in heat exchanger systems.

Detailed Specifications

Specification: ASME SA249

Grade: TP304

Application: Oil Cooler, Pre Heater, Radiator

Type: Extruded

Fin Grade: Al 1060

Shape: Round

Material Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Thermal Expansion (μm/m/°C)	Thermal Conductivity (W/m.K)
304	8000	193	17.2	16.2

Industrial Applications

Air-cooled heat exchangers: Efficiently transfer heat from process fluids to surrounding air
Shell and tube heat exchangers: Optimal performance in contained fluid systems
Condensers: Effective vapor condensation through enhanced heat transfer
Radiators: Superior heat dissipation for industrial and automotive systems
