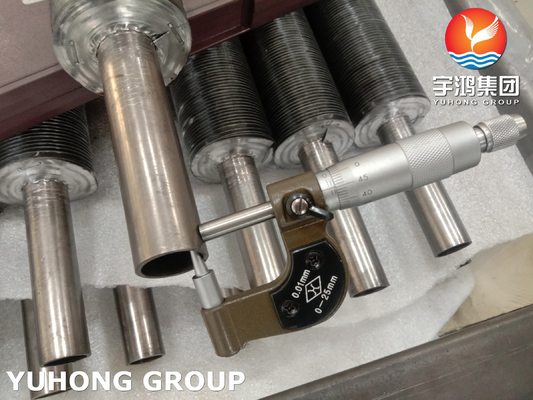

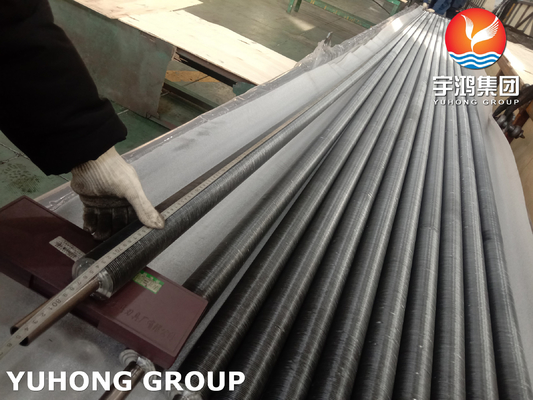

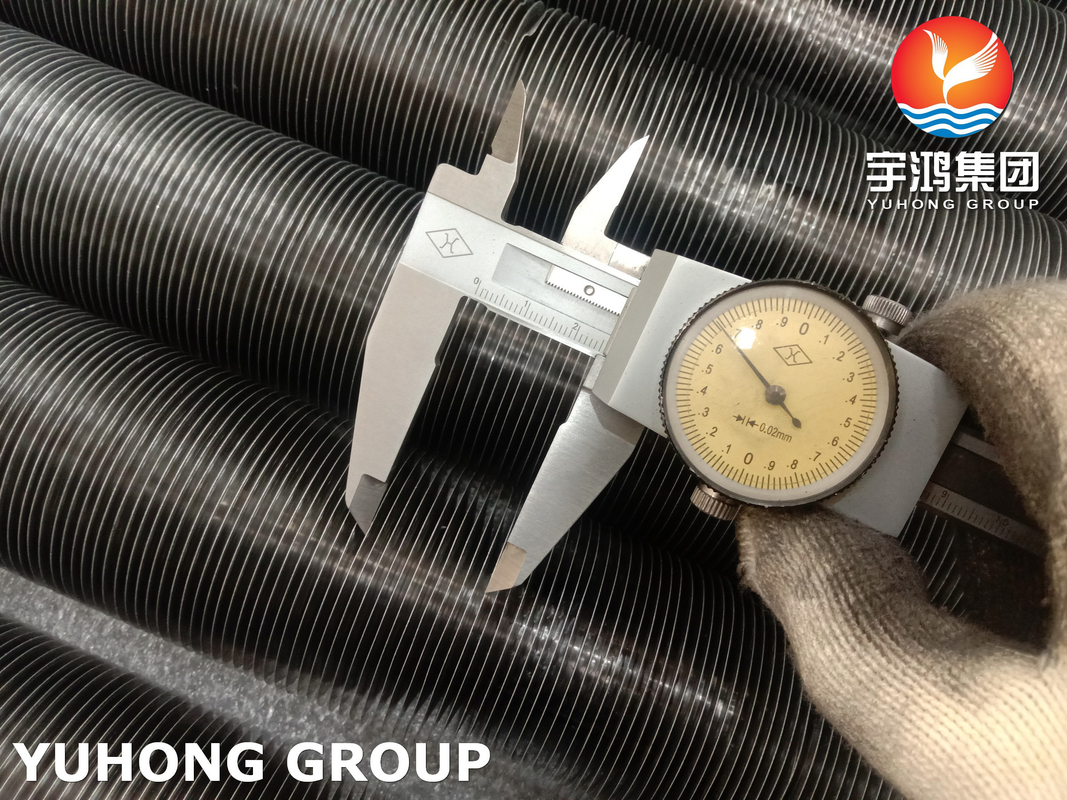

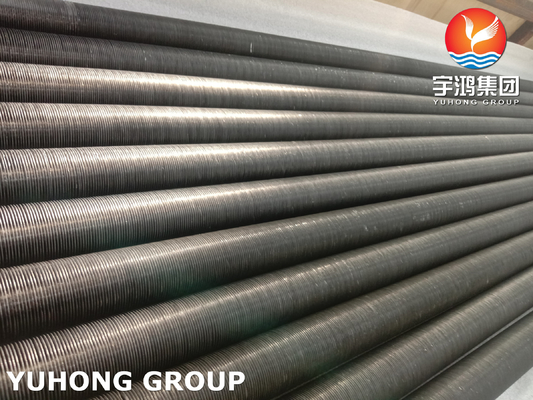

Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs

Extruded fin tubes feature fins formed by extruding a sleeve of aluminum or other materials over a base tube, creating a strong mechanical bond. This process delivers high-efficiency heat transfer with exceptional durability and resistance to thermal and mechanical stresses.

Widely used in air-cooled heat exchangers (ACHEs), these tubes provide superior heat transfer capabilities and robust construction. They efficiently transfer heat from process fluids within the tubes to surrounding air through the attached fins.

As integral components in industrial cooling systems, extruded fin tubes offer high efficiency, durability, and reliability across various applications. Their enhanced heat transfer performance and rugged construction make them ideal for demanding environments requiring efficient cooling and long service life.

• Tube Diameter: 20 mm OD Min to 219 mm OD Max
• Tube Thickness: Minimum 2 mm up to 16mm
• Tube Material: Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickel & Incolloy, CK 20 material

• Fins Thickness: Min. 0.8 mm to Max. 4 mm
• Fins Height: Min 0.25" (6.35 mm) To Max.1.5" (38 mm)
• Fin Density: Min 43 Fins Per Meter To Max. 287 Fins Per Meter
• Material: Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy

• Marine engineering
• Chemical and hydrocarbon processing equipment
• Gasoline and freshwater tanks
• Crude petroleum stills
• De-aerating heaters
• Boiler feed water heaters and other heat exchangers
• Valves, pumps, shafts, fittings, and fasteners
• Industrial heat exchangers
• Chlorinated solvents
• Crude oil distillation towers
