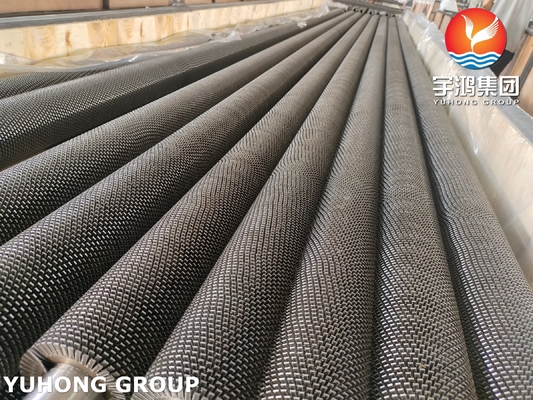

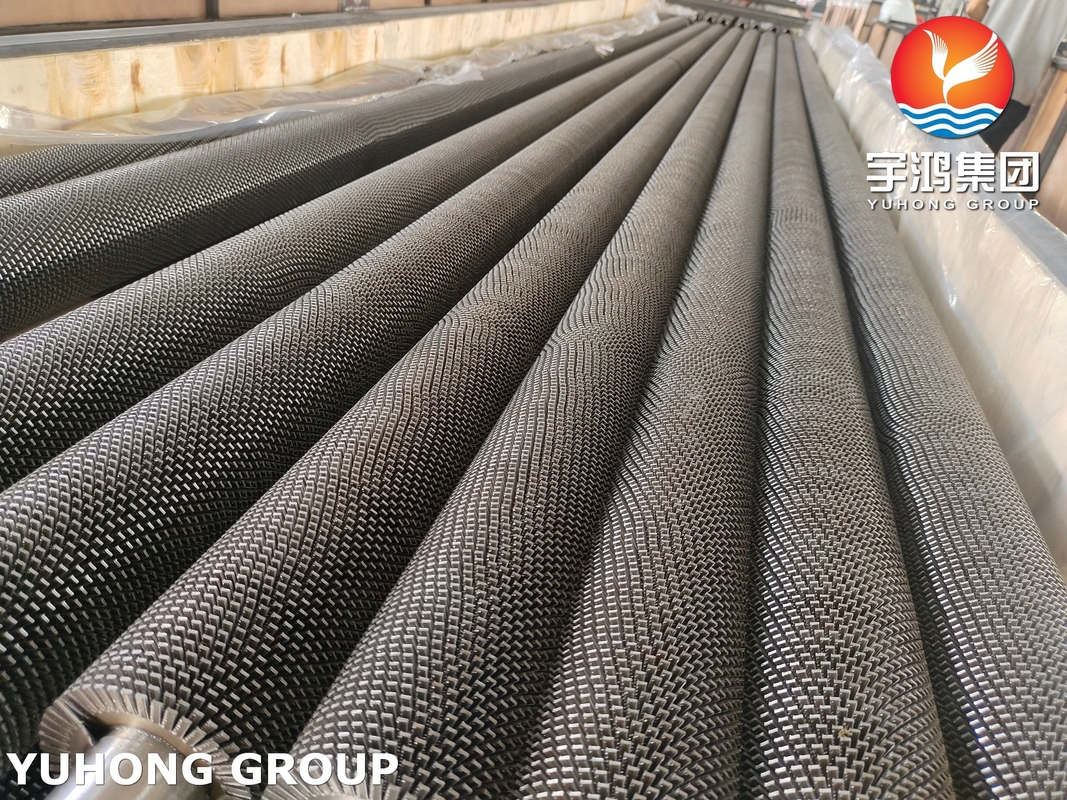

ODM 3/8" Serrated Finned Tube ASME SA192 For Boiler And Air Heat Exchanger

Product Details:

Place of Origin:	China, Korea
Brand Name:	YUHONG
Certification:	ASME, ASTM, ABS, DNV-GL, LR, BV, CCS, KR, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Serrated Finned tube

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	10-1000 USD/PC
Packaging Details:	STEEL FRAME CASE
Delivery Time:	20-90 DAYS
Payment Terms:	T/T,L/C
Supply Ability:	10000 TONS PER MONTH

Contact Now Chat Now

Detailed Product Description

Base Tube Standard:	ASME SA192	Bare Tube Diameter:	1" - 8.625"

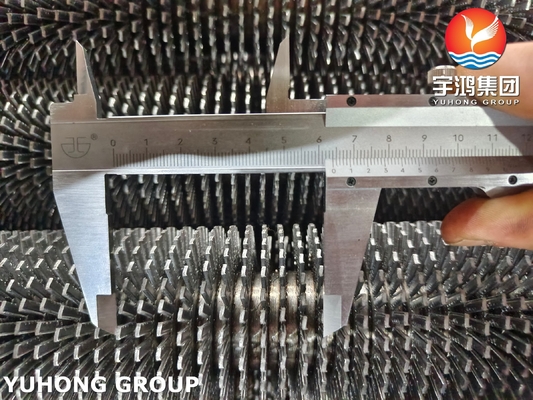

Fin Pitch:	1 Fin/in - 7 Fin/in	Fin Height:	3/8" - 1-1/2"
Fin Thick:	0.035" - 0.075"
Highlight:	ODM Serrated Finned tube , ASME SA192 Serrated Finned tube , ODM finned tube air heat exchangers

ODM 3/8" Serrated Finned Tube ASME SA192 For Boiler And Air Heat Exchanger

Product Specifications

Attribute	Value
Base Tube Standard	ASME SA192
Bare Tube Diameter	1" - 8.625"
Fin Pitch	1 fin/in - 7 fin/in
Fin Height	3/8" - 1-1/2"
Fin Thick	0.035" - 0.075"

Product Overview

ASME SA192 Serrated Finned Tubes are specialized heat transfer components designed for enhanced efficiency in boiler and heat exchanger applications across power generation, petrochemical, and refinery industries.

Key Features

Material Standard: Base tube complies with ASME SA192 specification for high-pressure boiler applications, offering excellent thermal conductivity and high strength.

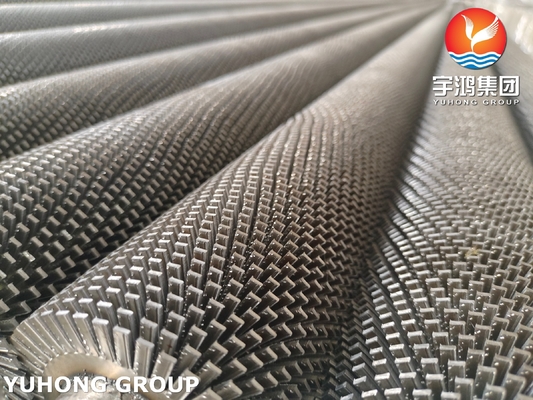

Serrated Fins: Segmented fin design increases turbulence for superior heat transfer compared to plain fins.
Heat Transfer Efficiency: Serrated design disrupts laminar flow to maximize heat exchange between fluid and finned surface.
Corrosion Resistance: Customizable fin materials available for harsh operating environments.
Durability: Engineered to withstand extreme temperatures and pressures in demanding applications.

Performance Advantages

Enhanced heat transfer through increased surface area
Compact equipment design enabled by superior thermal performance
Reduced operational energy costs
Extended service life in extreme conditions

Industrial Applications

Boilers

Economizers

Heat Exchangers

Petrochemical Plants

Refineries

Power Generation
