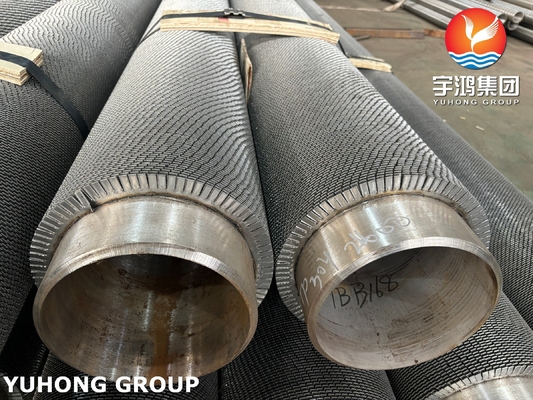

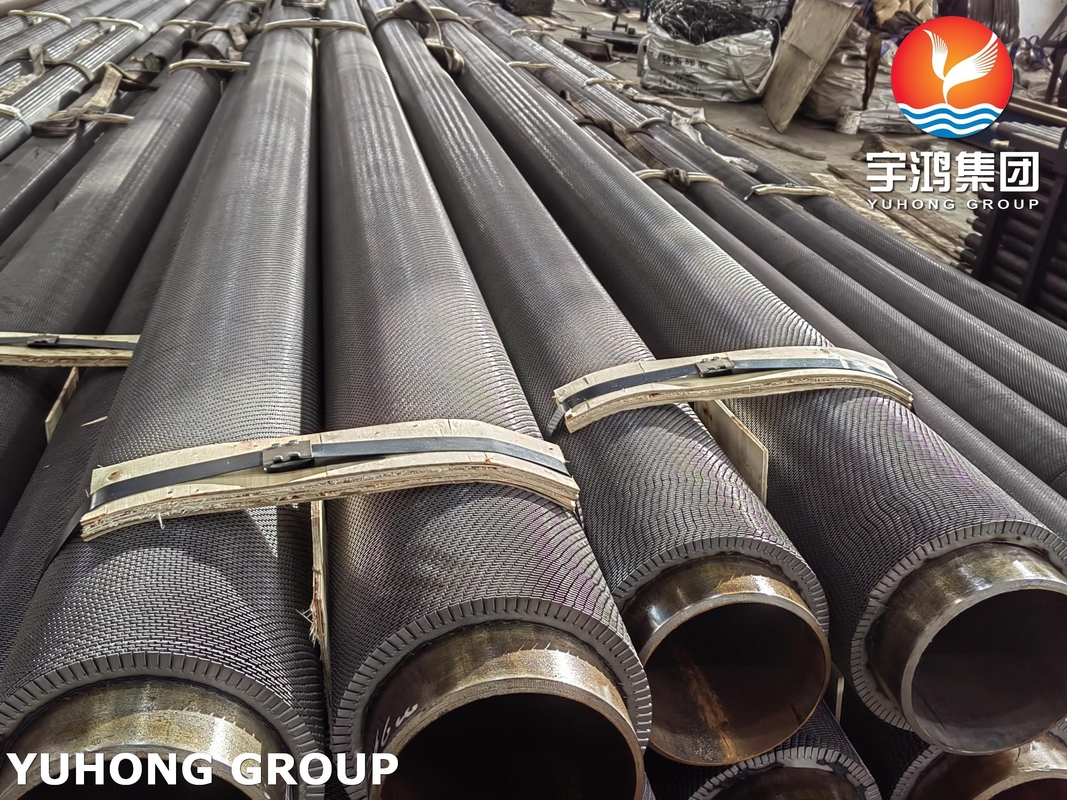

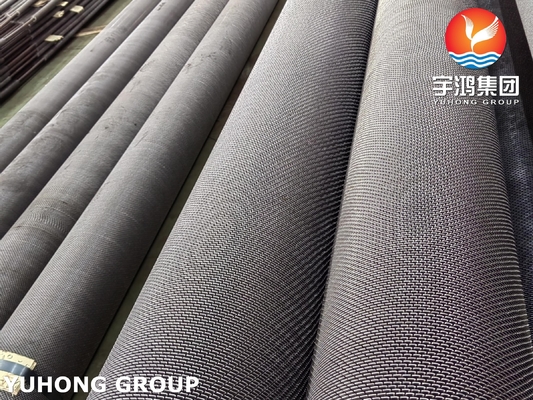

Hot Water Serrated Fin Tube Pipe AISI 304 316SS For Superheater HVAC

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG GROUP

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1--10000 USD
Packaging Details:	IRON FRAME CASE WITH PLASTIC CAP
Delivery Time:	5---75 days
Payment Terms:	L/C, T/T
Supply Ability:	10000 tons/month

Contact Now Chat Now

Detailed Product Description

Fin Wall Thickness:	0.8-3mm	Certification:	ASME, U STAMP, API,ASME, ABS, LR, DNV, GL , BV, KR, TS, CCS
Base Tube Material:	TP304, TP316, TP321 TP347	Fin Pitch:	FPI: 3-25
Fin Material:	AISI 304,316,409,410,321,347	Fin Height:	5-30mm
Length:	Max 43M/PC
Highlight:	AISI 304 Serrated Finned tube , HVAC Serrated Finned tube , 316ss hot water fin tube

Hot Water Serrated Fin Tube Pipe AISI 304 316SS For Superheater HVAC

Product Specifications

Attribute	Value
Fin Wall thickness	0.8-3mm
Certification	ASME, U STAMP, API, ASME, ABS, LR, DNV, GL, BV, KR, TS, CCS
Base Tube Material	TP304, TP316, TP321 TP347
Fin pitch	FPI: 3-25
Fin Material	AISI 304,316,409,410,321,347
Fin height	5-30mm
Length	Max 43M/PC

ASTM A106 Gr.B Base Tube Composition

Carbon, max: 0.30
Manganese: 0.29-1.06
Phosphorus, max: 0.035
Sulfur, max: 0.035
Silicon, min: 0.10
Chromium, max: 0.40
Copper, max: 0.40
Molybdenum, max: 0.15
Nickel, max: 0.40
Vanadium, max: 0.08

Applications

Heat Exchangers: Ideal for shell-and-tube configurations where efficient heat transfer is critical
Cooling Systems: Enhances cooling efficiency in chillers and condensers
HVAC Systems: Improves thermal regulation and energy efficiency
Industrial Processes: Essential for petrochemical, power generation, and manufacturing applications
Refrigeration: Boosts heat exchange performance for energy savings

Key Advantages

Increased Surface Area: Serrated design maximizes heat transfer efficiency
Improved Fluid Dynamics: Promotes turbulent flow for enhanced heat transfer rates
Material Efficiency: Cost-effective carbon steel solution
Corrosion Resistance: Suitable for various environments when treated
Energy Savings: Reduces consumption in heating and cooling systems

Our serrated fin tubes represent the largest size currently producible in our facility. The innovative serrated fin design significantly increases the pipe's surface area, enhancing heat exchange capacity with surrounding media (air or liquid). The unique fin configuration creates turbulent flow patterns that optimize thermal transfer, making these tubes ideal for applications in air conditioning, cooling systems, heaters, and other equipment requiring superior heat exchange performance.
