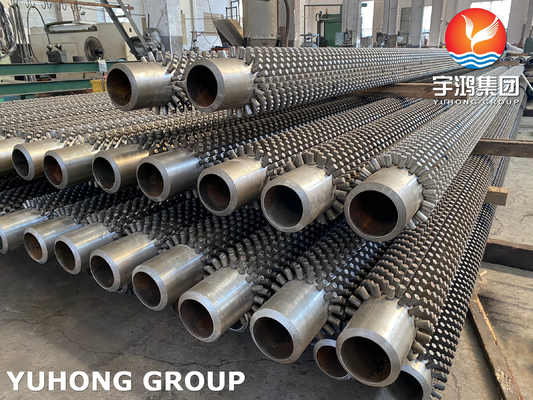

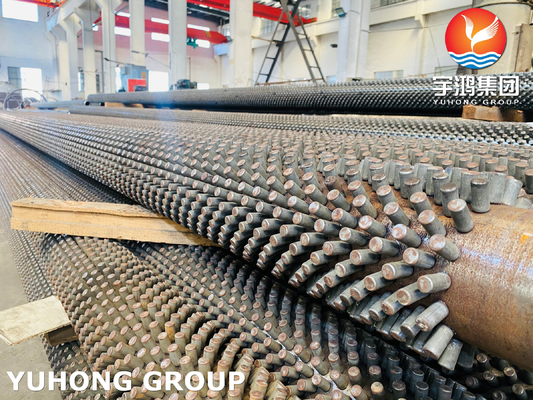

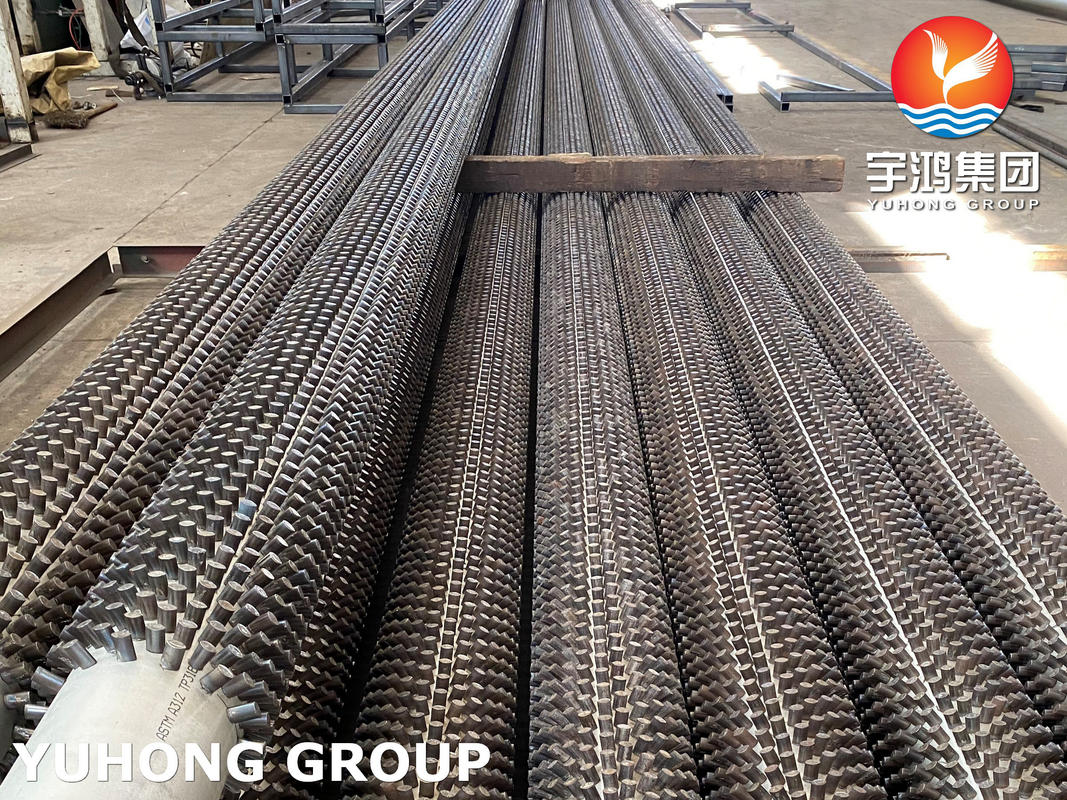

ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators

ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators

  • ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators
  • ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators
  • ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators
ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG GROUP
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: IRON FRAME CASE WITH PLASTIC CAP
Delivery Time: According to the quantity
Payment Terms: L/C,T/T
Supply Ability: 10000 tons/month
Contact Now Chat Now
Detailed Product Description
Base Tube Material: Alloy Steel, T1, T5, T9, T11, T12, T22, T91, T92 Length: Max 43M/PC
Fin Pitch: 0.8-3mm Fin Pitch: FPI: 3-25
Fin Height: 5-30mm Product Name: Stainless Steel Studded Tube
Highlight:

TP316L Studded Tube

,

ODM Studded Tube

,

ODM fintube cooling systems

ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators
Product Specifications
Base Tube Material Alloy Steel, T1, T5, T9, T11, T12, T22, T91, T92
Length Max 43M/PC
Fin Pitch 0.8-3mm
Fin Pitch (FPI) 3-25
Fin Height 5-30mm
Product Name Stainless Steel Studded Tube
Applications
  • Chemical industry: Used in reactors, condensers and evaporators
  • Oil and gas: For heat exchangers, heaters and coolers
  • Food and pharmaceutical: For sanitary heat exchange equipment
  • Power industry: Used in boilers and waste heat recovery systems
Key Advantages
Corrosion Resistance

TP316L stainless steel has excellent corrosion resistance to chloride and acidic environments.

High Temperature Resistance

Suitable for high temperature environments.

Mechanical Strength

Good tensile strength and durability.

Efficient Heat Transfer

The nail head design increases surface area and improves heat exchange efficiency.

Quality Verification
  • Material Certificate: Check for compliance with ASTM A312/ASME SA312 standards
  • Weld quality: Verify the weld quality of the nail head by non-destructive testing, such as ultrasonic or X-ray inspection
  • Size inspection: Ensure that the size of the base tube and nail head meet design requirements
  • Pressure test: Perform water pressure or air pressure test to ensure tightness and strength
ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators 0 ODM A312 TP316L Studded Tube Fintube Cooling Systems For Reactors Evaporators 1
