| Brand Name: | YUHONG |
| Model Number: | High Frequency weld fin tube, Welding fin tube, Fin Tube, Finned Tube, Solid Fin tube , Pin Tube , Studded Tube , Studded Fin Tube |
| MOQ: | 1PC |
| Price: | 1--10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 tons/month |
| Attribute | Value |
|---|---|
| Base Tube Material Standard | ASTM A213, ASME SA213, ASTM A335, ASME SA335 |
| Base Tube Material Grade | T9, P9, STPA 26, S50400, 3604 P1 629-470, 2604 II TS38 |
| Type | Straight Tube, U bend Tube, Coil Tube, Snake Tube |
| Application | Furnace Tube, Tube Coil, Radiate Tube, Convenction Tube, Fired Heater |
| Welding type | High Frequency Welding |
| Fin Material | 13Cr (SS410, 1Cr13, 2Cr13, 3Cr13), 11Cr(SS409), ASTM A387 GR.9, CS |
| C | Si | Mn | P | S | Cr | Ni | Mo | Fe |
|---|---|---|---|---|---|---|---|---|
| ≤0.15 | 0.25~1.0 | 0.3~0.6 | ≤0.025 | ≤0.025 | 8.0~10.0 | / | 0.9~1.1 | / |
| Tensile Strength: Rm (Mpa) | Yield Strength: Rp 0.2(Mpa) | Elongation: A (%) |
|---|---|---|
| ≥415 | ≥205 | ≥30 |
| Items | General Materials | Popular ASTM/ASME Materials |
|---|---|---|
| Core Tube Material | Carbon Steel, Alloy Steel, Heat Resistant Steel, Stainless Steel |
1. Carbon Steel: A106 Gr. B
2. Stainless Steel: TP304, TP304L, TP304H, TP316L, TP316H, TP347, TP347H, TP321, TP321H, TP317, TP317L, TP310H
3. Alloy Steel: P1, P11, P22, P23, P5, P9, P91, P92, T1, T11, T12, T22, T23, T5, T9, T91, T92
|

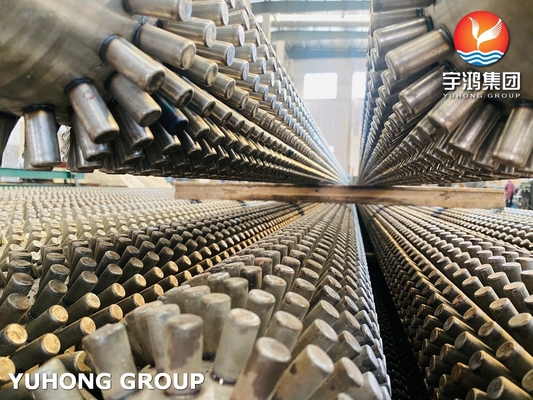

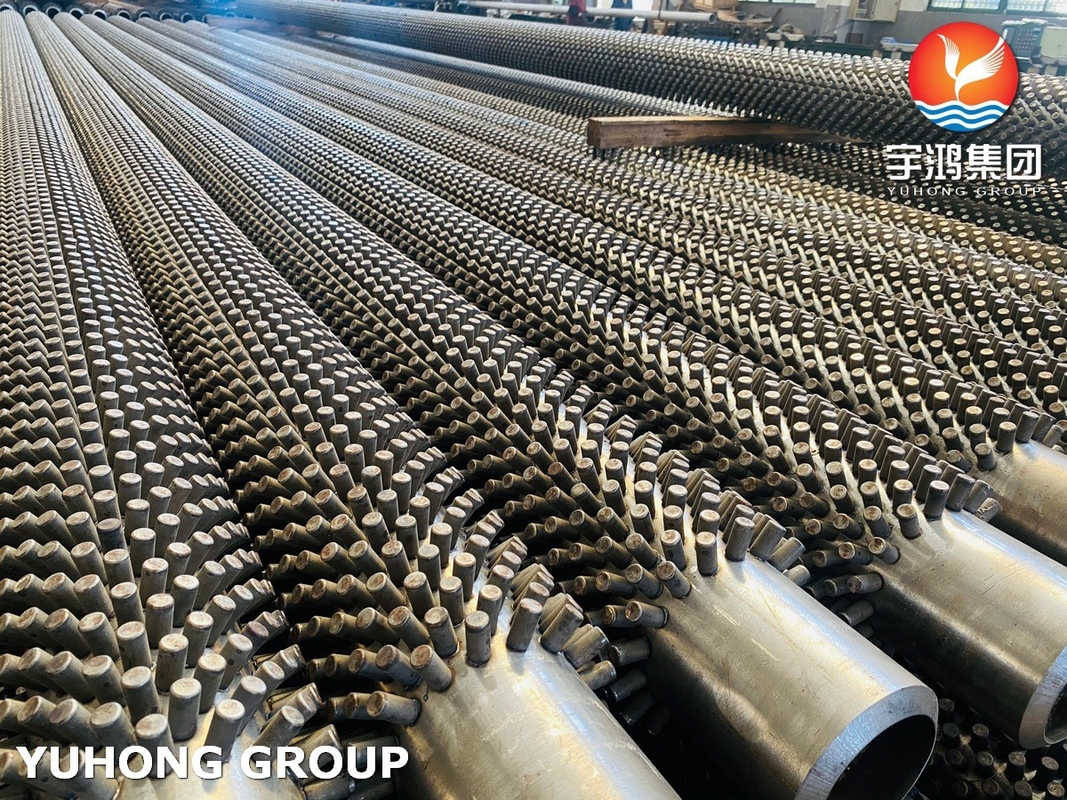

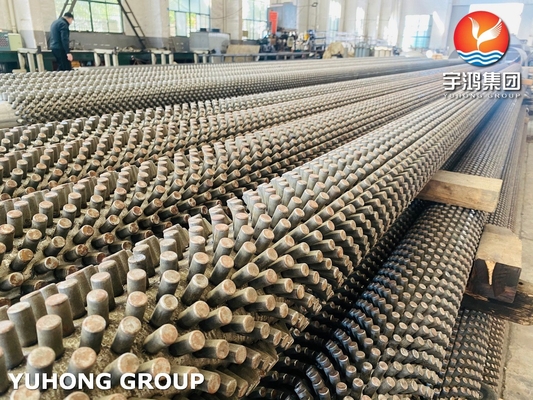

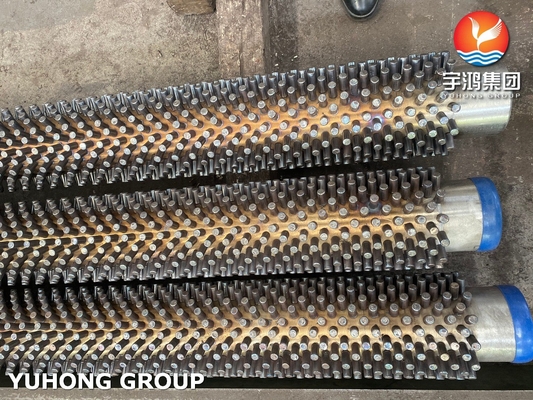

| Studs Material | Carbon Steel, Stainless Steel |
1. Carbon Steel: CS
2. Stainless Steel: ASTM A240 SS409, SS410, SS304, SS316L, SS321
3. Alloy Steel: ASTM A387 GR.11, GR.22, GR.5, GR.9
|
| General Studded Tubes Production Capacity | General Specifications |
|---|---|
|
- 4 finning machines
- Daily capacity: 100,000 studs/day
|
- Tube OD: 325 mm max
- Tube Thickness: 3mm~30mm
- Tube Length: 34 meters max
- Studs OD: dia.6mm~25.4mm
- Studs Height: 10mm Min~50.8mm Max
|
