P11 Alloy Steel Stainless Steel Finned Studded Tube Pipe For Fired Heater Oil Refinary

Product Details:

Place of Origin:	China,Korea
Brand Name:	YUHONG
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	Studded Tube, Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Delivery Time:	5---75 days
Payment Terms:	L/C, T/T
Supply Ability:	10000 tons/month

Contact Now Chat Now

Detailed Product Description

Base Pipe:	Alloy Steel Seamless Pipe: ASTM A335 P11, P12, P1, P22, P23, P5, P9, P91, P92	Stud Material:	Carbon Steel, Stainless Steel 11Cr, 13Cr, ASTM A387 Gr.9
Welding Type:	High Frequency Welding	Fin Type:	Studded Tube, Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube
Stud Hight:	8mm~ 50.8mm	Stud Diameter:	12.7mm, 15.88mm, 19.05mm , 25.4mm
Highlight:	P11 Alloy Studded Tube , finned Studded Tube , Oil Refinary stainless steel finned tube

P11 Alloy Steel Stainless Steel Finned Studded Tube Pipe For Fired Heater Oil Refinery

Product Specifications

Attribute	Value
Base Pipe	Alloy Steel Seamless Pipe: ASTM A335 P11, P12, P1, P22, P23, P5, P9, P91, P92
Stud material	Carbon Steel, Stainless Steel 11Cr, 13Cr, ASTM A387 Gr.9
Welding Type	High Frequency Welding
Fin Type	Studded Tube, Pin Tube, Oil Furnace Tube, Steam Furnace Tube, Reforming Tube

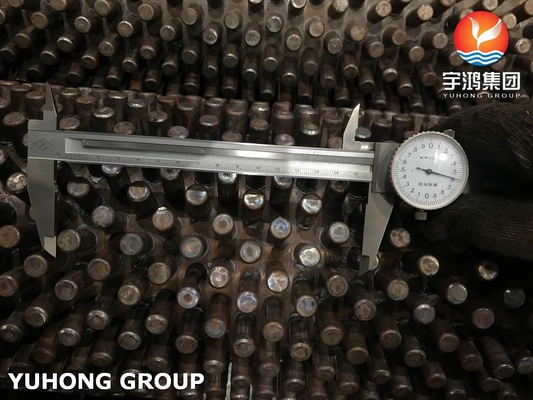

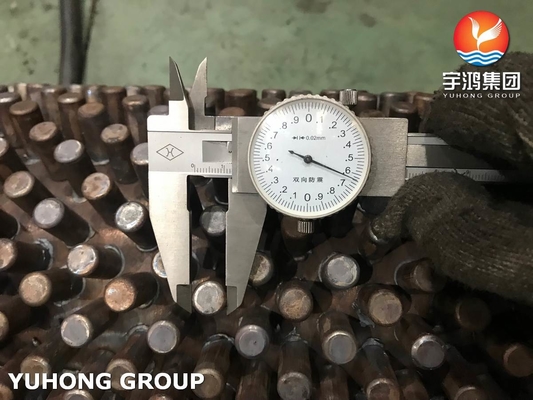

Stud Height	8mm~50.8mm
Stud Diameter	12.7mm, 15.88mm, 19.05mm, 25.4mm

Product Overview

Yuhong Holding Group brings over 35 years of experience in pipeline products manufacturing, operating three joint venture factories spanning more than 130,000 square meters. With 600 skilled workers and 106 production lines, we provide exceptional support to our clients.

Certifications

ABS, LR, DNV-GL, BV, KR, CCS, ASME, ISO 9001, ISO 14001, ISO 18001

Manufacturing Process

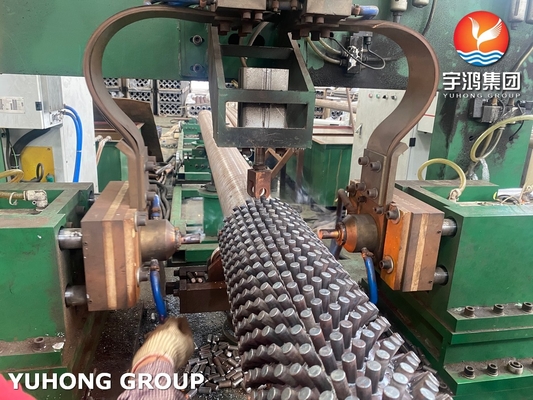

Studs are fully automatically welded onto the tube by resistance welding for consistent quality and performance.

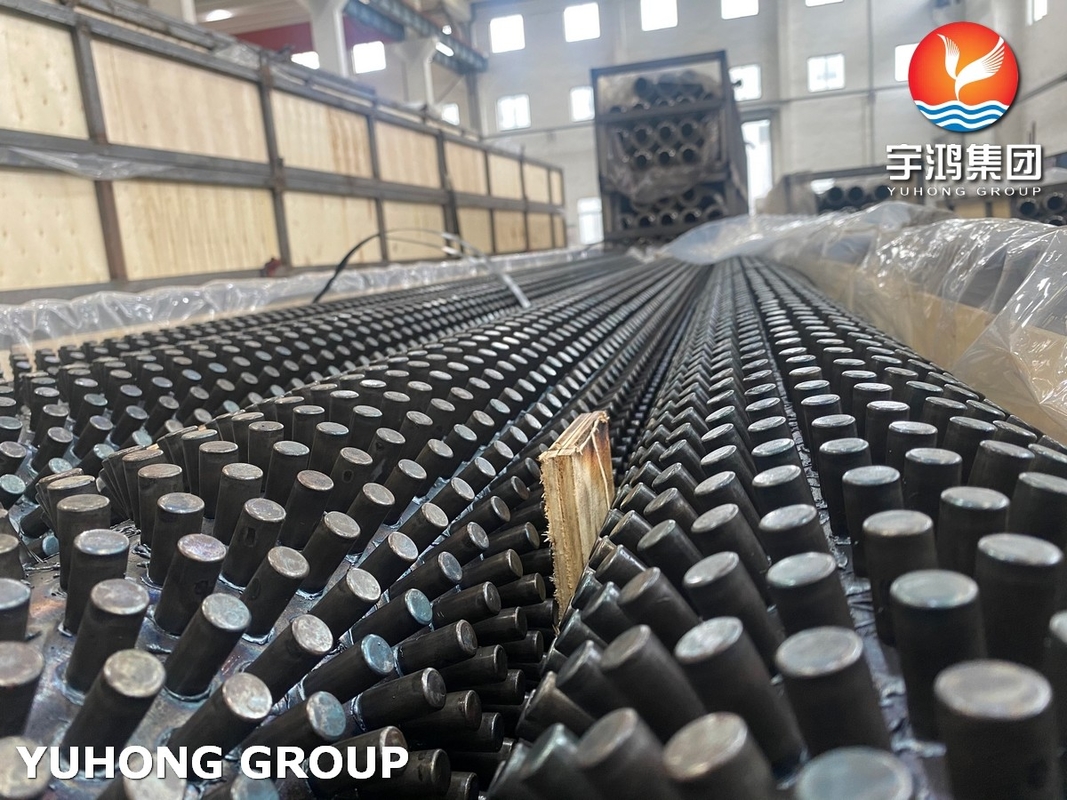

Delivery Conditions

Tube ends are square cut, free of burrs, internally dried and air blown clean, with external varnish coating at both ends.

Surface Protection

Oil dip, black coating or varnish options available.

Stud Types

Cylindrical or elliptical configurations available.

Material Specifications

Items	General Materials	Popular ASTM/ASME Materials
Core Tube Material	Carbon Steel, Alloy Steel, Heat Resistant Steel, Stainless Steel	1. Carbon Steel: A106 Gr.B 2. Stainless Steel: TP304/304L, TP316/TP316L, TP347, TP321, TP347 3. Alloy Steel: P5, T5, P9, T9, T11, T22
Studs Material	Carbon Steel, Stainless Steel	1. Carbon Steel 2. Stainless Steel: TP409/410, TP304/304L, TP316/TP316L, TP321/TP310S

Dimensions

Parameter	Specification
Tube OD (mm)	38mm~219mm
Tube Wall Thickness (mm)	4mm~15mm
Tube Length (mm)	16,000mm Max.
Studs OD (mm)	6mm~16mm
Studs Height (mm)	10mm~45mm
Studs Type	Circular, elliptical, waist drum type

Product Line

ASTM A335 P11 Studded Tube
ASTM A335 P22 Studded Tube
ASTM A335 P5 Studded Tube
ASTM A335 P9 Studded Tube
ASTM A335 P91 Studded Tube

Applications

Furnace and Fired Heaters
Chemical Industry
Petrochemical Industry
Power Stations

For more detailed specifications or custom requirements, please contact our sales team.
