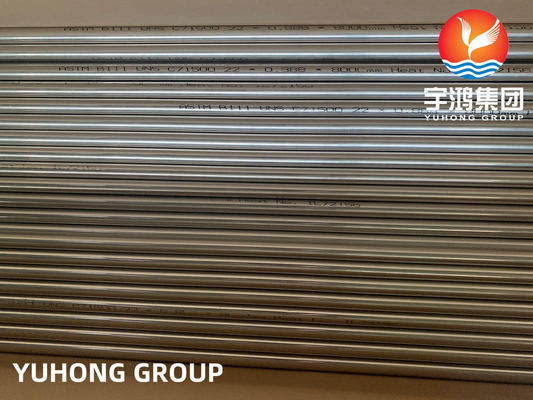

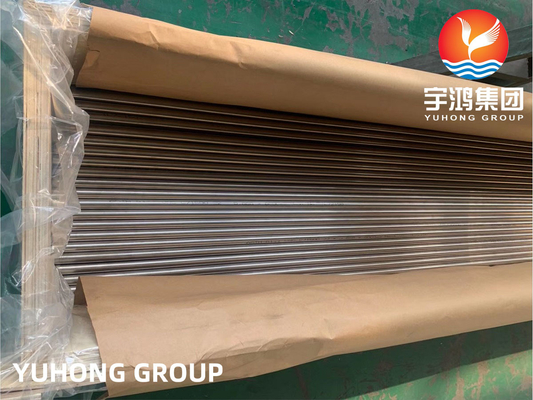

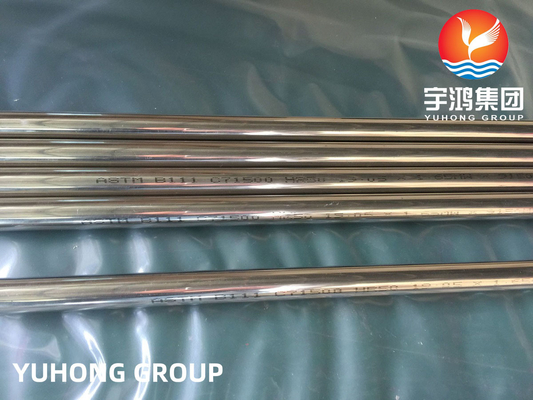

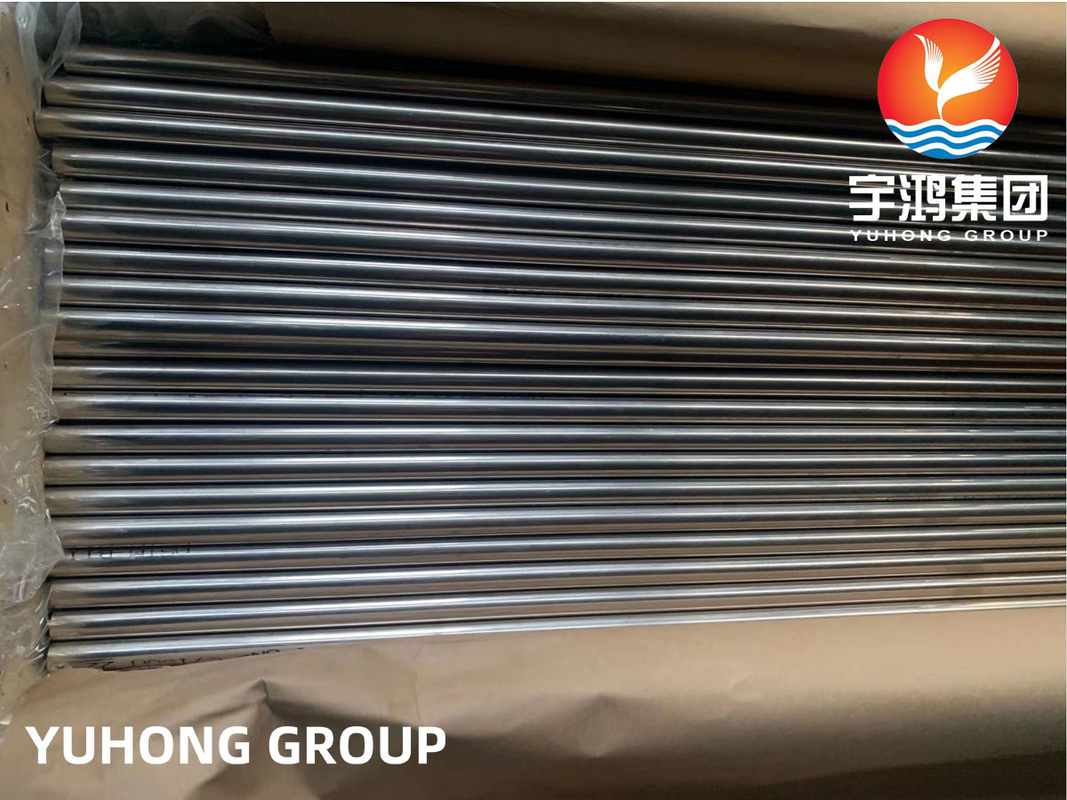

ASTM B111 C71500 Condenser Tube For Boiler Superheater OEM

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 60 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Material:

C71500

Standard:

ASTM B111 , ASME SB111

Ends:

PE , BE

Application:

Heat Exchangers, Condensers, Coolers, Etc.

Highlight:

C71500 condenser tube

OEM condenser tube

OEM boiler superheater tubes

ASTM B111 C71500 Condenser Tube For Boiler Superheater OEM

Product Specifications

Attribute	Value
Material	C71500
Standard	ASTM B111, ASME SB111
Ends	PE, BE
Application	Heat Exchangers, Condensers, Coolers, Etc.

Product Description

ASTM B111 C71500 Copper Alloy Steel Heat Exchanger Tube is designed for cooling systems. C71500 is the UNS designation for a copper-nickel alloy containing 70% copper (Cu) and 30% nickel (Ni), commonly known as 70/30 copper-nickel.

This alloy offers an optimal balance of strength, ductility, and fabrication ease, with excellent workability for bending, welding, and forming into complex shapes like tube arrays. The material provides superior resistance to seawater and harsh environments, making it ideal for marine applications.

Chemical Composition

Grade	Cu	Ni	Fe
ASTM B111 C71500	69-71%	29-33%	0.4-1.0%

Mechanical Properties

Grade	Yield Strength	Tensile Strength	Elongation
ASTM B111 C71500	Approximately 125 MPa (18 ksi)	Approximately 350 MPa (51 ksi)	≥ 30%

Applications

Seawater Cooling Systems
Desalination Plants
Cooling Systems for Marine Engines
Condensers and Heat Exchangers
Petrochemical Refining
Thermal Desalination Units
Reverse Osmosis Systems
