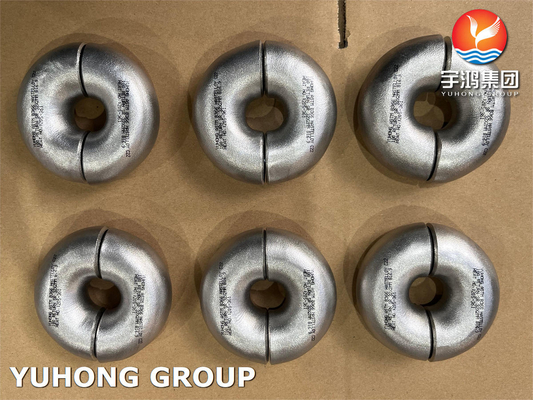

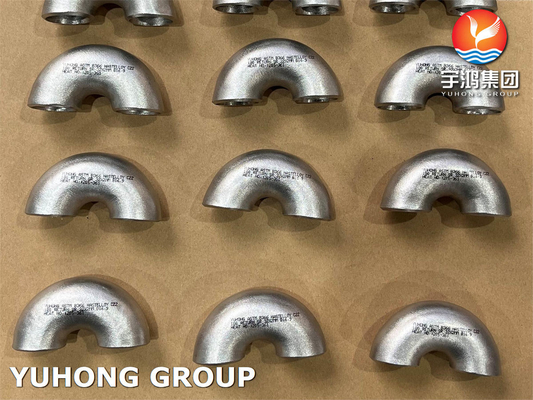

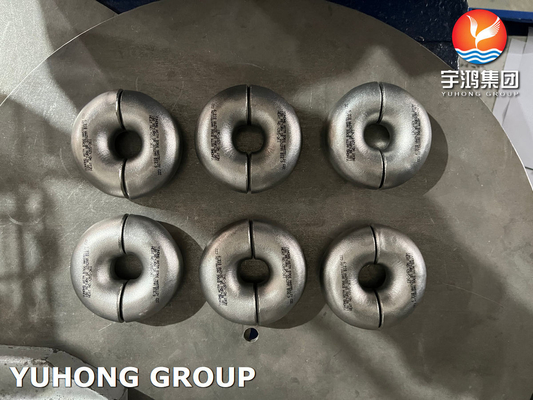

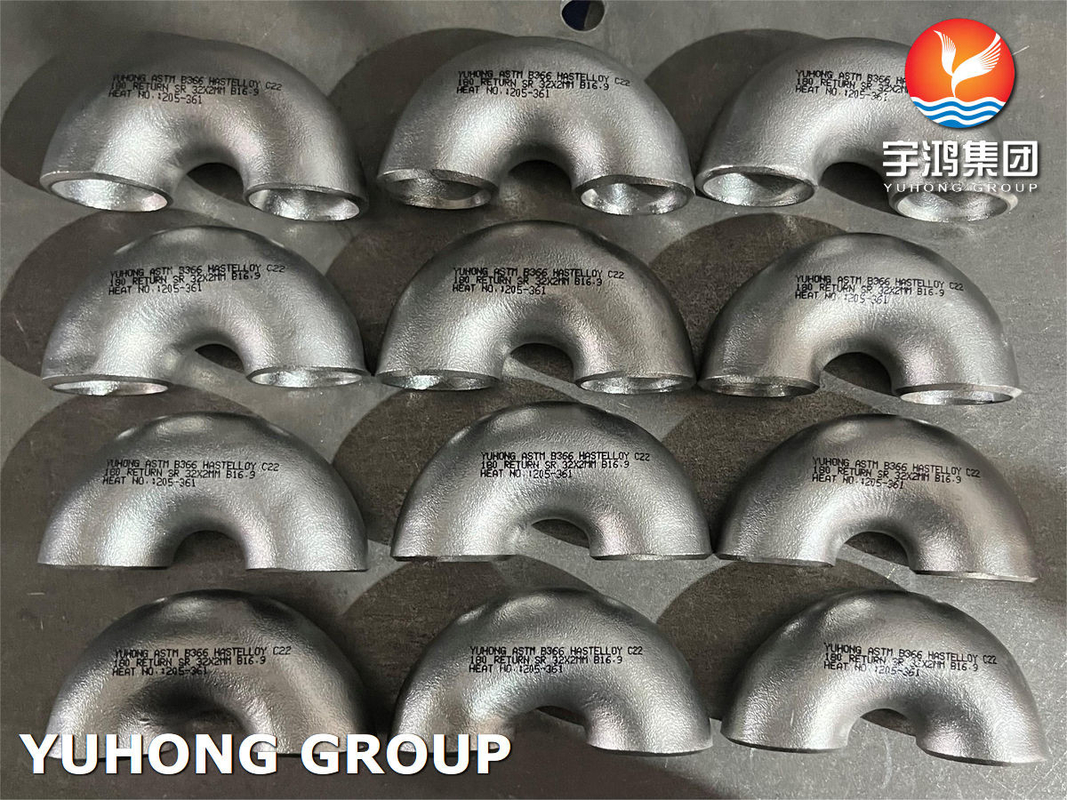

3/4" ASTM B366 C22 180° Return Bend Elbow SR NO6022 Hastelloy

3/4" ASTM B366 C22 180° Return Bend Elbow SR NO6022 Hastelloy

  • 3/4" ASTM B366 C22 180° Return Bend Elbow SR NO6022 Hastelloy
  • 3/4" ASTM B366 C22 180° Return Bend Elbow SR NO6022 Hastelloy
  • 3/4" ASTM B366 C22 180° Return Bend Elbow SR NO6022 Hastelloy
  • 3/4" ASTM B366 C22 180° Return Bend Elbow SR NO6022 Hastelloy
3/4" ASTM B366 C22 180° Return Bend Elbow SR NO6022 Hastelloy
Product Details:
Place of Origin: China , Korea
Brand Name: YUHONG
Certification: ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number: 180 DEG. ELBOW
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 1 - 10000 USD
Packaging Details: Ply-Wooden Case
Delivery Time: 5 - 90 Days
Payment Terms: L/C, T/T
Supply Ability: 10000 Tons/Month
Contact Now Chat Now
Detailed Product Description
Material: Hastelloy C22 , NO6022 Standard: ASTM B366
Radius: LR ( Long Radius ) , SR ( Short Radius ) Testing: UT , PT , PMI
Size: 1/2 Inch - 98 Inch Application: Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section
Highlight:

3/4" 180 return bend

,

Hastelloy 180 return bend

,

Hastelloy 3 4 return bend

3/4" ASTM B366 C22 180° Return Bend Elbow SR NO6022 Hastelloy
Key Specifications
Material Hastelloy C22, NO6022
Standard ASTM B366
Radius LR (Long Radius), SR (Short Radius)
Testing UT, PT, PMI
Size Range 1/2 inch - 98 inch
Applications Heat Exchanger, Boiler, Furnace, Fired Heater, Convection Section
Product Overview

Alloy C22 is a nickel-chromium-molybdenum solid solution reinforced superalloy with a nominal chemical composition of 56% nickel, 22% chromium, and 13% molybdenum with additions of iron, tungsten, and cobalt. Commonly known as Hastelloy C22 (UNS NO6022), this material offers exceptional performance in demanding industrial applications.

Hastelloy C22 demonstrates superior resistance to pitting, crevice corrosion, and stress corrosion cracking. The high chromium content provides excellent oxidation resistance to oxidizing media, while the molybdenum and tungsten content ensures outstanding performance in reducing environments.

Chemical Composition
Grade C Mn Si Cu S Fe Ni Cr P Mo
Hastelloy C22 0.010 max 0.50 max 0.08 max 0.50 max 0.02 2.00 - 6.00 50.015 min 20.00 - 22.50 0.02 max 12.50 - 14.50
Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS GOST EN
Hastelloy C22 2.4602 N06022 NW 6022 - NiCr21Mo14W
Mechanical & Physical Properties
Density 8.69 g/cm³
Melting Point 1399 °C (2550 °F)
Tensile Strength Psi - 1,00,000, MPa - 690
Yield Strength (0.2%Offset) Psi - 45000, MPa - 310
Elongation 45 %
Industrial Applications
Chemical processing equipment Pharmaceutical industry components Petrochemical processing systems Waste treatment facilities Power generation equipment Pulp and paper industry machinery Food processing systems
