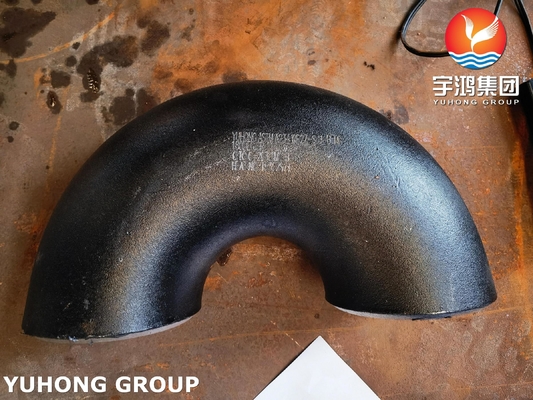

NDE Test Return Elbow U Bend Piping Systems 180 Degree 3/4

NDE Test Return Elbow U Bend Piping Systems 180 Degree 3/4" Customized

Brand Name: YuHong
Model Number: ASTM A234 WP22-S
MOQ: 1 PC
Price: Negotiable
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: According to Clients' requirements
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO,PED, TUV, ABS, DNV, GL , LR , KR, BV, CCS, COST
Product Name:
180 Degree Elbow SR/180 Degree Return Bend
Specification:
ASTM A234
Material:
WPB-S
Radius:
LR Or SR (Depend On Customer's Requirements)
Surface:
Black Painted Or Oiled
Test:
Size Inspection, NDE Test...
Size Standard:
ASME B16.9
Application:
Heat Exchangers, Piping Systems, Oil And Gas Industry, Water Tretment
Packaging Details:
Ply-wooden Cases/Pallets
Supply Ability:
According to Clients' requirements
Highlight:

NDE Test return elbow

,

Piping return elbow

,

NDE Test 3 4 return bend

Product Description
NDE Test Return Elbow U Bend Piping Systems 180 Degree 3/4" Customized
Product Specifications
Attribute Value
Product Name 180 Degree Elbow SR/180 Degree Return Bend
Specification ASTM A234
Material WPB-S
Radius LR or SR (Depend on Customer's Requirements)
Surface Black Painted or Oiled

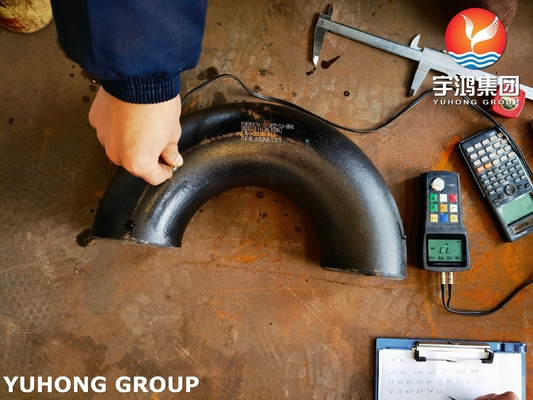

Test Size Inspection, NDE Test
Size Standard ASME B16.9
Application Heat Exchangers, Piping Systems, Oil and Gas Industry, Water Treatment
Product Overview

ASTM A234 WP22-S 180 Degree U Bend fittings are alloy steel components designed for high-temperature services in oil and gas applications. These U-shaped fittings change piping direction by 180 degrees while maintaining system integrity under extreme conditions.

Key Features and Benefits
  • Durability: Constructed from high-strength alloy steel for demanding environments
  • Corrosion Resistance: WP22-S grade provides excellent protection against rust and deterioration
  • Temperature Performance: Designed to withstand elevated operating temperatures
  • Pressure Capacity: Engineered to maintain system integrity under high pressures
  • Longevity: Extended service life reduces maintenance and replacement costs
  • Versatility: Suitable for diverse industrial applications including power generation and chemical processing
Material Specifications
Chemical Composition:
  • Carbon (C): 0.05 - 0.15%
  • Manganese (Mn): 0.30 - 0.60%
  • Phosphorus (P): ≤ 0.025%
  • Sulfur (S): ≤ 0.025%
  • Silicon (Si): 0.50 - 1.00%
  • Chromium (Cr): 2.00 - 2.50%
  • Molybdenum (Mo): 0.87 - 1.13%
Mechanical Properties:
  • Tensile strength: ≥ 415 MPa
  • Yield strength: ≥ 205 MPa
  • Elongation: ≥ 30%
Industrial Applications

These high-performance fittings are essential components in:

  • Power plant steam systems and turbine piping
  • Petrochemical refineries and processing facilities
  • Oil and gas pipelines and processing equipment
  • Chemical processing plants handling corrosive materials
  • Pharmaceutical manufacturing processes
  • Food processing systems requiring corrosion-resistant materials
NDE Test Return Elbow U Bend Piping Systems 180 Degree 3/4" Customized 0
