A213 T5 G Type Finned Tube Aluminum 1100 Embedded For Air Cooler

Product Details:

Place of Origin:	China
Brand Name:	YuHong
Certification:	ABS, BV, ISO, ASTM, SGS
Model Number:	ASTM A213 T5

Payment & Shipping Terms:

Minimum Order Quantity:	200~500 KGS
Price:	Negotiable

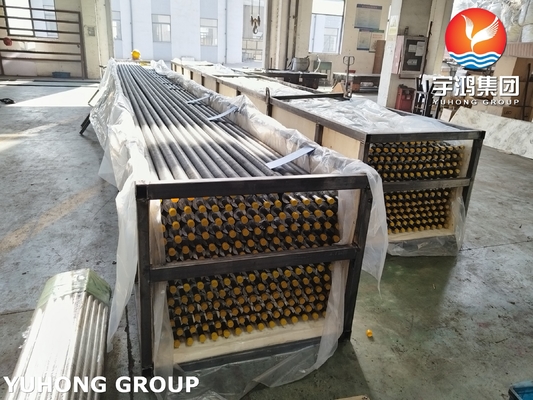

Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Delivery Time:	35-60 Days (Depend on Customer's Requirements)
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	According to Clients' requirements

Contact Now Chat Now

Detailed Product Description

Product Name:	Embedded/G Type Finned Tube	Base Tube Specification&Material:	ASTM A213 T5

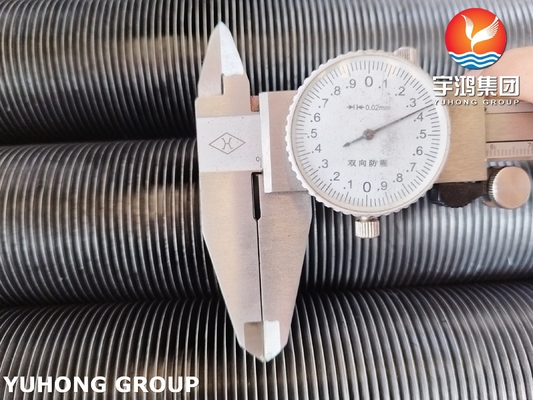

Fin Material:	ASTM B209 AL-1100	Fin Height:	＜17mm

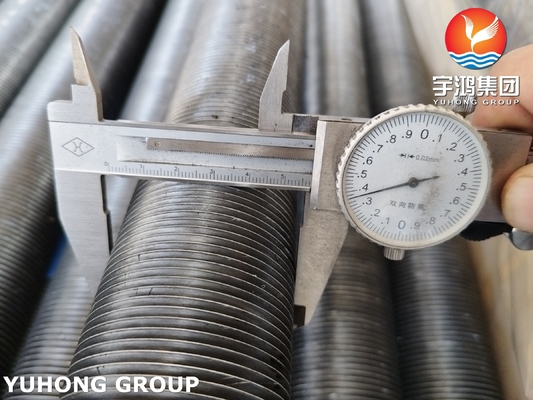

Fin Thickness:	~0.4mm	Base Tube OD:	16~63mm
Fin Pitch:	2.1~5mm	Application:	Boiler/Air-cooled Condenser/Heat Exchanger
Highlight:	Embedded micro fin tube , Aluminum 1100 micro fin tube , A213 T5 spiral fin tube

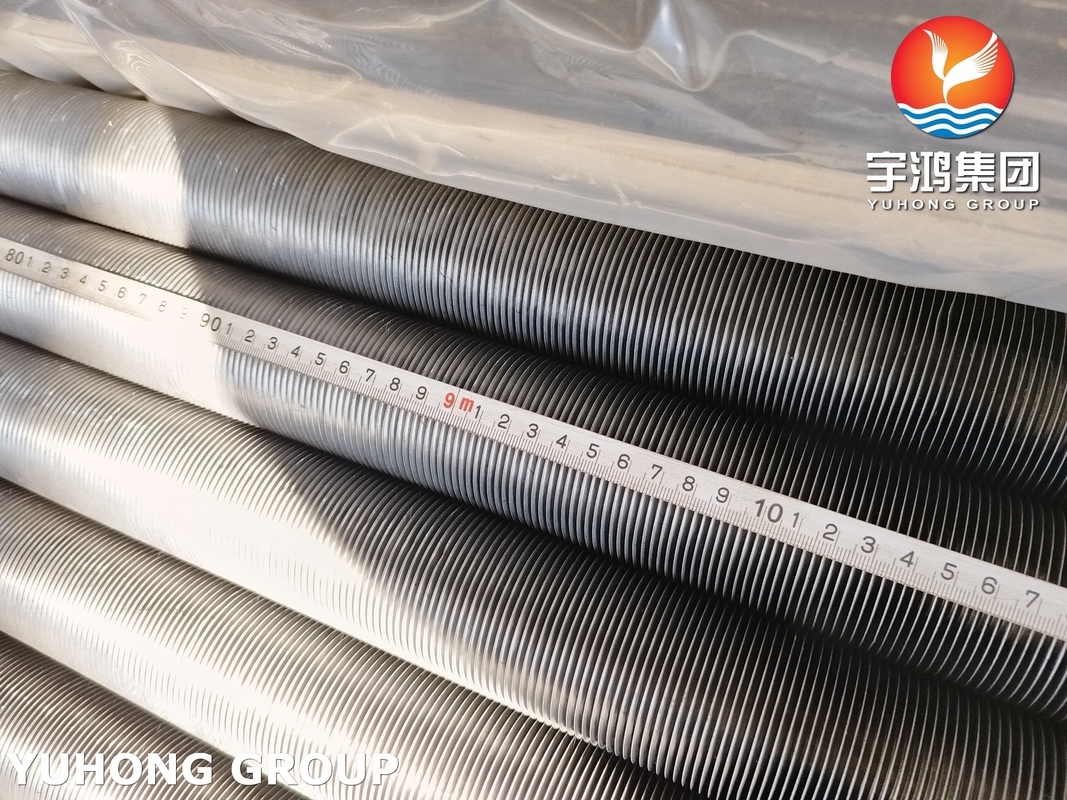

A213 T5 G Type Finned Tube Aluminum 1100 Embedded For Air Cooler

Product Overview

ASTM A213 T5 Embedded Finned Tube with Aluminum 1100 fins is a high-performance heat exchanger component designed for oil refineries and other demanding industrial applications. These tubes feature fins embedded into the tube wall to significantly increase heat transfer surface area while maintaining mechanical stability.

Key Features and Benefits

Enhanced Heat Transfer: Embedded fins increase surface area for faster, more efficient thermal exchange
Mechanical Stability: Corrugated pattern resists damage during installation and operation
Compact Design: Ideal for space-constrained applications
Customizable Configuration: Fin shape, size, and material can be tailored to specific requirements
Corrosion Resistance: ASTM A213 T5 alloy steel provides excellent durability in harsh environments
Long Service Life: High-quality materials and manufacturing ensure extended operational lifespan

Technical Specifications

Chemical Composition: Carbon (C): 0.15% max, Manganese (Mn): 0.30-0.60%, Phosphorus (P): 0.025% max, Sulfur (S): 0.025% max, Silicon (Si): 0.50-1.00%, Chromium (Cr): 4.00-6.00%, Molybdenum (Mo): 0.45-0.65%

Mechanical Properties: Tensile Strength: 415MPa min, Yield Strength: 205MPa min, Elongation: 30% min, Hardness (HRB): 85 max

Industrial Applications

Power generation plants for efficient heat transfer in boilers
Petrochemical processing and refining equipment
Chemical and pharmaceutical manufacturing systems
HVAC/R systems for enhanced thermal performance
Food processing for pasteurization and sterilization
