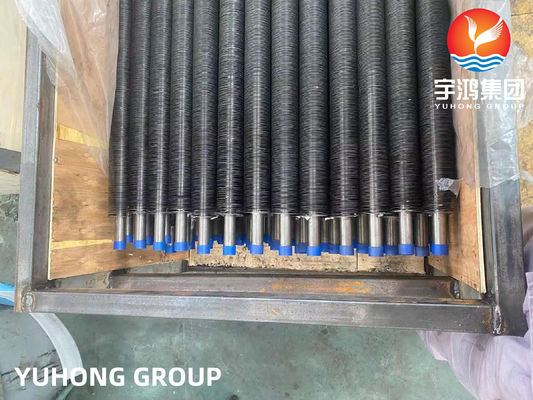

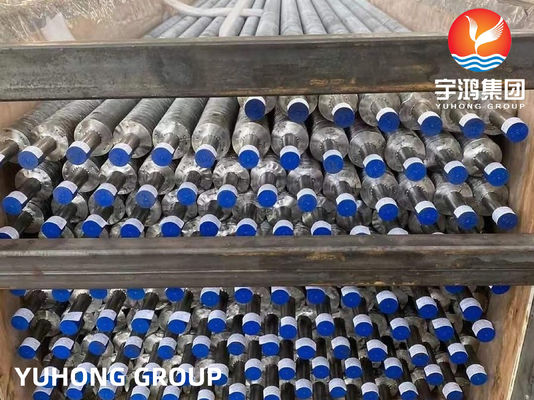

ASTM B163 Monel 400 G Type Finned Tube For Heat Exchanger

Product Details:

Place of Origin:	China,Korea
Brand Name:	YUHONG
Certification:	ASME ,PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	Monel 400 Fin tube , Copper Nickel Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1--10000 USD
Packaging Details:	Ply wooden case
Delivery Time:	5---75 days
Payment Terms:	L/C,T/T
Supply Ability:	10000 tons/month

Contact Now Chat Now

Detailed Product Description

Base Tube Standard:	ASTM B163, ASME SB163 , ASTM B165, ASME SB165	Base Tube Grade:	Monel 400, Alloy 400, UNS NO4400, 2.4360
Fin Material:	ASME SB208 GR. 1060 , GR.1100	Fin Type:	Embedded G Type Fin Tube
Testing Of Fin Tube:	Pressure Testing , Firmness Testing , Pulling Testing	Application:	Air Cooler, Cooling Tower , Oil Refininging
Highlight:	ASTM B163 sterling fin tube , Monel 400 sterling fin tube , Copper Nickel welded fin tubes

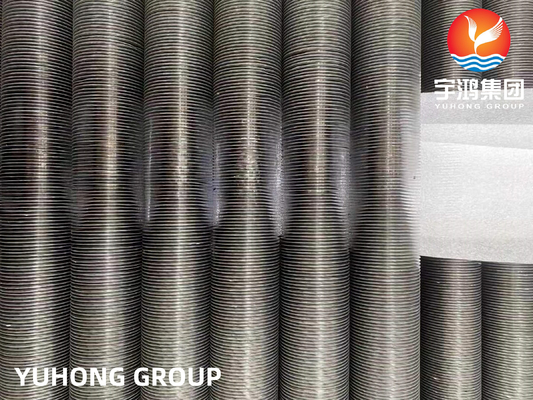

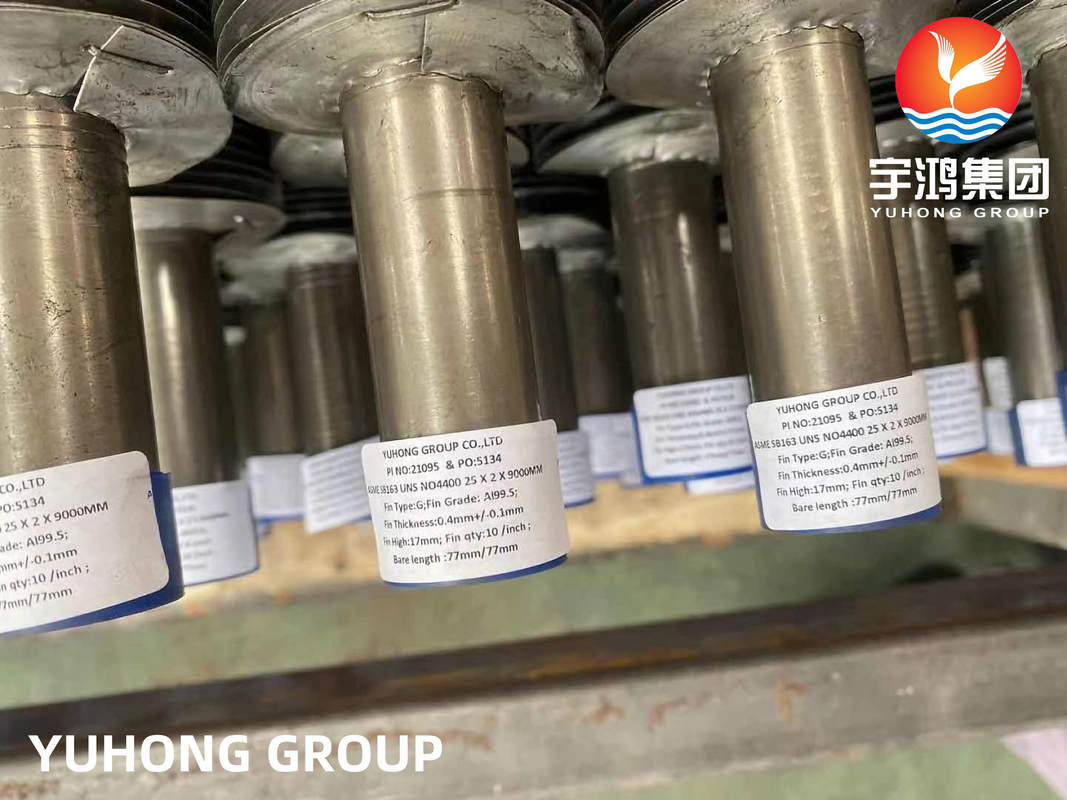

ASTM B163 Monel 400 G Type Finned Tube For Heat Exchanger

Product Description

Yuhong produces ASME SB163/ASTM UNS N04400 Monel 400 G Type Finned Tubes. Monel 400 is a nickel-copper alloy renowned for its excellent corrosion resistance, particularly in marine and chemical environments. These tubes are widely used in various industrial applications due to their unique properties.

ASME SB163 UNS N04400 Monel 400 tube is a Nickel Base Alloy Seamless Tube designed for heating applications. The alloy maintains excellent mechanical properties at both high temperatures (up to 1000°F) and subzero temperatures.

Monel 400 is hardened by cold working only and offers exceptional resistance to stress corrosion cracking in most freshwaters. Its corrosion-resistant properties make it ideal for marine applications and flowing seawater environments.

Chemical Composition (ALLOY 400/UNS N04400)

C	MN	P	S	Si	Cr	Ni	Cu	Al	Fe
.25max	1.5 max	-	.01 max	.5 max	-	63.0 min	27-33	2.30-3.15	2.5 max

Product Specifications

Product Form	Specification
Monel 400 Sheet/Plate	QQ N 286
Monel 400 Round Bar	ASME SB-865 AMS 4676 QQ N 286
Monel 400 Pipe	B165
Monel 400 Tube	B163, B165
Monel 400 Fittings	B366
Monel 400 Forgings	QQ N 286 AMS 4676

Fin Tube Specifications

Type	Description	Base Tube O.D. (mm)	Fin Pitch (mm)	Fin Height (mm)	Fin Thickness (mm)
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6-10	<17	0.2-0.4
Low fin tube	T-type fin tube	10-38	0.6-2	<1.6	~0.3

Production Capacity: More than 5000 meters per day

Available Lengths: Up to 25 meters

Tube Material Options: All types of material with minimum thickness of 1.00mm
