Place of Origin: | China , Korea |
Brand Name: | YUHONG |
Certification: | ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001 |
Model Number: | Seamless Tube |
Minimum Order Quantity: | 1PC |
---|---|
Price: | 1 - 10000 USD |
Packaging Details: | Ply-Wooden Case & Woven Bag |
Delivery Time: | 5 - 60 Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000 Tons/Month |
Material: | TP904L | Standard: | ASTM B677 , ASME SB677 |
---|---|---|---|
Ends: | PE , BE | Testing: | UT, ET, HT, PMI |
Size: | OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc | Application: | Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle |
Highlight: | Nickel Alloy Heat Exchanger Tube,Marine Heat Exchanger Tube,sa179 carbon steel Tube |
Attribute | Value |
---|---|
Material | TP904L |
Standard | ASTM B677, ASME SB677 |
Ends | PE, BE |
Testing | UT, ET, HT, PMI |
Size | OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc |
Application | Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle |

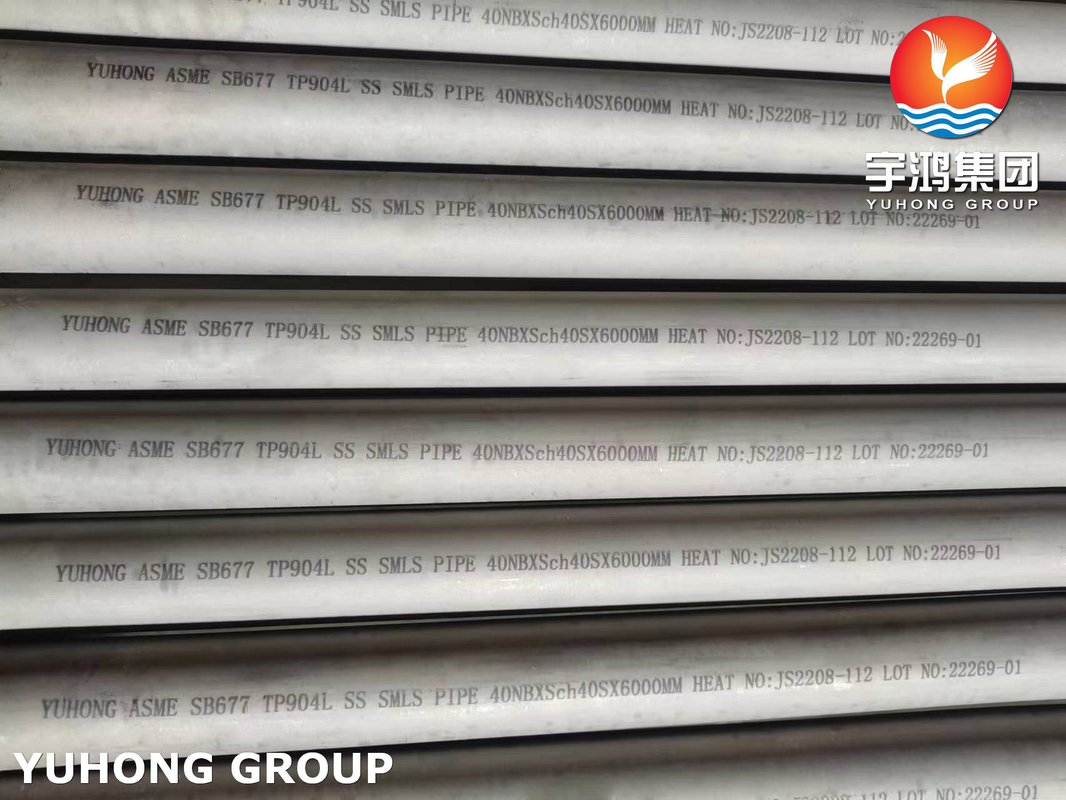

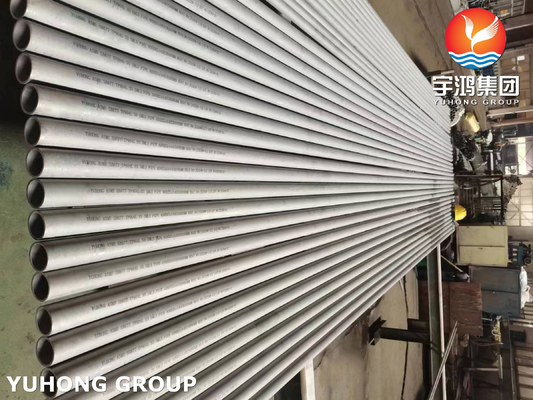

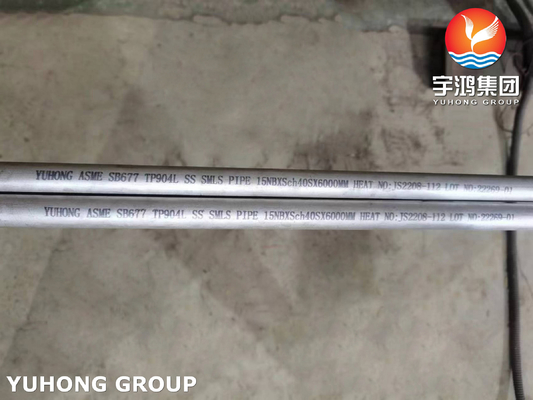

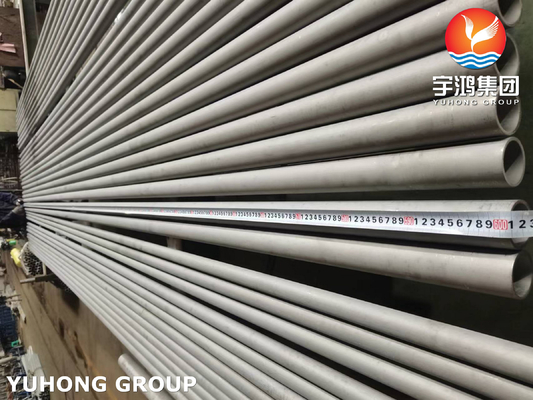

The Nickel Alloy Steel Heat Exchanger Tube ASME SB677 TP904L is a high-performance solution designed for extreme corrosion resistance in harsh industrial environments. Manufactured from TP904L stainless steel, this super austenitic alloy features elevated levels of chromium, nickel, and molybdenum for superior durability.
TP904L Stainless Steel offers enhanced corrosion resistance with its low carbon content and high alloy composition. The tubes comply with ASME SB677 specifications, ensuring adherence to rigorous industry standards for quality and performance in demanding applications.
Grade | Cr | Ni | Mo | Cu | C |
---|---|---|---|---|---|
TP904L | 19.0-23.0% | 23.0-28.0% | 4.0-5.0% | 1.0-2.0% | 0.02% max |
Grade | Tensile Strength | Yield Strength | Elongation | Hardness |
---|---|---|---|---|
TP904L | ≥ 220 MPa (32 ksi) | ≥ 490 MPa (71 ksi) | ≥ 35% in 50 mm | Typically ≤ 90 HRB |
