EN10216-5 D2T1 1.4404316L Tubes Anti Corrosion OEM

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Delivery Time:	5 - 60 Days
Payment Terms:	L/C,T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Material:	1.4404	Standard:	EN10216-5
Ends:	PE , BE	Testing:	UT, ET, HT, PMI
Size:	OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc	Application:	Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle
Highlight:	SA179 carbon steel heat exchanger tubes , OEM carbon steel heat exchanger tubes , Heat Exchanger sa 179 tube

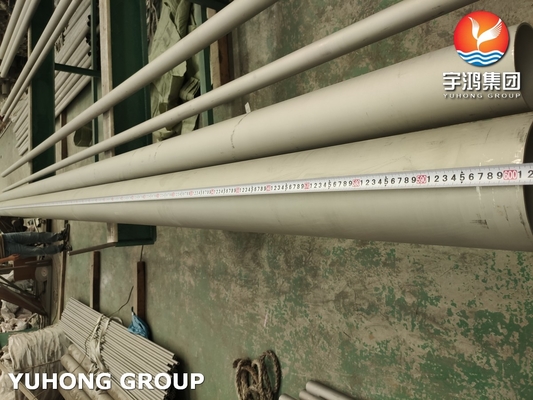

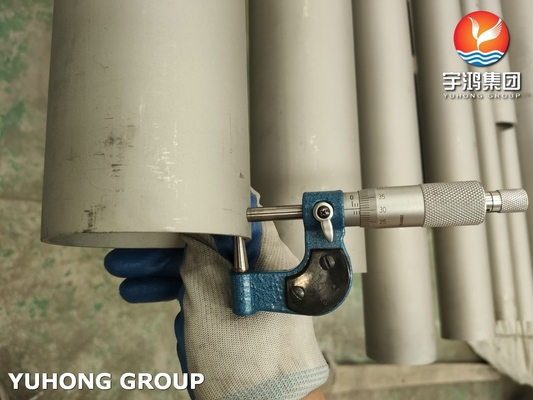

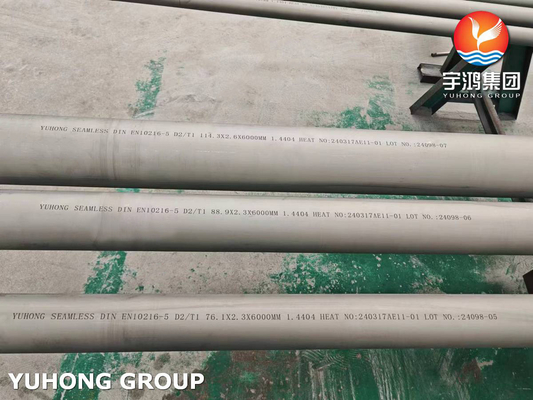

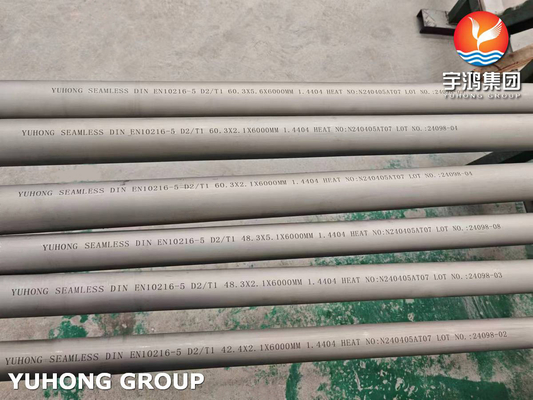

EN10216-5 D2T1 1.4404316L Tubes Anti Corrosion OEM

Product Description

The EN10216-5 1.4404 316L Stainless Steel Heat Exchanger Tube offers exceptional corrosion resistance and high performance in demanding environments. Manufactured from 316L stainless steel with low carbon content, it provides enhanced weldability and reduced risk of carbide precipitation.

EN 10216-5 is the European standard specifying technical delivery conditions for seamless and welded steel tubes for pressure applications. The 316L composition makes it ideal for applications requiring welded joints.

Chemical Composition

Grade	Cr	Ni	Mo	C
1.4404/316L	16.5-18.5%	10.0-13.0%	2.0-2.5%	≤ 0.03%

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
1.4404/316L	≥ 200 MPa (29 ksi)	≥ 500 MPa (72 ksi)	≥ 40% in 50 mm	Typically ≤ 95 HRB

Applications

Chemical Processing
Food and Beverage Industry
Pharmaceutical Industry
Marine Applications
Water Treatment
