Seamless Superheater Boiler Tube Bundle ASTM A213 TP316H Stainless Steel

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Delivery Time:	5 - 45 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Material:

TP316H

Standard:

ASTM A213, ASME SA213

ENDS:

PE, BE

ET, HT, UT, PMI

Highlight:

Seamless boiler tube bundle

ASTM A213 boiler tube bundle

Seamless boiler superheater tubes

Seamless Superheater Boiler Tube Bundle ASTM A213 TP316H Stainless Steel

Key Specifications

Material	TP316H
Standard	ASTM A213, ASME SA213
ENDS	PE, BE
NDT	ET, HT, UT, PMI

Product Overview

ASTM A213 TP316H stainless steel seamless tubes are specifically designed for heat exchangers and superheater applications. TP316H is a high-temperature grade with enhanced carbon content for superior strength in elevated temperature environments, making it ideal for applications where standard TP316 or TP316L may not suffice.

Chemical Composition

Chromium (Cr): 16 - 18%
Nickel (Ni): 10 - 14%
Molybdenum (Mo): 2 - 3%
Carbon (C): 0.04 - 0.10%
Manganese (Mn): 2% max
Silicon (Si): 1% max
Phosphorus (P): 0.045% max
Sulfur (S): 0.03% max
Iron (Fe): Balance

Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness Rockwell B (HR B) max	Brinell (HB) max
316H	515	205	40	95	217

Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)	Thermal Conductivity (W/m.K)	Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)
316H	8000	193	15.9	16.3	500	740

Key Applications

High-temperature and high-pressure environments including boilers and superheater tubes
Petrochemical and chemical processing equipment
Nuclear power plant components
Oil and gas industry equipment
Heat exchangers handling corrosive fluids
Furnace parts and incinerator components

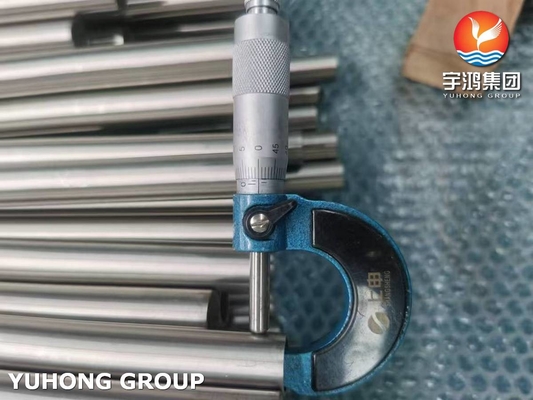

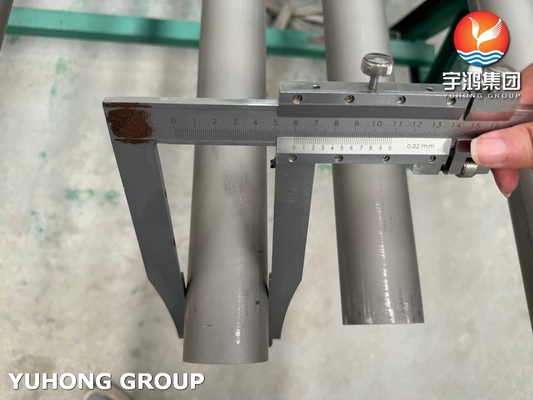

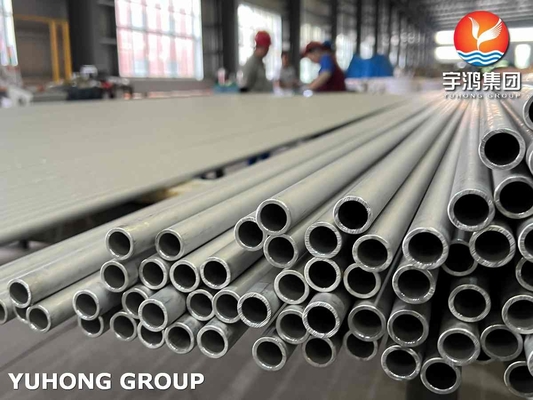

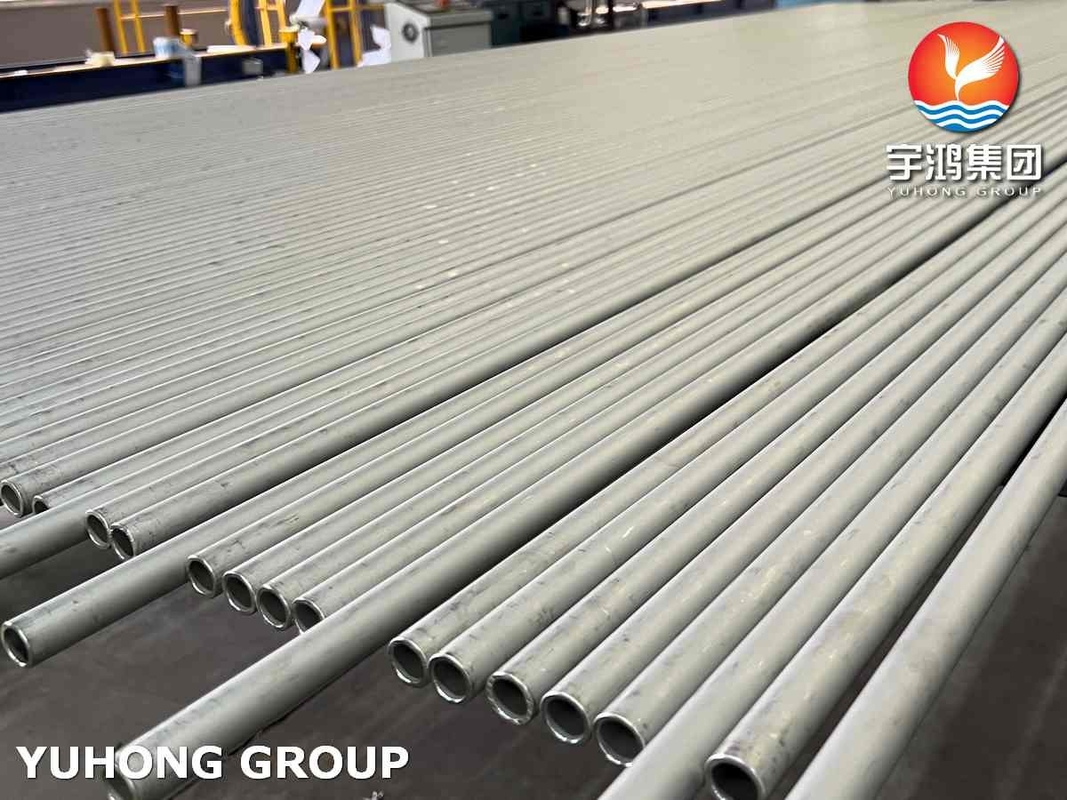

Product Sample
