Wound Copper Aluminum Fintube Cooling Systems ASTM A179 Customized

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	‘L’Type Fin Tube , ‘LL’Type Fin Tube , ‘KLM’Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Delivery Time:	5 - 30 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material:	Aluminum	Base Tube Standard:	ASTM A179 , ASME SA179
Type:	Wound, L Type, LL Type, KL Type	Application:	Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type:	‘L’Type Fin Tube , ‘LL’Type Fin Tube , ‘KLM’Fin Tube	Fin Material:	Aluminum , Copper , Stainless Steel , Carbon Steel
Highlight:	Aluminum fintube cooling systems , A179 fintube cooling systems , customized finned copper tube

Wound Copper Aluminum Fintube Cooling Systems ASTM A179 Customized

Product Overview

ASTM A179 L Type Fin Tubes are precision-engineered heat transfer components made from carbon steel, offering exceptional thermal conductivity and corrosion resistance. These fin tubes are manufactured using a seamless process to ensure uniform quality and structural integrity.

Key Specifications

Attribute	Value
Base Tube Material	Aluminum
Base Tube Standard	ASTM A179, ASME SA179
Type	Wound, L type, LL Type, KL Type
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	'L' Type Fin Tube, 'LL' Type Fin Tube, 'KLM' Fin Tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Technical Details

Type	Description	Base tube	Fin specification (mm)
Wound	L / KL / LL Type Fin Tube	16-63	O.D.: 2.1-5 Fin pitch: <17 Fin height: ~0.4

Chemical Composition

C	0.06-0.18
Si	≤ 0.25
Mn	0.27-0.63
P	≤0.035
S	≤0.035

Mechanical Properties

Tensile Strength	≥325 MPa
Yield Strength	≥180 MPa
Elongation	≥35 %
Hardness	≤72 HRB

Design Features

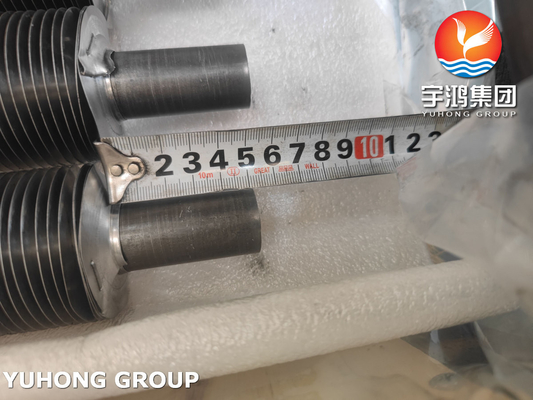

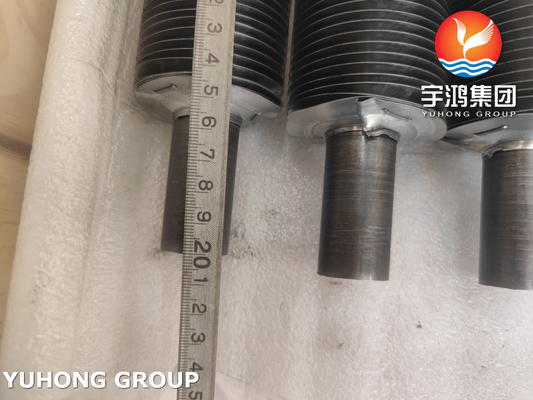

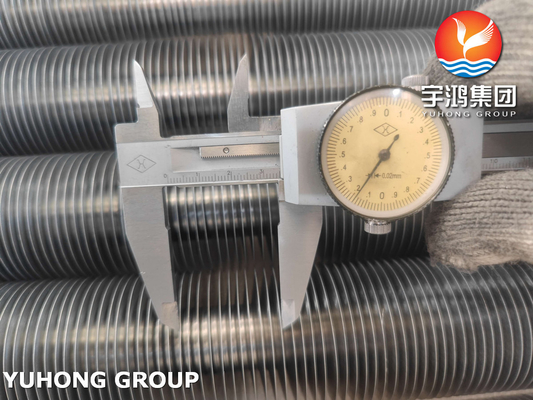

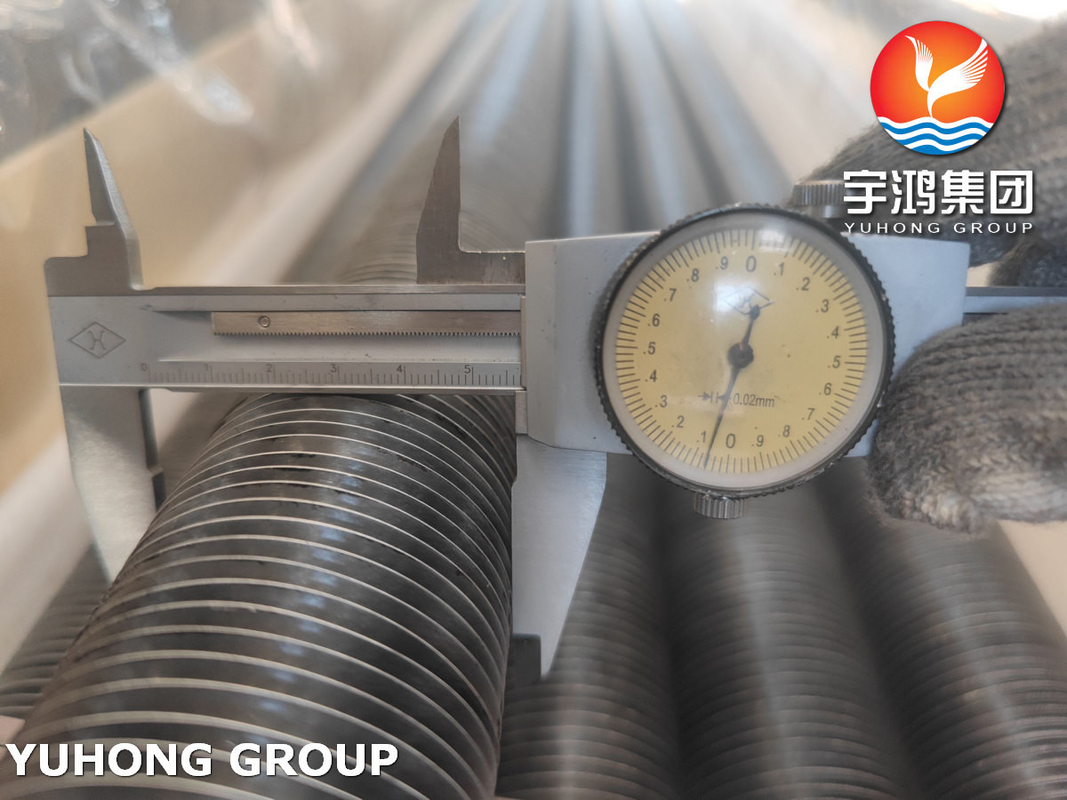

L type fin tubes feature thin aluminum fin strips tightly wound helically around the base tube
Precision wound construction ensures maximum contact surface for optimal heat transfer
Foot bearing design provides secure attachment to the tube outer surface
Significantly increases surface area for efficient heat exchange between fluids

Industrial Applications

Pharmaceutical Equipment • Chemical Equipment • Sea Water Systems • Heat Exchangers • Condensers • Pulp and Paper Industry • Power Generation • Gas Processing Plants • Petroleum Industry
