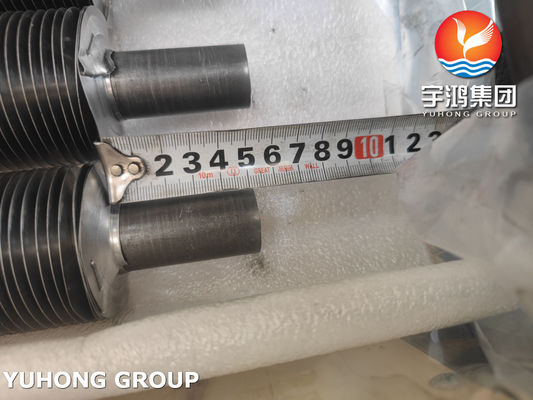

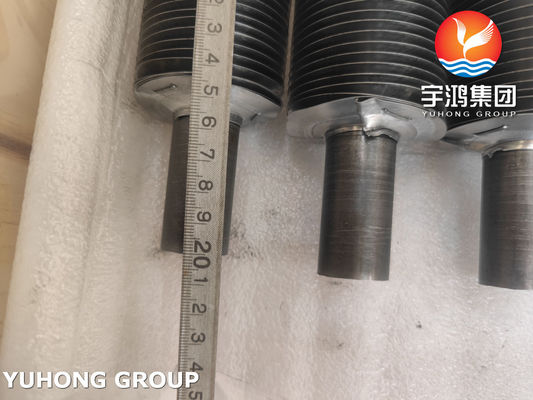

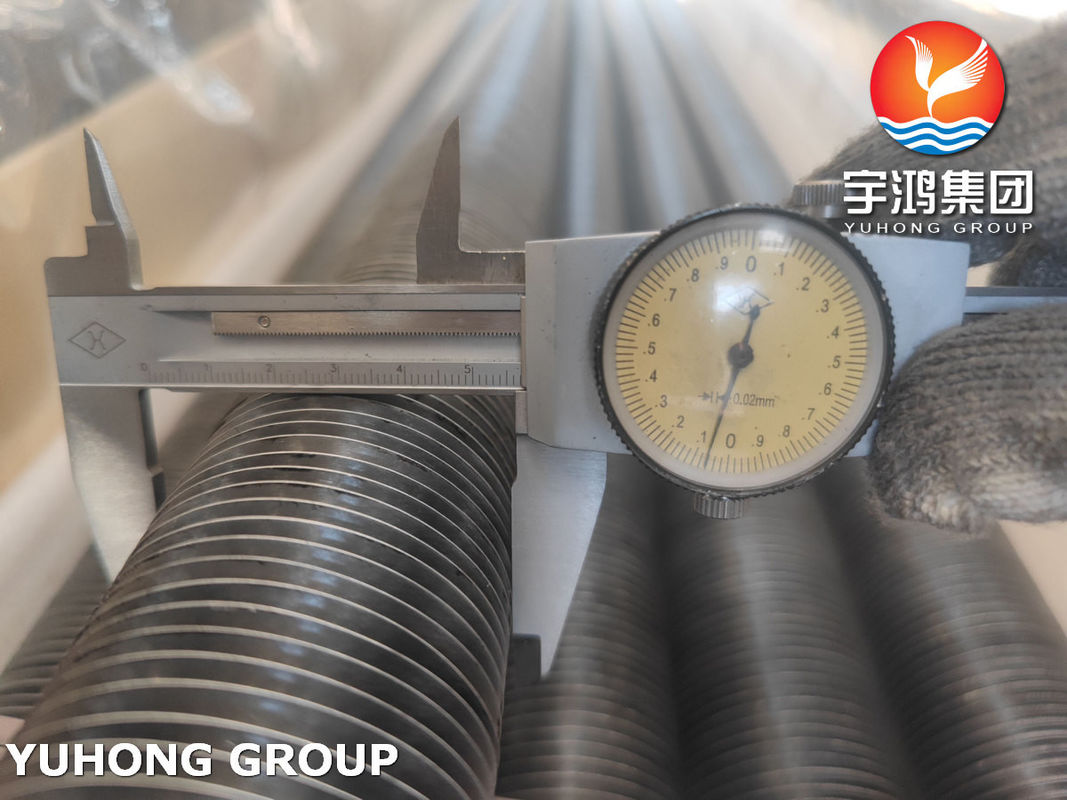

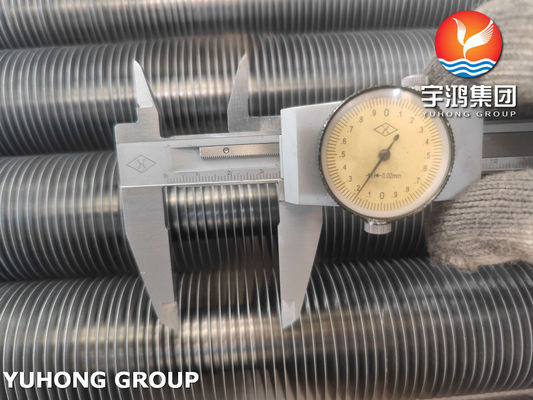

ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems

ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems

  • ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems
  • ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems
  • ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems
  • ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems
ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems
Product Details:
Place of Origin: China , Korea
Brand Name: YUHONG
Certification: ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number: ‘L’Type Fin Tube , ‘LL’Type Fin Tube , ‘KLM’Fin Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 1 - 10000 USD
Packaging Details: Ply-Wooden Case
Delivery Time: 5 - 30 Days
Payment Terms: L/C,T/T
Supply Ability: 10000 Tons/Month
Contact Now Chat Now
Detailed Product Description
Base Tube Material: Aluminum Base Tube Standard: ASTM A179 , ASME SA179
Type: Wound, L Type, LL Type, KL Type Application: Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type: ‘L’Type Fin Tube , ‘LL’Type Fin Tube , ‘KLM’Fin Tube Fin Material: Aluminum , Copper , Stainless Steel , Carbon Steel
Highlight:

Aluminum fintube cooling systems

,

A179 fintube cooling systems

,

customized finned copper tube

ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems
Product Overview

ASTM A179 L Type Fin Tubes are precision-engineered heat transfer components made from carbon steel, offering exceptional thermal conductivity and corrosion resistance. These fin tubes are manufactured using a seamless process to ensure uniform quality and structural integrity.

Technical Details
Type Description Base tube Fin specification (mm)
Wound L / KL / LL Type Fin Tube 16-63 O.D.: 2.1-5
Fin pitch: <17
Fin height: ~0.4
Chemical Composition
C 0.06-0.18
Si ≤ 0.25
Mn 0.27-0.63
P ≤0.035
S ≤0.035
Mechanical Properties
Tensile Strength ≥325 MPa
Yield Strength ≥180 MPa
Elongation ≥35 %
Hardness ≤72 HRB
Design Features
  • L type fin tubes feature thin aluminum fin strips tightly wound helically around the base tube
  • Precision wound construction ensures maximum contact surface for optimal heat transfer
  • Foot bearing design provides secure attachment to the tube outer surface
  • Significantly increases surface area for efficient heat exchange between fluids
Industrial Applications
Pharmaceutical Equipment • Chemical Equipment • Sea Water Systems • Heat Exchangers • Condensers • Pulp and Paper Industry • Power Generation • Gas Processing Plants • Petroleum Industry
ASTM A179 Low-Carbon Steel L Type Fin Tubes In Cooling Systems 0

Tag:

finned copper tube,

copper fin tube,

fintube cooling systems
