Helical Solid Fin Tube Fins ASTM A335 P22 11-13Cr For Air Preheaters Boiler

Product Details:

Place of Origin:	China
Brand Name:	YuHong
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A335 P22

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	Negotiable

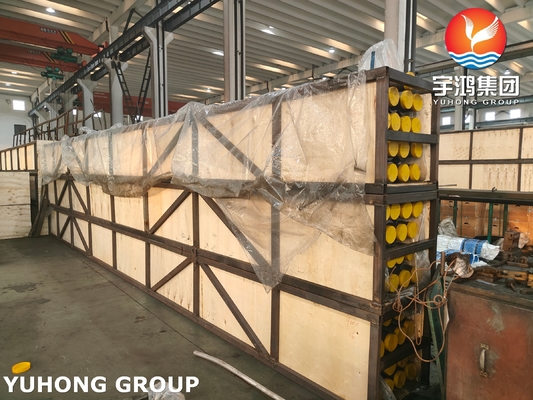

Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Delivery Time:	45-75 Days (Depend on Customer's Requirements)
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	According to Clients' requirements

Contact Now Chat Now

Detailed Product Description

Base Pipe Specification&Material:	ASTM A335 P22	Fin Material:	11-13 Cr
Fin Type:	Helical Solid Finned Tubes/Spiral High Frequency Welding Finned Tube	Base Tube/Pipe OD:	15.88-230mm
Fin Pitch:	4mm-30mm	Fin Height:	8-30mm
Fin Thickness:	0.8-3mm	Pipe Length:	Customized
Application:	Air Preheaters, Boiler, Heat Exchangers...
Highlight:	13Cr tube fins , Preheaters tube fins , Helical fin tube pipe

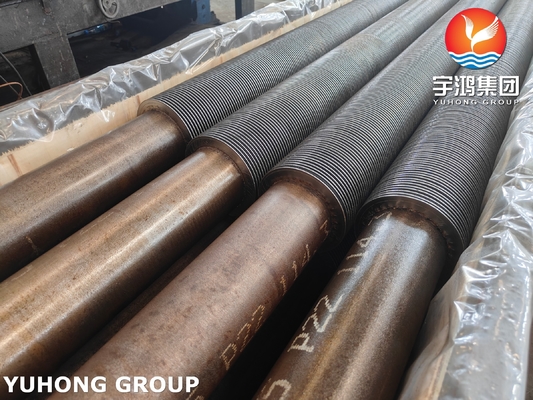

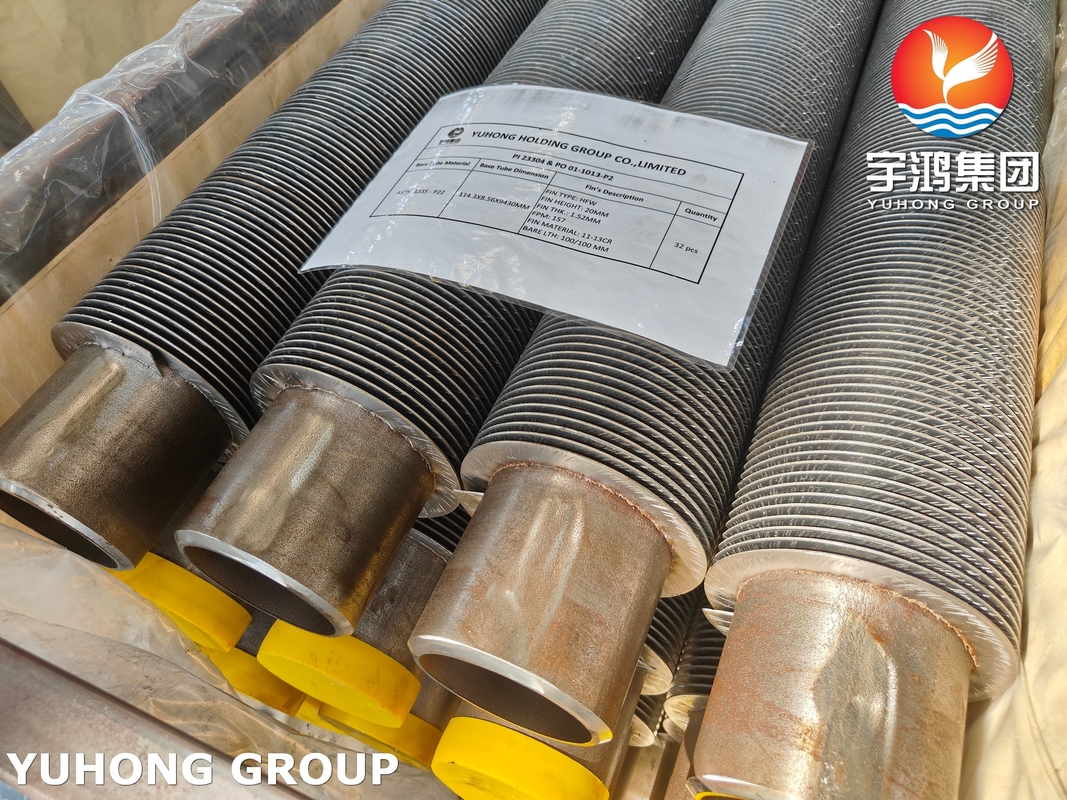

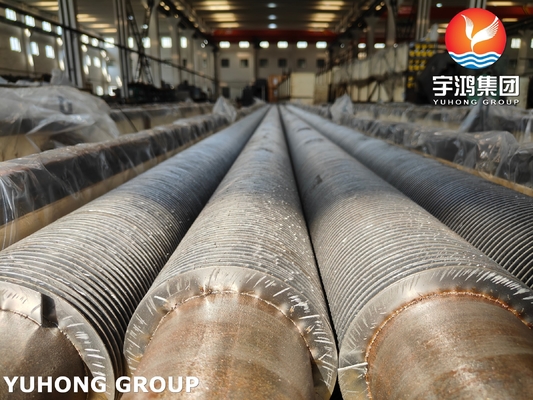

Helical Solid Fin Tube Fins ASTM A335 P22 11-13Cr For Air Preheaters Boiler

Product Overview

ASTM A335 P22 Helical Solid Finned Tube is a high-performance heat exchanger tube manufactured from seamless ferritic alloy steel. The helical solid fins on its exterior surface significantly increase surface area for enhanced heat transfer efficiency, making it ideal for power generation, petrochemical, and chemical processing applications.

Key Features and Benefits

Enhanced Heat Transfer: Helical fins increase surface area for superior thermal performance
Compact Design: Achieves higher heat transfer rates without increasing exchanger size
Durable Construction: Seamless ferritic alloy steel withstands high-temperature and high-pressure conditions
Corrosion Resistance: Excellent resistance to wear and corrosion in demanding environments

Material Specifications

Chemical Composition

Carbon (C): 0.05 - 0.15%
Manganese (Mn): 0.30 - 0.60%
Phosphorus (P): 0.025% max
Sulfur (S): 0.025% max
Silicon (Si): 0.50 - 1.00%
Chromium (Cr): 1.90 - 2.60%
Molybdenum (Mo): 0.87 - 1.13%

Mechanical Properties

Tensile Strength: 415 MPa (60,200 psi) minimum
Yield Strength: 205 MPa (29,800 psi) minimum
Elongation: 30% minimum
Hardness (HB): 163 maximum
Impact Strength: 35J (26 ft-lbf) minimum at -20°C (-4°F)

Industrial Applications

Heat Exchangers: Optimizes thermal transfer between fluids with enhanced surface area
Chemical Processing: Resists corrosion from aggressive fluids and gases
Power Generation: Used in boilers, steam generating tubes, and reheater tubes
Petrochemical Industry: Ideal for heat exchangers and condenser tubes
Automotive Systems: Improves thermal performance in exhaust systems
