ASTM A213 TP347H Alloy-Steel Solid Fin Tube For Boiler

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASTM A213 TP347H

Payment & Shipping Terms:

Minimum Order Quantity:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Delivery Time:	40-60 days
Payment Terms:	L/C,T/T
Supply Ability:	1000 tons/month

Contact Now Chat Now

Detailed Product Description

Product:	Fin Tube	Type:	High Frequency Welding / Helical Solid Fin Tubes
Base Tubes Standard:	ASTM A213	Material:	TP347H
Length:	According To Clients' Need	Size And Details:	According To Clients' Need
Use:	Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc	Packing:	Ply-wooden Case With Iron Frame
Highlight:	5052 Aluminum fin tube products , TP347H fin tube products , 5052 Aluminum 3 4 fin tube

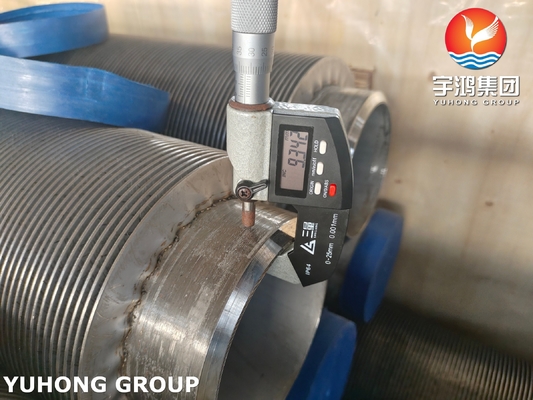

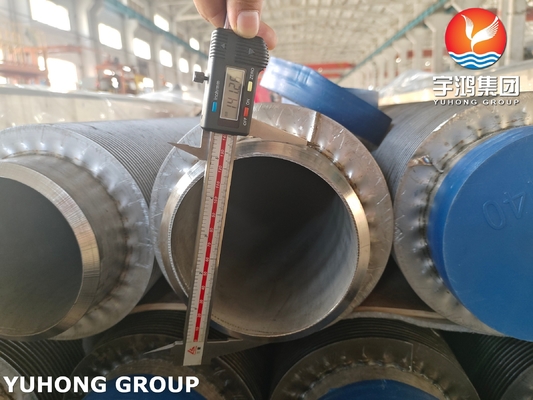

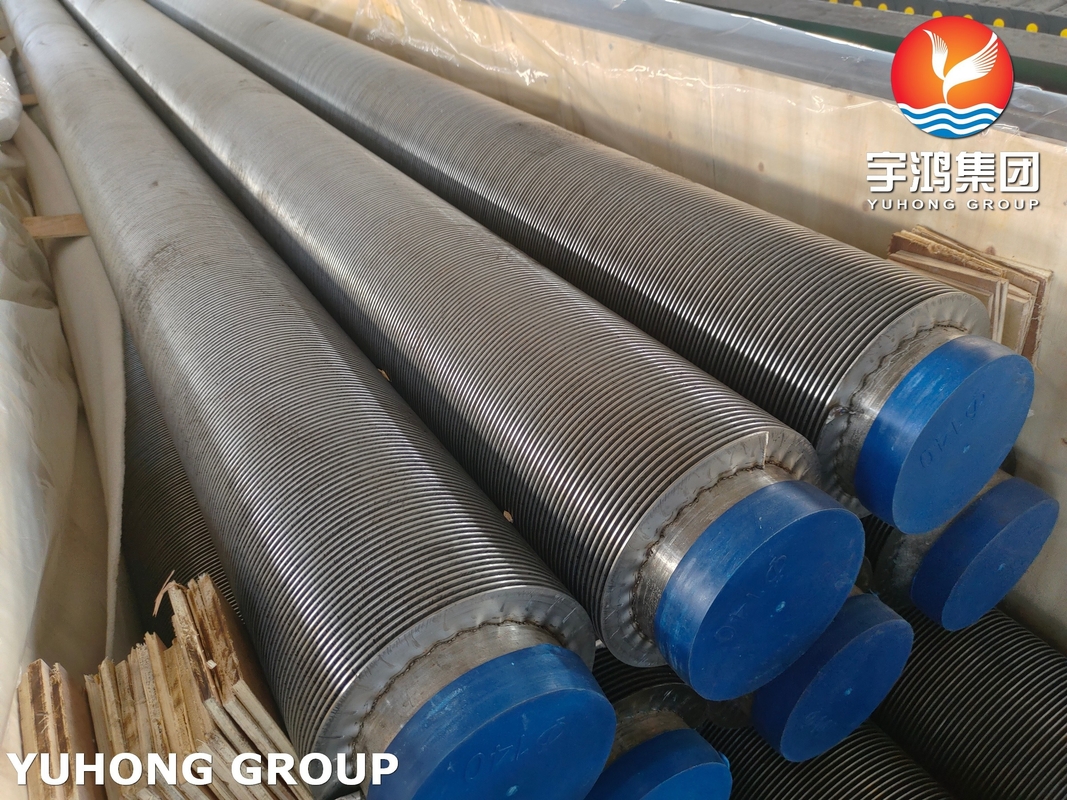

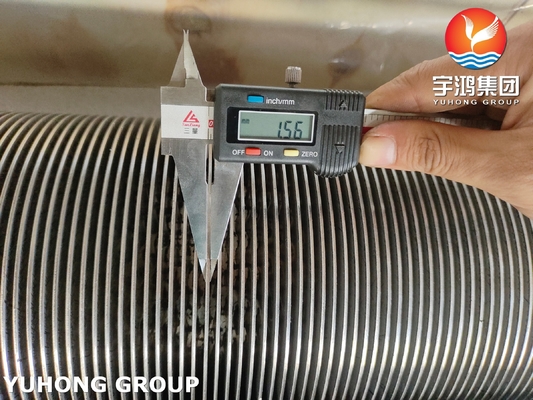

ASTM A213 TP347H Alloy-Steel Solid Fin Tube For Boiler

Product Overview

Helical solid fin tubes, also known as high frequency welding fin tubes, are manufactured using a specialized process that utilizes high-frequency electrical currents to fuse metal edges without additional filler materials.

Material Specifications

ASTM A213 TP347H (UNS S34709) are seamless austenitic steel tubes designed for applications in boilers, superheaters, and heat exchangers. Grades designated with 'H' provide superior creep-rupture strength at elevated temperatures.

Chemical Composition (%)

Grade	C	Mn	P	S	Si	Cr	Ni	Nb
TP347H	0.04-0.10	2.00	0.045	0.030	1.00	17.0-19.0	9.0-13.0	8×C-1.10

Mechanical Properties

Grade	Tensile Strength (min)	Yield Strength (0.2% Offset, min)	Elongation (min)	Hardness (max)
TP347H	75ksi (515 MPa)	30ksi (205 MPa)	35%	192 HBW / 200HV / 90 HRB

Product Advantages

Increased heat exchange area reduces heat transfer and metal flow
Excellent corrosion resistance, wear resistance, and thermal stability
Low contact thermal resistance with anti-ash capability
Reduces required installation space while maintaining high reliability
Enhanced stiffness and seismic performance

Applications

Ideal for power stations and high-temperature equipment in the oil industry, including:

Boilers and Steam Generators
Heat Exchangers and Furnaces
Economizers and Combustion Heaters
Large Air Coolers
Drier Heaters

Finned Tube Specifications

Type	Description	Base tube O.D. (mm)	Fin pitch (mm)	Fin height (mm)	Fin thickness (mm)
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
Low fin tube	T-type fin tube	10-38	0.6~2	<1.6	~0.3
Bamboo tube	Corrugated tube	16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL type fin tube	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
H/HH type	H/HH type fin tube	25-63	8~30	<200	1.5-3.5
Studed	Studed fin tube	25-219	8~30	5~35	φ5-20

Manufacturer Profile

As a leading Chinese manufacturer of fin tubes, we have extensive project experience in heat exchanger and boiler systems, marine applications, and oil & gas projects. Our products are exported to over 80 countries worldwide, supported by advanced production equipment and skilled technical staff.
