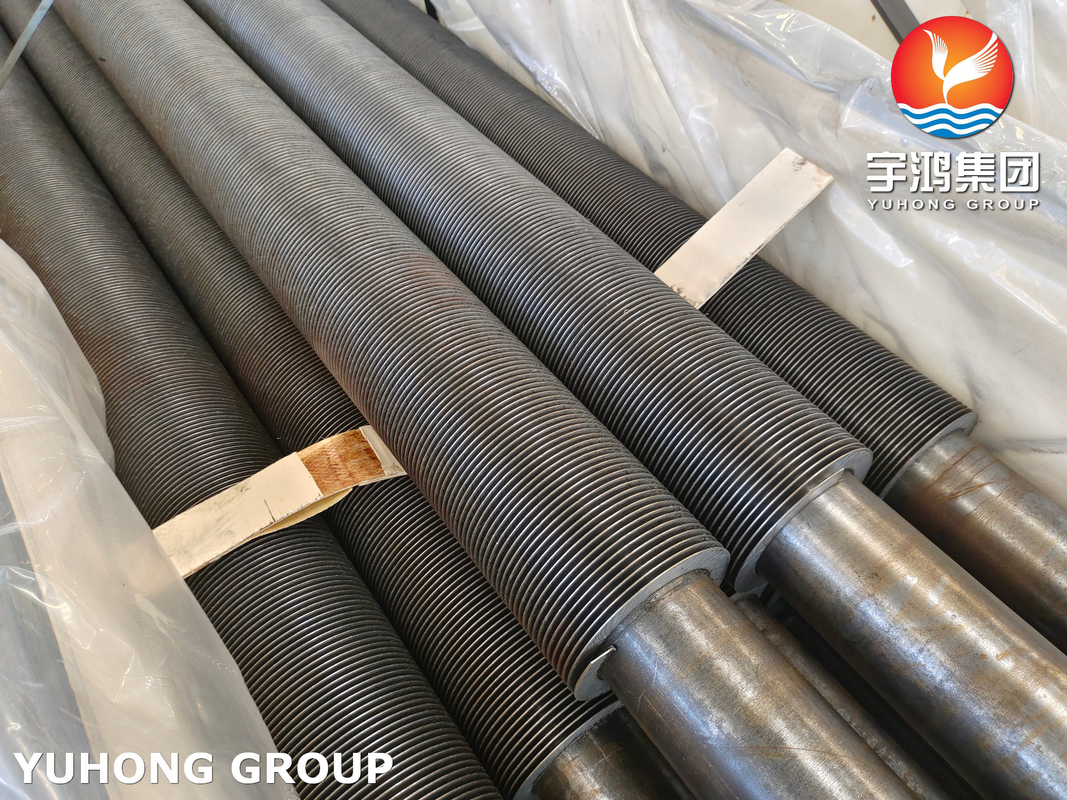

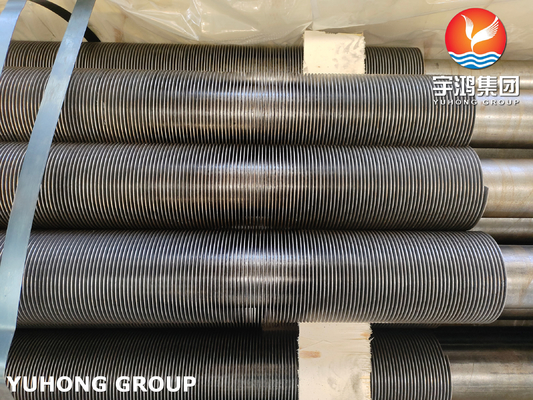

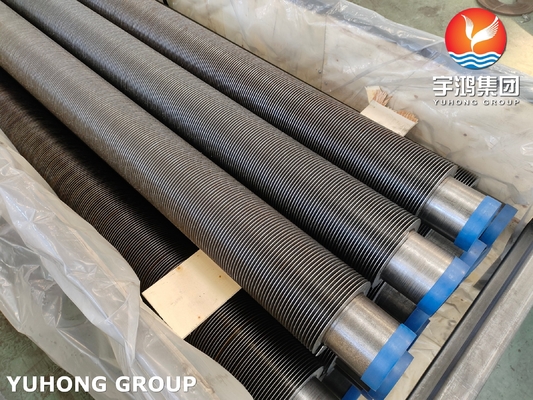

ASME SA106 Gr. B Carbon Steel Solid Fin Tube For Heaters

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASME SA106 Gr. B

Payment & Shipping Terms:

Minimum Order Quantity:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD

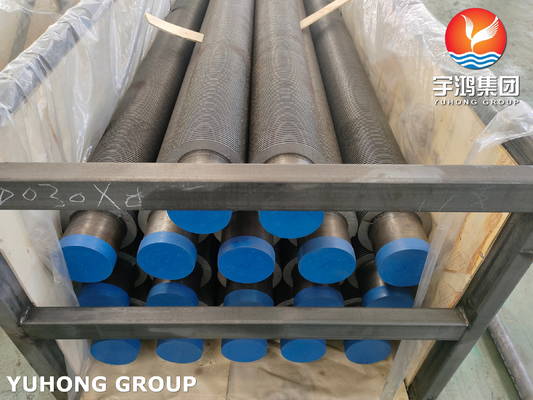

Packaging Details:	Ply-wooden Case With Iron Frame
Delivery Time:	40-60 days
Payment Terms:	L/C,T/T
Supply Ability:	1000 tons/month

Contact Now Chat Now

Detailed Product Description

Product:	Fin Tubes Or Finned Tube	Type:	High Frequency Welding Finned Tubes
Standard:	ASME SA106	Material:	Gr. B Base Pipes And CS Fins
Length:	According To Clients' Need	Size And Details:	According To Clients' Need
Use:	Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc	Packing:	Ply-wooden Case With Iron Frame
Highlight:	ODM cooling fins for pipe , ASME SA106 cooling fins for pipe , ODM finned tube coil heat exchangers

ASME SA106 Gr. B Carbon Steel Solid Fin Tube For Heaters

Product Description

High frequency welding fin tubes are specialized components manufactured using high-frequency electrical currents to fuse metal edges without filler materials. These ASME SA106 Gr. B carbon steel finned tubes offer excellent performance in heat transfer applications.

ASME SA106 Base Tube Details

ASME SA106 specification covers seamless carbon steel pipe for high-temperature service in sizes from NPS 1/8 to NPS 48 (DN 6 to DN 1200).

Chemical Composition (%)

Grade	C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
Gr. B	0.30	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08

Mechanical Properties

Grade	Tensile Strength (min)	Yield Strength (0.2% Offset, min)
Gr.B	60ksi (415 MPa)	35ksi (240 MPa)

Advantages of HFW Finned Tubes

Minimal heat affected zone with excellent weld microstructure
Large heat exchange area reduces heat transfer resistance
Corrosion and wear resistant with low contact thermal resistance
Compact design reduces required installation space
Lower tube side pressure drop reduces operating costs
Enhanced stiffness and seismic performance

Fin Tube Specifications

Type	Description	Base tube O.D. (mm)	Fin pitch (mm)	Fin height (mm)	Fin thickness (mm)
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3

Applications

These finned tubes are widely used in boilers, furnaces, driers, condensers, evaporators, steam coils, heat exchangers, waste heat recovery systems, various coolers, and heat pipe technology applications.

As a leading Chinese manufacturer of finned tubes, we have extensive experience supplying to over 80 countries for heat exchanger projects, marine applications, and oil & gas installations.
