Studded Tube ASTM A312 TP317L For Heat Exchanger

Product Details:

Place of Origin:	China,Korea
Brand Name:	YUHONG
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Delivery Time:	5---75 days
Payment Terms:	L/C,T/T
Supply Ability:	10000 tons/month

Contact Now Chat Now

Detailed Product Description

Base Pipe Standard:	ASTM A312 , ASME SA 312, ASTM A376, ASME SA376	Base Tube Material:	TP304, TP304L, TP304H, TP309, TP310, TP310H, TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H
Fin Type:	Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube	Application:	Boiler, Steam Heater, Fired Furnace, Fired Heater
Studded Tube Test:	Hammer Hitting Test	Studded Tube Length:	Max.: 34m /pc
Highlight:	ODM finned pipe , Stainless Steel finned pipe , A312 finned aluminum tubing

Studded Tube ASTM A312 TP317L For Heat Exchanger

Product Description

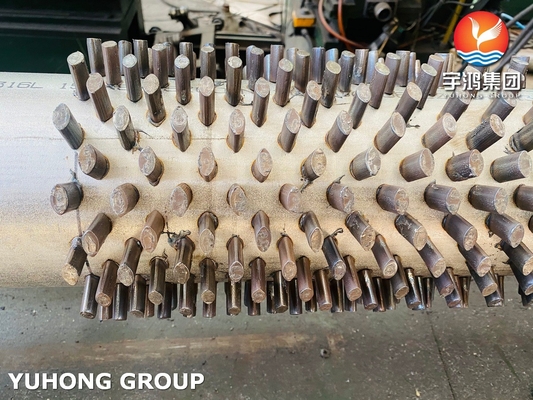

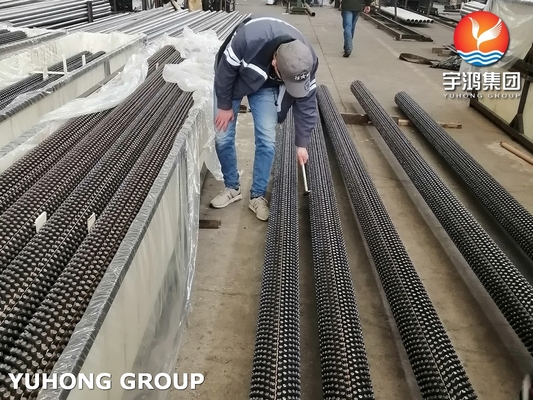

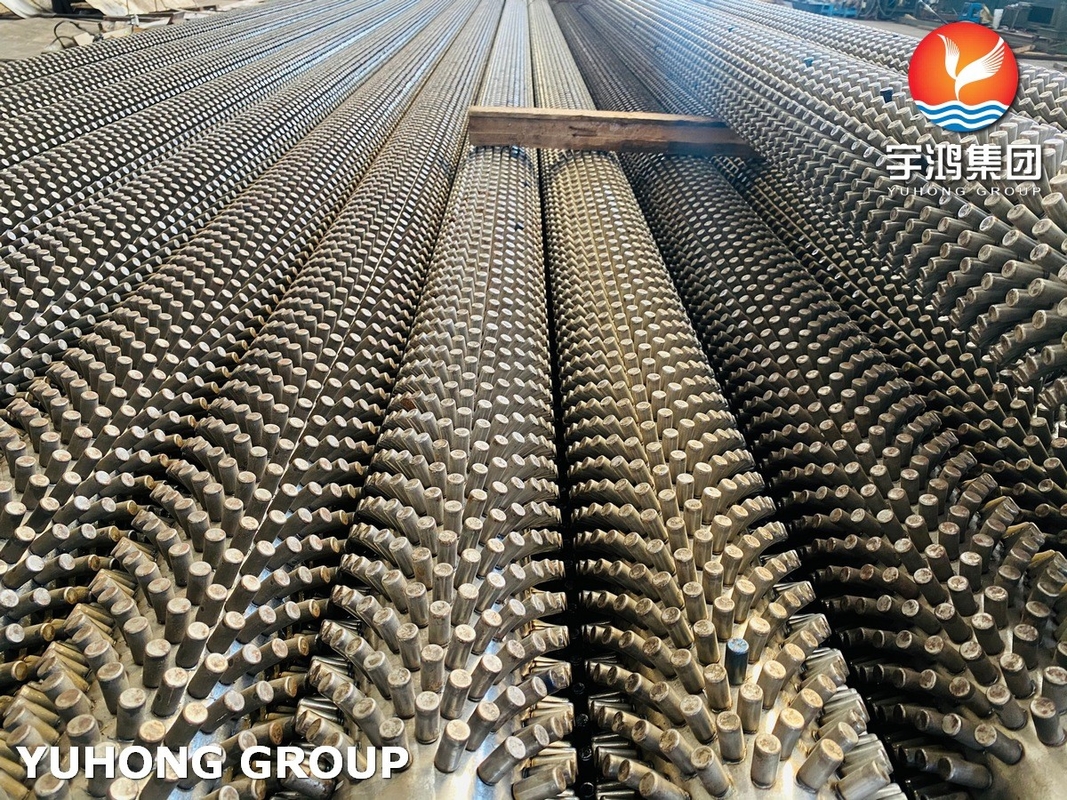

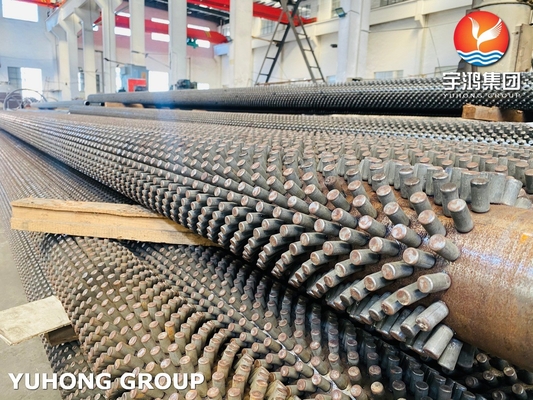

Studded fin tubes are heat exchanger tubes with metal studs or pins welded onto the surface, creating additional surface area for improved heat transfer efficiency in various industrial applications.

Dimensions

Base Tube / Core Tube O.D: 15.88 - 325mm
Fin Height: 6 - 50.8mm
Fin Thickness: 0.8 - 3.0mm
Fin Pitch: Customizable to customer requirements
End Types: Plain Ends / Beveled Ends
No Fin Area on Both Sides: Customizable per customer drawing

ASME SA312 TP317L Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Mo
≤0.035	≤1.0	≤2.0	≤0.045	≤0.03	18.0~20.0	11.0~15.0	3.0~4.0

ASME SA312 TP317L Tensile Test ASTM A370-20

Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥515	≥205	≥35

Manufacturing Advantages

20,000+ square meters workshop with 4 finning machines

Daily extrusion capacity up to 700m

Proximity to Shanghai Port (less than 2 hours' drive)

High rigidity for extreme temperature and pressure conditions

Applications

Air Cooler • Charge Air Chiller • Condenser • Evaporator • Fluid Cooler • Gas Cooler • Oil Cooler • Radiator • Refrigeration • Steam to Air Heat Exchanger • Superheater
