Long Radius S32205 SS Pipe Bend Stainless Steel U Bend PMI Testing

Long Radius S32205 SS Pipe Bend Stainless Steel U Bend PMI Testing

  • Long Radius S32205 SS Pipe Bend Stainless Steel U Bend PMI Testing
  • Long Radius S32205 SS Pipe Bend Stainless Steel U Bend PMI Testing
  • Long Radius S32205 SS Pipe Bend Stainless Steel U Bend PMI Testing
  • Long Radius S32205 SS Pipe Bend Stainless Steel U Bend PMI Testing
Long Radius S32205 SS Pipe Bend Stainless Steel U Bend PMI Testing
Product Details:
Place of Origin: China , Korea
Brand Name: YUHONG
Certification: ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number: 180 DEG. ELBOW
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 1 - 10000 USD
Packaging Details: Ply-Wooden Case
Delivery Time: 5 - 90 Days
Payment Terms: L/C, T/T
Supply Ability: 10000 Tons/Month
Contact Now Chat Now
Detailed Product Description
Material: WP-S UNS S32205 Standard: ASTM A815
Radius: LR ( Long Radius ) , SR ( Short Radius ) Testing: UT , PT , PMI
Size: 1/2 Inch - 98 Inch Application: Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section
Highlight:

S32205 ss pipe bend

,

Long Radius ss pipe bend

,

Long Radius stainless steel u bend

Long Radius S32205 SS Pipe Bend Stainless Steel U Bend with PMI Testing
Product Specifications
Attribute Value
Material WP-S UNS S32205
Standard ASTM A815
Radius LR (Long Radius), SR (Short Radius)

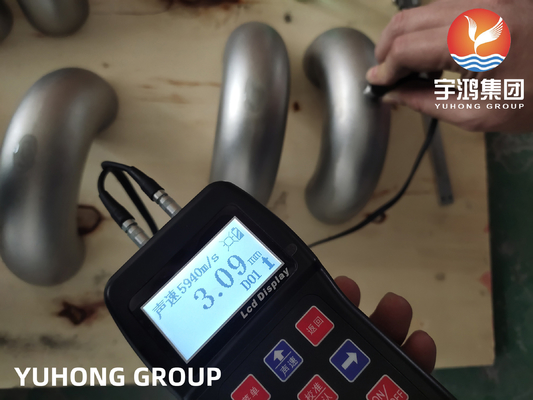

Testing UT, PT, PMI
Size 1/2 inch - 98 inch
Application Heat Exchanger, Boiler, Furnace, Fired Heater, Convection Section
Product Description

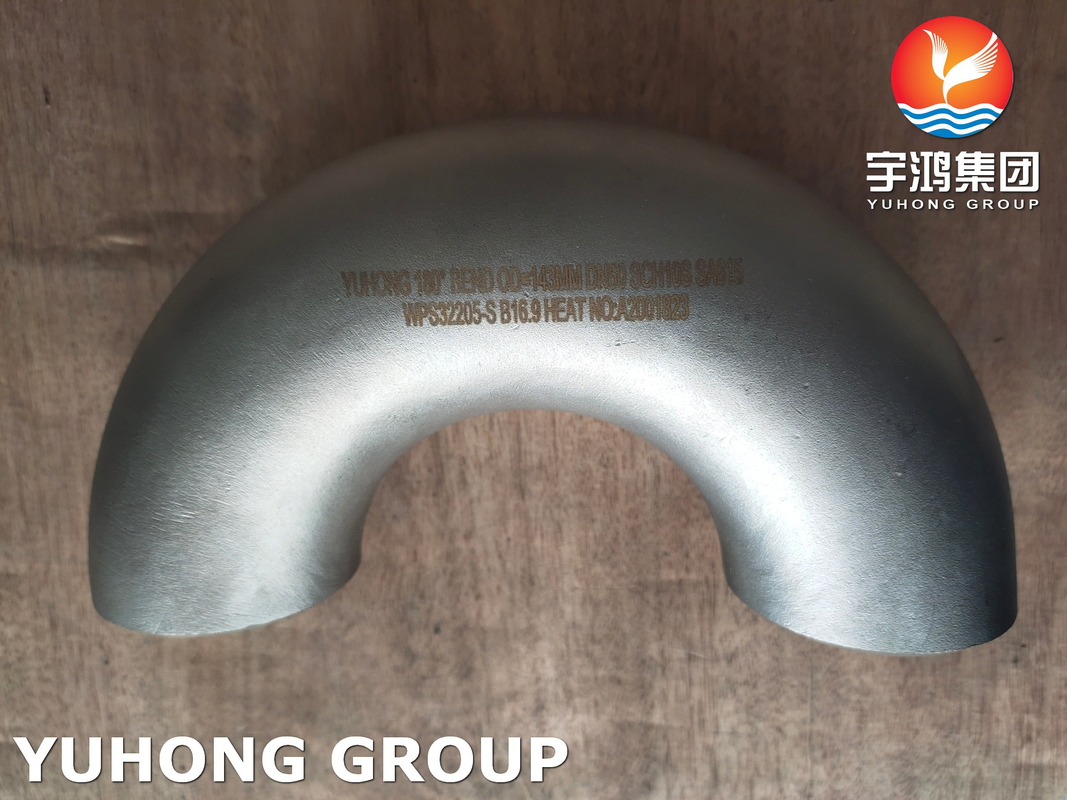

ASTM A815 WP-S S32205 Duplex Steel U Bend Return is designed for Heat Exchanger & Boiler applications. Grade 32205, also known as Duplex 2205 or UNS S32205, is a nitrogen-enhanced duplex stainless steel characterized by high strength, excellent corrosion resistance, and good weldability. This alloy combines the desirable properties of both austenitic and ferritic stainless steels, making it ideal for demanding industrial applications.

Key Features
  • Can sustain high pressure & temperature load
  • Ensures excellent stress distribution
  • Excellent general corrosion resistance and high strength
  • Good sulfide stress corrosion resistance
  • Good resistance to chloride pitting and crevice corrosion
  • High resistance to chloride stress corrosion cracking
Chemical Composition
C Mn Si N P Cr Fe Ni S Mo
0.03 max 2.00 max 1.00 max 0.8 to 0.20 0.030 max 21.0 to 23.0 63.54 min 4.50 to 6.50 0.02 max 2.50 to 3.50
Mechanical Properties
Grade UNS S32205
Yield Strength min. MPa [ksi] 450 [65]
Tensile Strength min. MPa [ksi] 655 [95]
Elongation in 2" min. % 20
HBW, max 290
Industrial Applications
  • Boiler & Heat Exchangers
  • Paper & Pulp Plant
  • High Pressure Applications
  • Chemical Refinery
  • Pipeline Equipments
  • Oil and Gas Industry
  • Nuclear Power Plants
  • Food Processing and Dairy Industries
Long Radius S32205 SS Pipe Bend Stainless Steel U Bend PMI Testing 0
