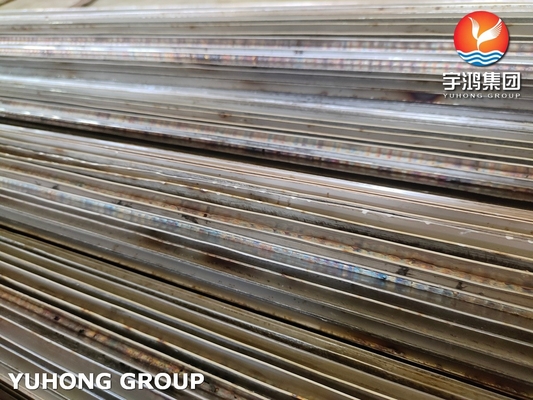

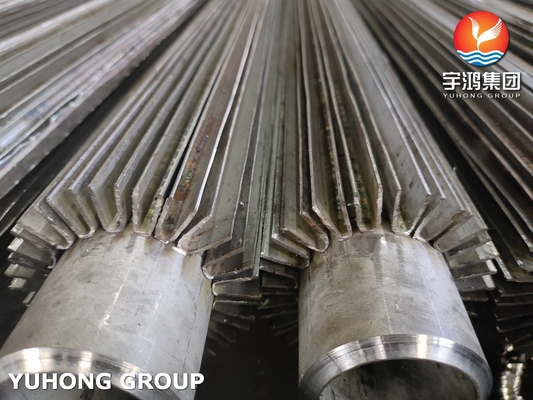

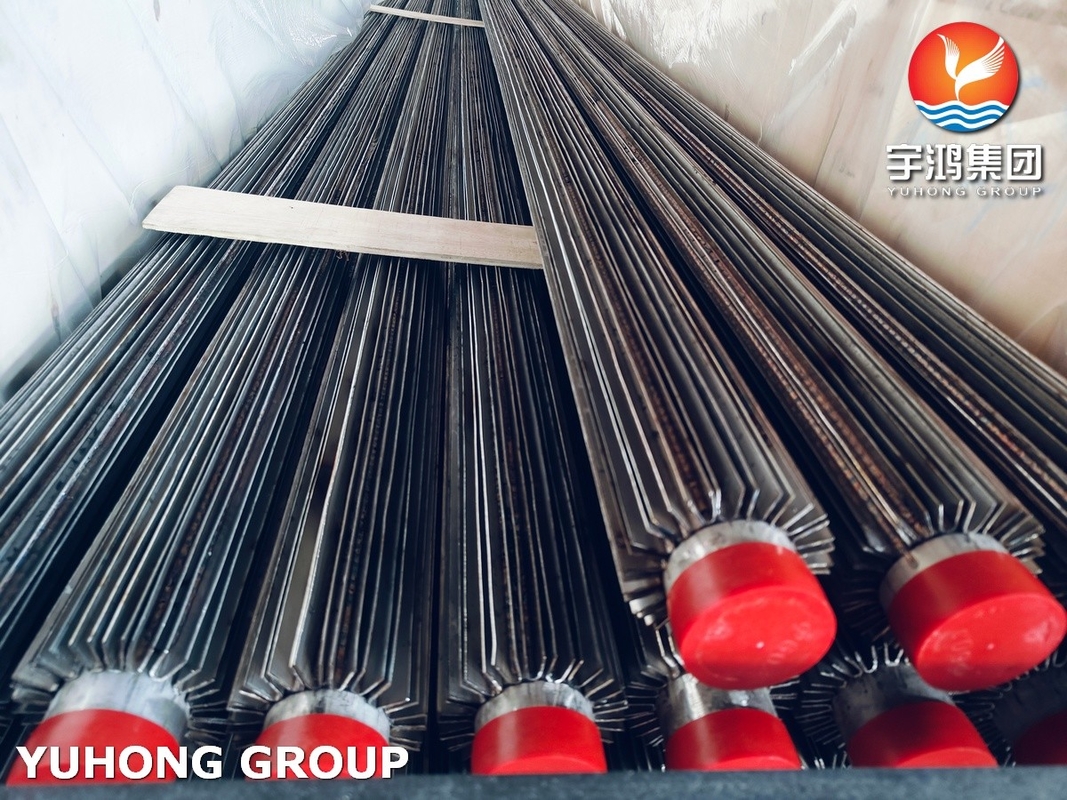

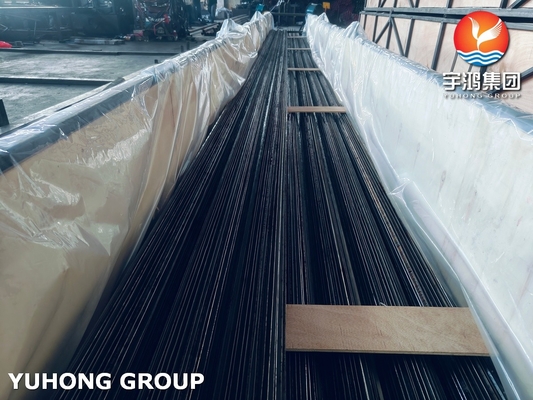

HVAC Cold Drawn Fin Tube Cooler Finned Tubular Heating Longitudinal Welding

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	Longitudinal Finned Tube , Longitudinal Welding Fin tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Delivery Time:	5 - 75 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material:	TP316L	Base Tube Standard:	ASTM A213 , ASME SA213
Fin Type:	Longitudinal Finned Tube , Longitudinal Welding Fin Tube	Fin Qty:	..., 16U , 18U, 20U, 22U ,...
Fin Tube Length:	20m/pc	Application:	HVAC Systems, Refrigeration Units, Industrial Heat Exchangers, Boiler, Air Cooler, Power Plant
Highlight:	HVAC fin tube cooler , Cold Drawn fin tube cooler , Cold Drawn finned tubular heating

HVAC Cold Drawn Fin Tube Cooler Finned Tubular Heating Longitudinal Welding

Product Specifications

Attribute	Value
Base Tube Material	TP316L
Base Tube Standard	ASTM A213, ASME SA213
Fin Type	Longitudinal Finned Tube, Longitudinal Welding Fin tube
Fin Quantity	..., 16U, 18U, 20U, 22U, ...
Fin Tube Length	20m/pc
Application	HVAC systems, Refrigeration units, Industrial heat exchangers, Boiler, Air cooler, Power Plant

Product Description

ASTM A213 TP316L Longitudinal Welding Fin Tube is a specialized heat transfer component manufactured from TP316L stainless steel, renowned for its exceptional corrosion resistance, particularly in chloride-rich environments. The longitudinal fin design, with fins running parallel to the tube, significantly enhances heat transfer efficiency by increasing the surface area. The low carbon content of TP316L minimizes carbide precipitation, improving weldability and resistance to intergranular corrosion.

Chemical Composition

Grade	Cr	Ni	Mo	C
TP316L	16.0-18.0%	10.0-14.0%	2.0-3.0%	≤ 0.03%

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP316L	≥ 170 MPa (25 ksi)	≥ 485 MPa (70 ksi)	≥ 35% in 50 mm	Typically ≤ 90HRB

Industry Applications

Chemical Processing: Heat exchangers and reactors handling corrosive chemicals at high temperatures, ensuring consistent performance and longevity.
Food and Beverage Industry: Pasteurizers and sterilizers requiring high corrosion resistance to maintain hygiene and safety standards.
Pharmaceutical Industry: Process heaters and coolers demanding stringent cleanliness and corrosion resistance for precise temperature control.
Desalination Plants: Evaporator tubes handling saline solutions with exceptional durability and corrosion resistance.
Marine Applications: Heat exchangers operating in high-chloride environments, resistant to pitting and crevice corrosion.
