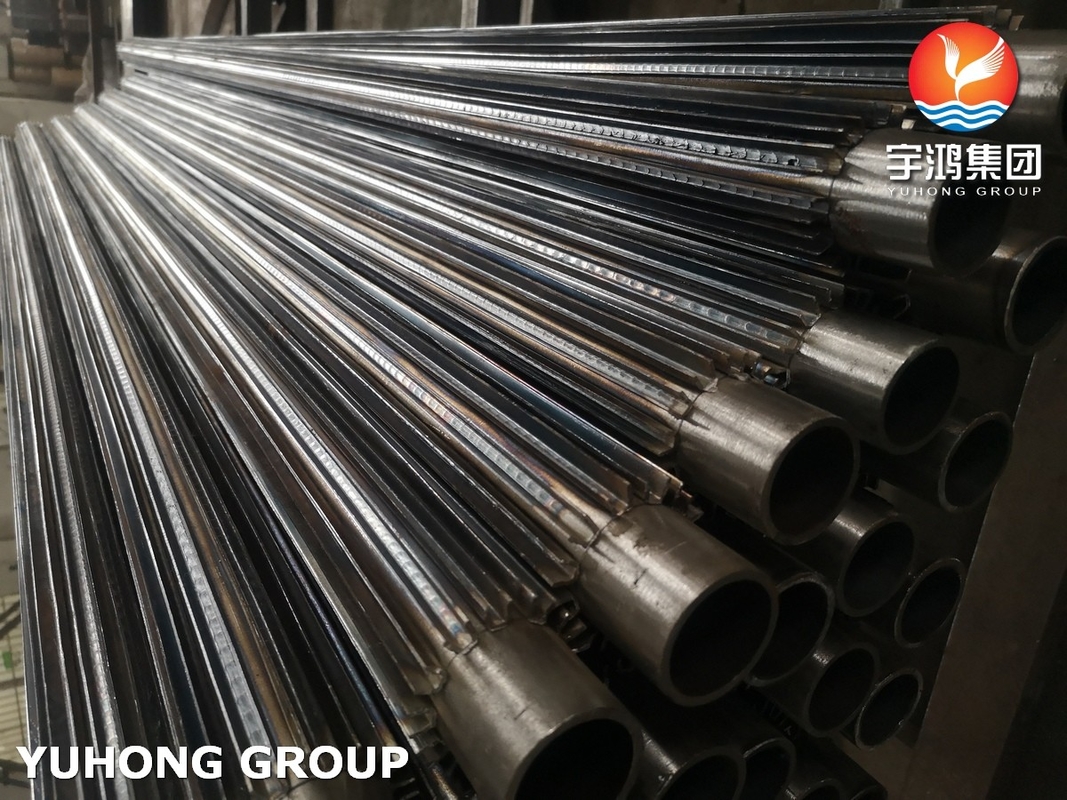

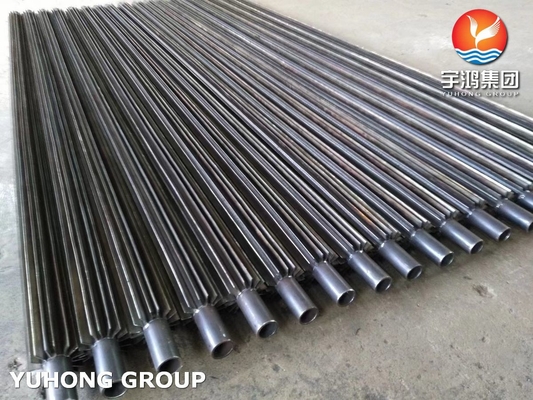

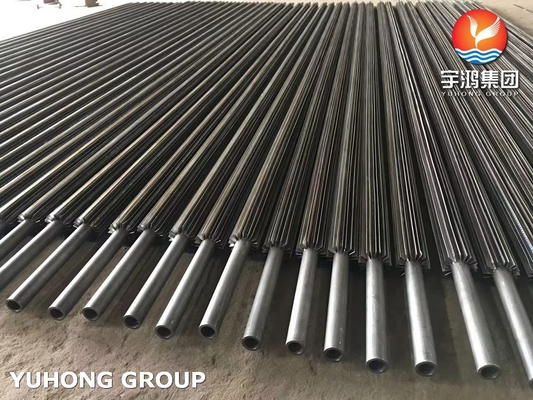

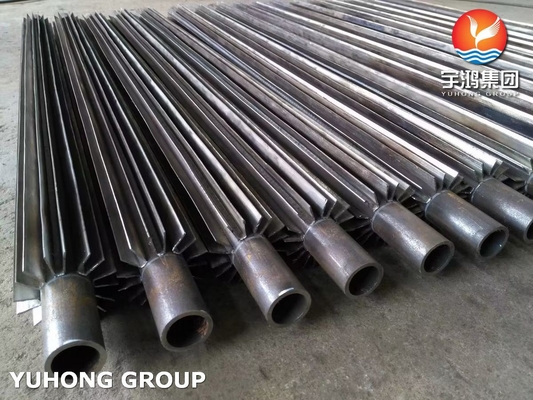

OEM Longitudinal Gilled Tube Finned Pipe Radiator For Heat Recovery Systems

Product Details:

Place of Origin:	China,Korea
Brand Name:	YUHONG
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	Longitudinal Finned Tube , Longitudinal Welding Fin tube

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Delivery Time:	5---75 days
Payment Terms:	L/C, T/T
Supply Ability:	10000 tons/month

Contact Now Chat Now

Detailed Product Description

Base Tube Material:	ASTM A106 GR.B	Fin Material:	Carbon Steel
Fin Type:	Longitudinal Finned Tube , Longitudinal Welding Fin Tube	Fin Qty:	..., 16U , 18U, 20U, 22U ,...
Fin Tube Length:	20m/pc	Application:	HVAC Systems, Refrigeration Units, Industrial Heat Exchangers, Boiler, Air Cooler, Power Plant
Highlight:	OEM gilled tube , heat recovery gilled tube , Gilled finned pipe radiator

OEM Longitudinal Gilled Tube Finned Pipe Radiator For Heat Recovery Systems

Product Specifications

Base Tube Material	ASTM A106 GR.B
Fin Material	Carbon steel
Fin Type	Longitudinal Finned Tube, Longitudinal Welding Fin tube
Fin Quantity	..., 16U, 18U, 20U, 22U,...
Fin Tube Length	20m/pc
Application	HVAC systems, Refrigeration units, Industrial heat exchangers, Boiler, Air cooler, Power Plant

Product Description

The Longitudinal Finned Tube with ASTM A106 GR.B base and carbon steel fin is a high-performance heat exchanger component designed for power plant applications and other industrial processes requiring efficient thermal transfer.

These specialized tubes feature longitudinal fins welded to the outer surface, significantly increasing the heat transfer area. This design enhancement improves thermal performance and energy efficiency in critical systems.

Key Applications

Heat Exchangers: Essential for HVAC systems, refrigeration units, and industrial heat exchangers to optimize thermal performance
Boilers: Enhances heat transfer efficiency for improved energy utilization
Air Coolers: Increases cooling efficiency through expanded surface area
Oil & Gas Industry: Used in heat recovery systems, process heaters, and petrochemical heat exchangers
Power Plants: Critical for condensers, heat exchangers, and power generation systems
