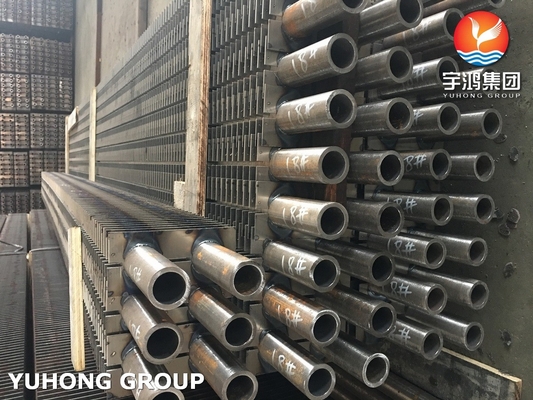

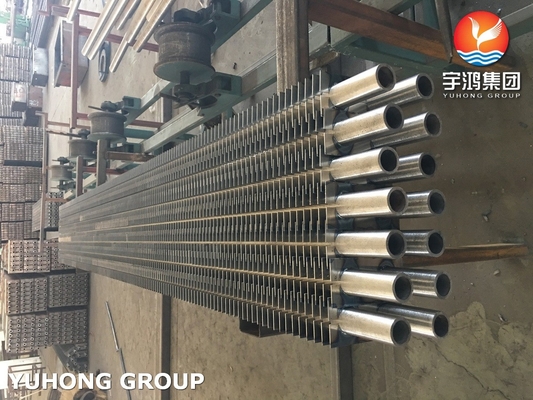

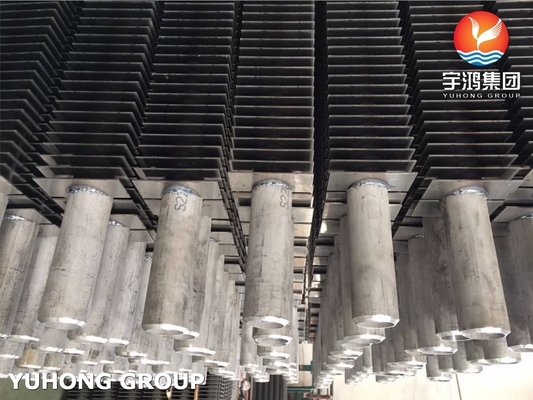

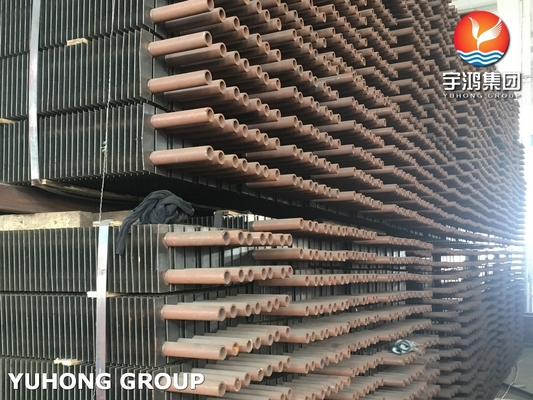

AD2000 Standard Micro Square Fin Tube Coil For Air Cooled Heat Exchangers H Type

Rectangular fin tubes are specialized heat exchanger components featuring rectangular-shaped fins attached to the outer surface of a base tube. This design significantly increases the surface area for heat transfer, enhancing the overall efficiency of thermal exchange processes.

These precision-engineered rectangular fins are typically welded, extruded, or mechanically bonded to the base tube. The fins are arranged in a structured rectangular pattern, optimizing heat dissipation and absorption performance.

The base tube is manufactured from durable materials including carbon steel, stainless steel, or copper alloys. Fins are commonly made from high thermal conductivity materials such as aluminum or copper to maximize heat transfer efficiency.

• Symmetrical half-piece fin design with tube wall pressed from both sides
• Precision resistance welding with controlled gap spacing
• Flexible configuration options: single tube H-shaped fins or double tube shared fin arrangements
• Orderly arranged tube bundles for compact heat exchanger assembly

• Enhanced Thermal Efficiency: Rectangular fin geometry provides maximum surface area for optimal heat transfer
• Superior Structural Integrity: Robust design resists deformation better than conventional fin shapes
• Maintenance Friendly: Parallel, independent fin arrangement simplifies cleaning and ash removal

These high-performance fin tubes are ideally suited for:

• Air-cooled heat exchangers in industrial processes
• High-efficiency radiator systems
• Demanding industrial cooling applications
• Systems requiring structured fin designs for specific airflow patterns
