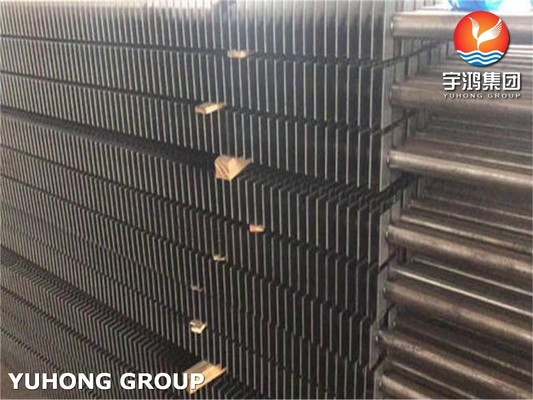

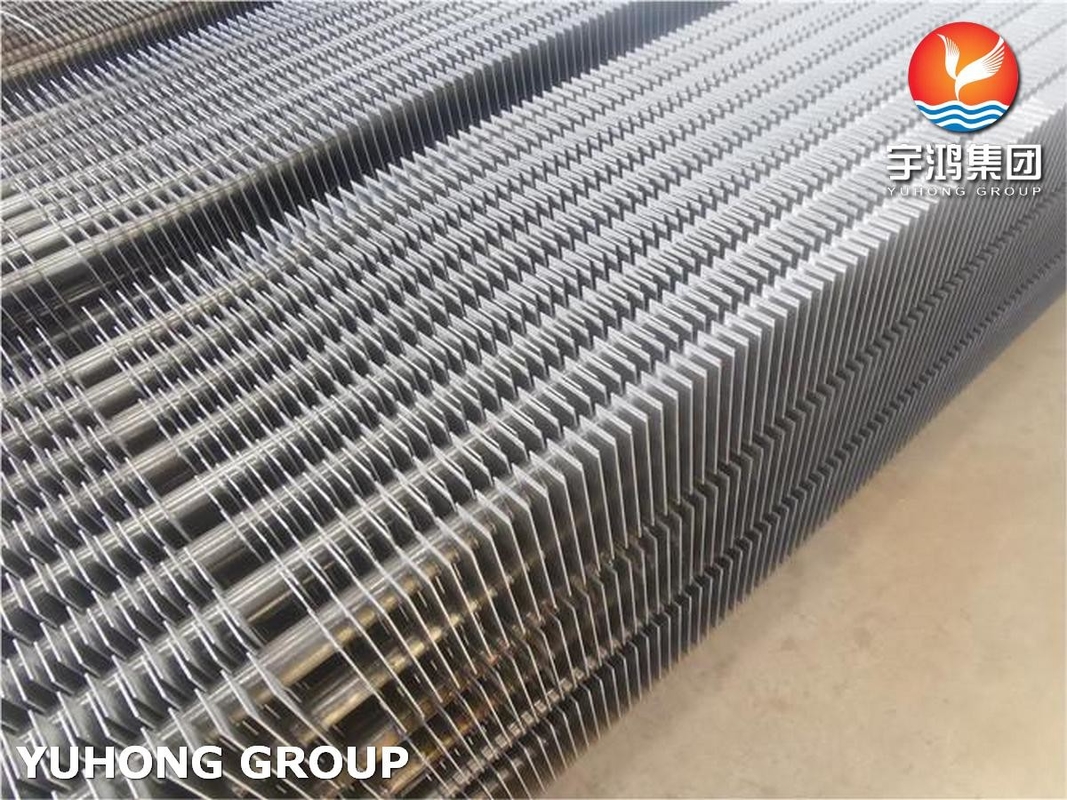

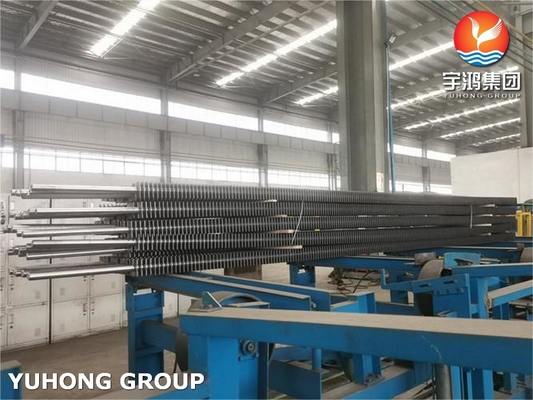

Heat Recovery Robust Serrated Microfin Tubes SA213 TP316 ASME

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	H Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Material Grade:	TP316	Standard:	ASME SA213 , ASTM A213
Material:	Carbon Steel, Alloy Steel And Stainless Steel	Type Of Base Pipe:	Seamless Steel Pipe
Type Of Fins:	Single H / Double H Type	Application:	Widely Used For Boiler, Heat Exchanger, Condenser, Refrigerator, Economizer And Other Parts Of Heat Industry.
Highlight:	TP316 microfin tubes , robust microfin tubes , robust serrated fin tube

Heat Recovery Robust Serrated Microfin Tubes SA213 TP316 ASME

Product Specifications

Attribute	Value
Material Grade	TP316
Standard	ASME SA213, ASTM A213
Material	Carbon steel, Alloy steel and Stainless steel
Type of base pipe	Seamless steel pipe
Type of fins	Single H / Double H Type
Application	Widely used for boiler, heat exchanger, condenser, refrigerator, economizer and other parts of heat industry

Product Overview

The ASME SA213 TP316 H Type Boiler Fin Tube Economizer is an essential component in industrial systems designed to recover waste heat energy. These tubes are engineered for high efficiency and durability in economizers and other heat recovery systems.

Chemical Composition

Grade	Cr	Ni	Mo	C	Mn	Si	P	S
TP316	16.0-18.0%	10.0-14.0%	2.0-3.0%	0.08% max	2.0% max	1.0% max	0.045% max	0.030% max

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP316	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm (2 inches)	≤ 90 HRB

Key Features

Material: Constructed from ASME SA213 TP316 stainless steel, known for excellent corrosion resistance and high-temperature strength
Seamless Construction: Provides uniform strength, reducing the risk of leaks and enhancing reliability
H Type Fin Design: Increases surface area significantly, optimizing heat transfer efficiency
Durability: Offers long service life with minimal maintenance due to robust material properties

Applications

Economizers: Recover residual heat from exhaust gases, preheating the feedwater and improving overall thermal efficiency
Heat Exchangers: Enhance energy recovery in power generation and industrial processes
Industrial Boilers: Increase efficiency and reduce fuel consumption in various industrial applications
